products

LC SMF Fiber Optic Transceiver 10G SFP+ ZR 1550nm 80KM

Basic Information
Place of Origin: China
Brand Name: Hello Signal
Certification: IEC 60825-1:2007
Model Number: 10G SFP+
Minimum Order Quantity: no limit
Packaging Details: 10 PC/Plastic Bag
Delivery Time: Normally 10 workingdays
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Form Factor: SFP+ Max Data Rate: 11.3 Gbps
Wavelength: 1550nm Max Cable Distance1: 80km
Connector Type: Duplex LC Fiber Cable Type: SMF
Operating Temp.: 0°C To 70°C (32°F To 158°F)
High Light:

Fiber Optic Transceiver 10G SFP+ ZR

,

10G SFP+ ZR 1550nm

,

80KM 10G SFP+ ZR


Product Description

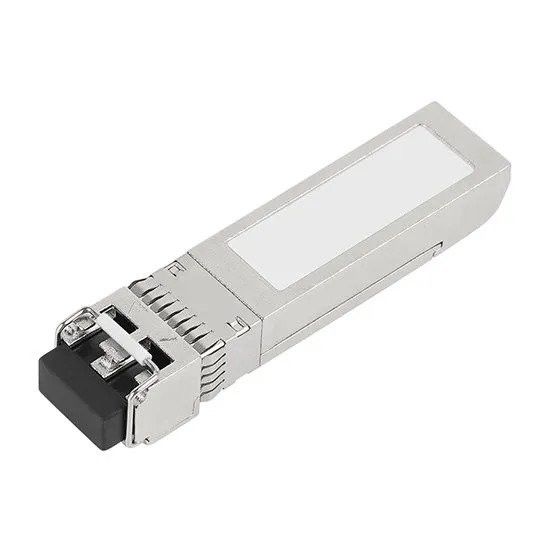

10G SFP+ ZR 1550nm 80KM LC SMF Fiber Optic Transceiver

Zion Code and Description

Zion Code Zion Description
7213040 10G SFP+ ZR 1550nm 80KM LC SMF Fiber Optic Transceiver

Applications

  • 10G Base-ZR/ZW
  • 10G SONET/SDH, OTU2/2e

STANDARD

  • Compliant to SFP+ SFF-8431
  • Compliant with SFF-8427
  • Compliant with IEEE 802.3ae 10GBASE-ZR and 10GBASE-ZW
  • Compliant with IEC 60825-1 Class 1 laser eye safe
  • RoHS Compliant.

Description

7213040 10G SFP+ ZR compatible SFP+ transceiver supports up to 80Km link lengths over SMF via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc

Main product parameters

Form Factor SFP+ Vendor Name Zion Communication
Wavelength 1550nm Max Data Rate 11.3 Gbps
Max Cable Distance 80km Connector type Duplex LC
Fiber cable Type SMF
Transimitter Type EML Receiver Type APD
Transmit Power 0~4 dBm Receiver sensitivity -23 ~-6 dBm
DDM Supported Operating Temp. 0°C to 70°C (32°F to 158°F)

Zion Communication’s Hot 10G transceiver types

Zion Code Zion Description
7213010 10G SFP+ SR 850nm 300M LC MMF Fiber Optic Transceiver
7213020 10G SFP+ LR 1310nm 10KM LC SMF Fiber Optic Transceiver
7213030 10G SFP+ ER 1550nm 40KM LC SMF Fiber Optic Transceiver
7213040 10G SFP+ ZR 1550nm 80KM LC SMF Fiber Optic Transceiver
7213050 10G SFP+ BIDI LR 1270/1330nm 10KM LC SMF Fiber Optic Transceiver
7213060 10G SFP+ BIDI LR 1270/1330nm 20KM LC SMF Fiber Optic Transceiver
7213070 10G SFP+ BIDI ER 1270/1330nm 40KM LC SMF Fiber Optic Transceiver
7213080 10G SFP+ BIDI ER 1270/1330nm 60KM LC SMF Fiber Optic Transceiver
7213090 10G SFP+ BIDI ZR 1490/1550nm 80KM LC SMF Fiber Optic Transceiver
7213110 10G SFP+ CWDM 10KM LC SMF Fiber Optic Transceiver
7213120 10G SFP+ CWDM 20KM LC SMF Fiber Optic Transceiver
7213130 10G SFP+ CWDM 40KM LC SMF Fiber Optic Transceiver
7213140 10G SFP+ CWDM 80KM LC SMF Fiber Optic Transceiver
7213210 10G SFP+ DWDM 40KM LC SMF Fiber Optic Transceiver
7213220 10G SFP+ DWDM 80KM LC SMF Fiber Optic Transceiver
