10G SFP+ SR Fiber Optic Transceiver with 850nm Wavelength and 300m OM3 MMF Distance

Basic Information

Place of Origin:	China
Brand Name:	Hello Signal
Certification:	IEC 60825-1:2007
Model Number:	10G SFP+

Minimum Order Quantity:	no limit
Packaging Details:	10 PC/Plastic Bag
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Form Factor:	SFP+	Wavelength:	850nm
Max Cable Distance1:	300m On OM3 MMF	Max Cable Distance2:	400m On OM4 MMF
Connector Type:	Duplex LC	Fiber Cable Type:	MMF
Max Data Rate:	10 Gbps
Highlight:	Fiber Optic Transceiver 10G SFP+ SR , Fiber Optic 10G SFP+ SR Transceiver , 850nm 10G SFP+ SR Transceiver

Product Description

Fiber Optic 10G SFP+ SR Transceiver 850nm 300M LC MMF

High-performance 10G SFP+ SR transceiver operating at 850nm wavelength with 300M reach over LC multimode fiber connections.

Product Identification

Zion Code	Zion Description
7213010	10G SFP+ SR 850nm 300M LC MMF Fiber Optic Transceiver

Applications

10GBASE-SR/SW 10G Ethernet

Compliance Standards

Compliant with SFF-8472 SFP+
Compliant to SFP+ SFF-8431
Compliant to 3ae 10GBASE-SR
RoHS Compliant

Product Overview

The 7213010 10G SFP+ SR compatible transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface as specified in SFF-8472. Each module is individually tested for compatibility with Cisco switches, routers, servers, and network interface cards. Featuring low power consumption and high-speed performance, this transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, and radio/baseband units.

Technical Specifications

Parameter	Specification	Parameter	Specification
Form Factor	SFP+	Vendor Name	Zion Communication
Wavelength	850nm	Max Cable Distance 1	300m on OM3 MMF
Max Cable Distance 2	400m on OM4 MMF	Connector Type	Duplex LC
Fiber Cable Type	MMF	Max Data Rate	10 Gbps
Transmitter Type	VCSEL	Receiver Type	PIN
Transmit Power	-7.3~-1 dBm	Receiver Sensitivity	-11.1 dBm
Power Consumption	≤0.6W	Extinction Ratio	＞ 3.0 dB
DDM	Supported	Operating Temperature	0°C to 70°C (32°F to 158°F)

Product Images

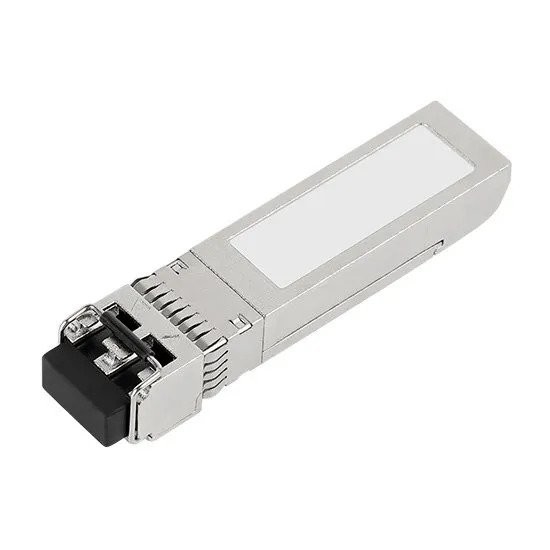

Front View

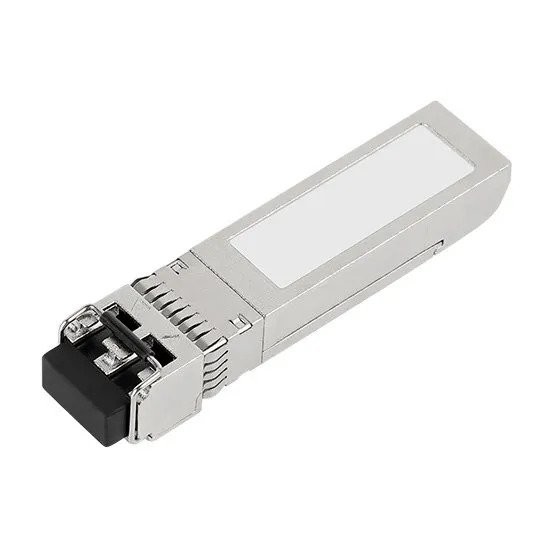

Side View

Related 10G Transceiver Products

Zion Code	Zion Description
7213010	10G SFP+ SR 850nm 300M LC MMF Fiber Optic Transceiver
7213020	10G SFP+ LR 1310nm 10KM LC SMF Fiber Optic Transceiver
7213030	10G SFP+ ER 1550nm 40KM LC SMF Fiber Optic Transceiver
7213040	10G SFP+ ZR 1550nm 80KM LC SMF Fiber Optic Transceiver
7213050	10G SFP+ BIDI LR 1270/1330nm 10KM LC SMF Fiber Optic Transceiver
7213060	10G SFP+ BIDI LR 1270/1330nm 20KM LC SMF Fiber Optic Transceiver
7213070	10G SFP+ BIDI ER 1270/1330nm 40KM LC SMF Fiber Optic Transceiver
7213080	10G SFP+ BIDI ER 1270/1330nm 60KM LC SMF Fiber Optic Transceiver
7213090	10G SFP+ BIDI ZR 1490/1550nm 80KM LC SMF Fiber Optic Transceiver
7213110	10G SFP+ CWDM 10KM LC SMF Fiber Optic Transceiver
7213120	10G SFP+ CWDM 20KM LC SMF Fiber Optic Transceiver
7213130	10G SFP+ CWDM 40KM LC SMF Fiber Optic Transceiver
7213140	10G SFP+ CWDM 80KM LC SMF Fiber Optic Transceiver
7213210	10G SFP+ DWDM 40KM LC SMF Fiber Optic Transceiver
7213220	10G SFP+ DWDM 80KM LC SMF Fiber Optic Transceiver
