| Place of Origin: | China |
|---|---|
| Brand Name: | Hello Signal |
| Certification: | IEC 60825-1:2007 |
| Model Number: | 40G QSFP+ |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC/Plastic Bag |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Form Factor: | QSFP+ | Max Data Rate: | 41.2 Gbps (4×10.3 Gbps) |
|---|---|---|---|
| Wavelength: | 1310nm | Center Wavelength: | 1271,1291,1311,1331nm |
| Max Cable Distance2: | 40KM | Connector Type: | Duplex LC |
| Fiber Cable Type: | SMF | ||
| High Light: | 40G QSFP+ ER4 CWDM,40G QSFP+ ER4 40KM,Fiber Optic Transceiver QSFP+ ER4 40KM |
||

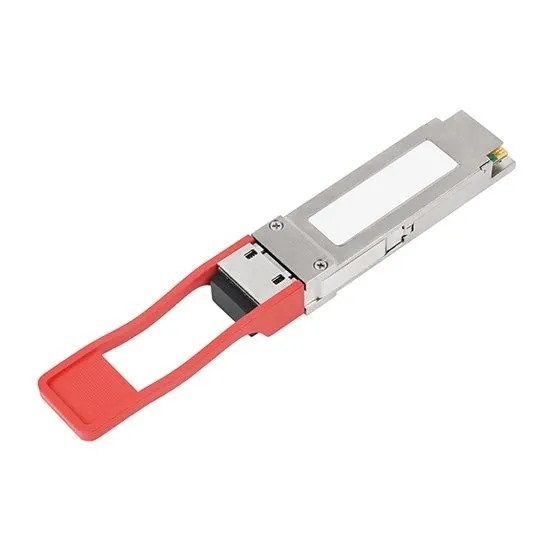

40G QSFP+ ER4 CWDM 40KM LC SMF Fiber Optic Transceiver
| Zion Code | Zion Description |
| 7212070 | 40G QSFP+ ER4 CWDM 40KM LC SMF Fiber Optic Transceiver |
The 40 QSFP+ LR4 2KM is a 4x10G hot-pluggable optical transceiver module. It is designed for up to 2KM optical communication applications over multimode fiber using 4 wavelength of CWDM via LC connectors. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2.
It is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-LR4 standard.
It is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as high-performance computing networks, enterprise core and distribution layer applications, data centers.
| Form Factor | QSFP+ | Max Data Rate | 41.2 Gbps (4×10.3 Gbps) | |||||
| Wavelength | 1310nm | Center Wavelength | 1271,1291,1311,1331nm | |||||
| Max Cable Distance | 40KM | Connector type | Duplex LC | |||||
| Fiber cable Type | SMF | Vendor Name | Zion Communication/fibre-com | |||||
| Transimitter Type | DFB CWDM | Receiver Type | PIN | |||||
| Transmit Power | – 1.7 ~ +4.5 dBm | Max Receiver sensitivity |
– 19.5 dBm | |||||
| Overload Power | – 4.5 dBm | Extinction Ratio | 5.5 dB | |||||
| DDM | Supported | Operating Temp. | 0°C to 70°C (32°F to 158°F) | |||||
| Zion Code | Zion Description | |||||||
| 7212010 | 40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver | |||||||
| 7212020 | 40G BiDi QSFP+ SR4 850nm & 900nm 100M LC MMF Fiber Optic Transceiver | |||||||
| 7212030 | 40G QSFP+ SR4 850nm 400M LC MMF Fiber Optic Transceiver | |||||||
| 7212050 | 40G QSFP+ LR4 CWDM 2KM LC SMF Fiber Optic Transceiver | |||||||
| 7212060 | 40G QSFP+ LR4 CWDM 10KM LC SMF Fiber Optic Transceiver | |||||||
| 7212070 | 40G QSFP+ ER4 CWDM 40KM LC SMF Fiber Optic Transceiver | |||||||
| 7212080 | 40G QSFP+ PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver | |||||||
| 7212090 | 40G QSFP+ PSM4 1310nm 10KM MPO SMF Fiber Optic Transceiver | |||||||
