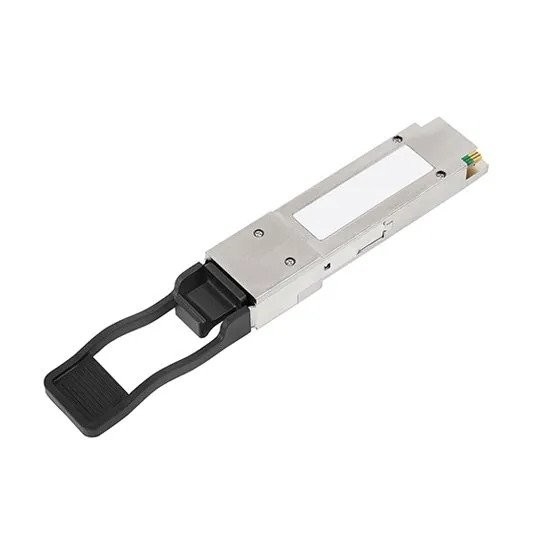

40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver

Basic Information
Place of Origin: China
Brand Name: Hello Signal
Certification: IEC 60825-1:2007
Model Number: 40G QSFP+
Minimum Order Quantity: no limit
Packaging Details: 10 PC/Plastic Bag
Delivery Time: Normally 10 workingdays
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Form Factor: QSFP+ Max Data Rate: 41.2 Gbps (4×10.3 Gbps)
Wavelength: 850nm Max Cable Distance 1: 100m On OM3 MMF
Max Cable Distance 2: 150m On OM4 MMF Connector Type: MPO/MTP
Fiber Cable Type: MMF
High Light:

40G QSFP+ SR4 850nm

,

MPO 40G QSFP+ SR4

,

MMF 40G QSFP+ SR4


Product Description

40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver



Zion Code and Description

Zion Code Zion Description
7211010 40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver

Applications

  • 40GBASE-SR4 40G Ethernet Links; InfiniBand SDR, DDR and QDR applications
  • Sever-Server Clusters, Super-computing interconnections

Description

The 40 QSFP+ SR4 100M/150M is a 4x10G hot-pluggable optical transceiver module. It is designed for 100M/150M optical communication applications over multimode fiber using a wavelength of 850nm via MPO connectors.
It is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-SR4 standard.
It is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as high-performance computing networks, enterprise core and distribution layer applications, data centers.

Compatible Brands:Cisco,Huawei,IBM,Juniper,Dell,H3C,D-LINK,HP,Aruba,Quidway…

Main product parameters

Form Factor QSFP+ Max Data Rate 41.2 Gbps (4×10.3 Gbps)
Wavelength 850nm Max Cable Distance 1 100m on OM3 MMF
Max Cable Distance 2 150m on OM4 MMF Connector type MPO/MTP
Fiber cable Type MMF Vendor Name Zion Communication/fibre-com
Transimitter Type VCSEL 850nm Receiver Type PIN
Transmit Power – 7.6 ~ +2.4 dBm Max Receiver
sensitivity
– 5.4 dBm
Overload Power 2.4 dBm Extinction Ratio 3.0 dB
DDM Supported Operating Temp. 0°C to 70°C (32°F to 158°F)

Zion Communication’s Hot 40G transceiver types

Zion Code Zion Description
7212010 40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver
7212020 40G BiDi QSFP+ SR4 850nm & 900nm 100M LC MMF Fiber Optic Transceiver
7212030 40G QSFP+ SR4 850nm 400M LC MMF Fiber Optic Transceiver
7212050 40G QSFP+ LR4 CWDM 2KM LC SMF Fiber Optic Transceiver
7212060 40G QSFP+ LR4 CWDM 10KM LC SMF Fiber Optic Transceiver
7212070 40G QSFP+ ER4 CWDM 40KM LC SMF Fiber Optic Transceiver
7212080 40G QSFP+ PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver
7212090 40G QSFP+ PSM4 1310nm 10KM MPO SMF Fiber Optic Transceiver

40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver40G QSFP+ SR4 850nm 150M MPO MMF Fiber Optic Transceiver 2
