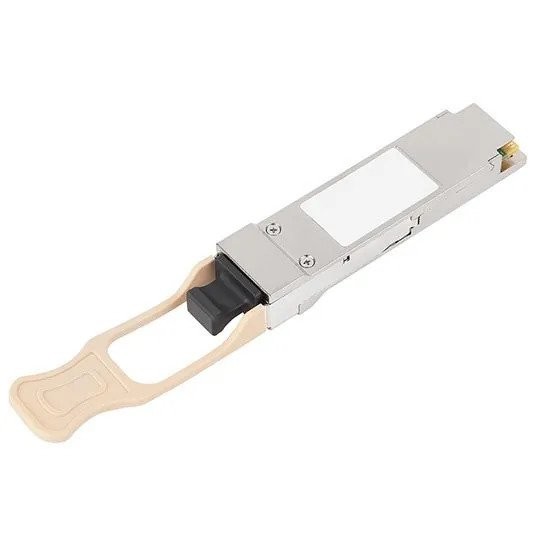

100G QSFP28 SR4 Fiber Optic Transceiver with 100 Gbps Data Rate and 850nm Wavelength for 100m OM4 MMF

Basic Information

Place of Origin:	China
Brand Name:	Hello Signal
Certification:	IEC 60825-1:2007
Model Number:	QSFP28

Minimum Order Quantity:	no limit
Packaging Details:	10 PC/Plastic Bag
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Form Factor:	QSFP28	Max Data Rate:	100 Gbps
Wavelength:	850nm	Max Cable Distance 1:	70m On OM3 MMF
Max Cable Distance 2:	100m On OM4 MMF	Connector Type:	MPO/MTP
Fiber Cable Type:	MMF	Transimitter Type:	VCSEL 850nm
Highlight:	MMF Fiber Optic Transceiver , MPO Fiber Optic Transceiver , 100Gb/S Fiber Optic Transceiver

Product Description

100M MPO MMF Fiber Optic Transceiver 100Gb/S QSFP28 SR4 850nm

High-performance 100Gb/s QSFP28 SR4 850nm optical transceiver designed for 100M multimode fiber applications with MPO connectors.

Product Identification

Zion Code	Zion Description
7211010	100G QSFP28 SR4 850nm 100M MPO MMF Fiber Optic Transceiver

Applications

100GBASE-SR4 100G Ethernet Links
InfiniBand QDR applications
100G Datacom connections

Product Overview

The 100 QSFP28 SR4 100M is a 4x25G hot-pluggable optical transceiver module designed for 100M optical communication applications over multimode fiber using 850nm wavelength via MPO connectors.

Compliant with QSFP28 MSA and IEEE 802.3bm standards, this transceiver features the appropriate form factor, optical/electrical connections, and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). Engineered to withstand harsh external operating conditions including temperature variations, humidity, and EMI interference, this hot-swappable transceiver is ideal for high-performance computing networks, enterprise core and distribution layer applications, and data centers.

Technical Specifications

Parameter	Value	Parameter	Value
Form Factor	QSFP28	Max Data Rate	100 Gbps
Wavelength	850nm	Max Cable Distance 1	70m on OM3 MMF
Max Cable Distance 2	100m on OM4 MMF	Connector Type	MPO/MTP
Fiber Cable Type	MMF	Vendor Name	Zion Communication
Transmitter Type	VCSEL 850nm	Receiver Type	PIN
Transmit Power	-8.4 ~ +2.4 dBm	Max Receiver Sensitivity	-10.3 dBm
Overload Power	2.4 dBm	Extinction Ratio	3.0 dB
DDM	Supported	Operating Temperature	0°C to 70°C (32°F to 158°F)

Related 100G Transceiver Products

Zion Code	Zion Description
7211010	100G QSFP28 SR4 850nm 100M MPO MMF Fiber Optic Transceiver
7211020	100G QSFP28 PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver
7211030	100G QSFP28 LR4 CWDM 2KM LC SMF Fiber Optic Transceiver
7211050	100G QSFP28 LR4 LAN WDM 10KM LC SMF Fiber Optic Transceiver
7211060	100G QSFP28 ER4 LAN WDM 30KM/40KM LC SMF Fiber Optic Transceiver
7211070	100G QSFP28 ZR4 LAN WDM 80KM LC SMF Fiber Optic Transceiver
