Home > Products> Optical Fiber System> SC UPC 12 Fibers G.652.D Single Mode Fiber Optic Patch Cord Unjacketed Color Coded FOPT

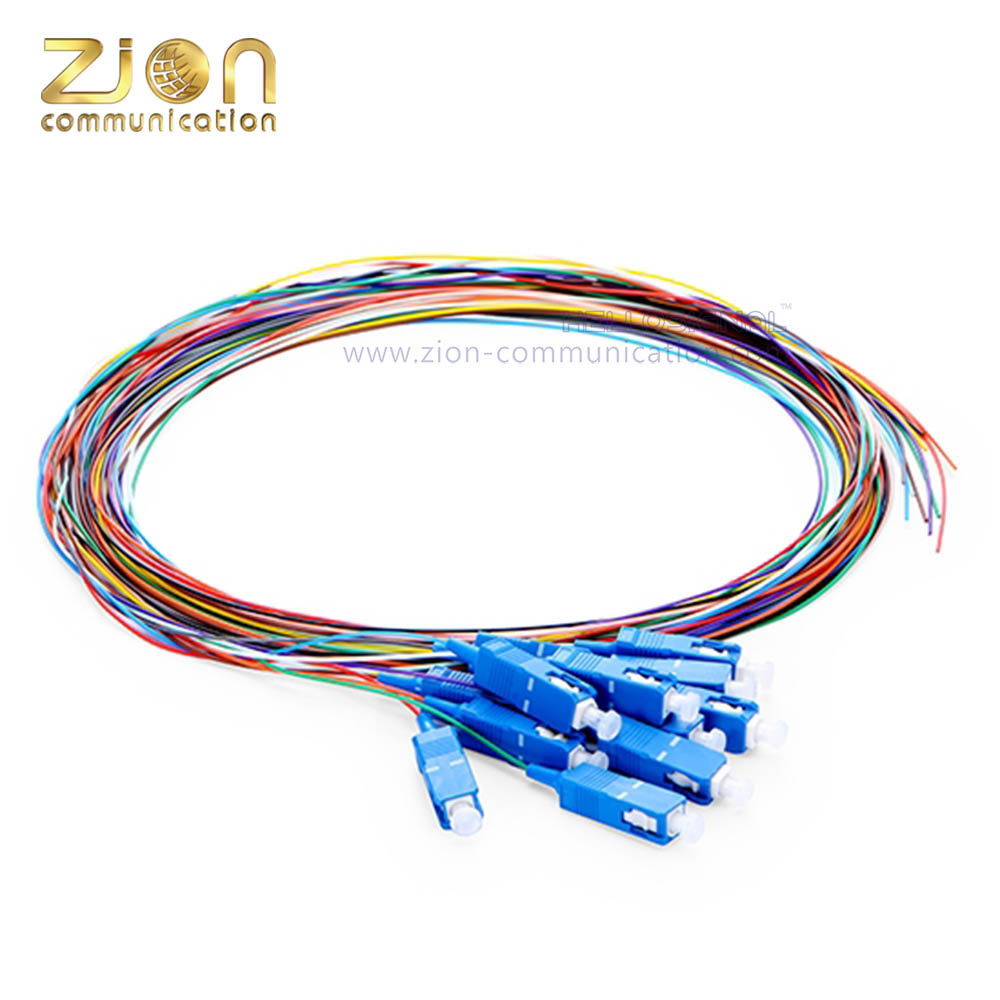

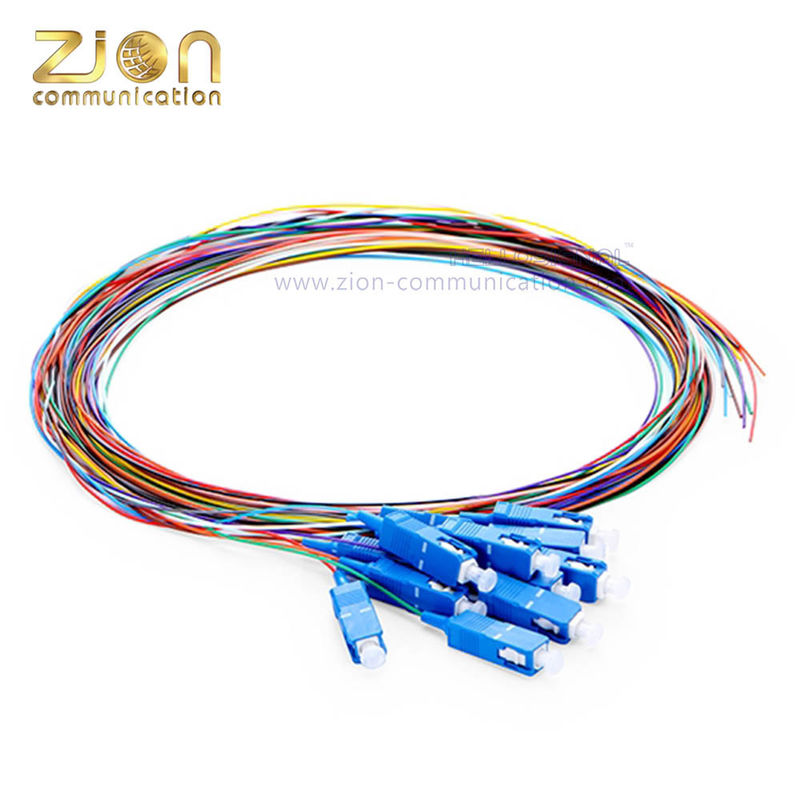

SC UPC 12 Fibers G.652.D Single Mode Fiber Optic Patch Cord Unjacketed Color Coded FOPT

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC UPC 12 Fibers G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Single Mode Patch Cord Sc Upc , Unjacketed Patch Cord Sc Upc , Color Coded Sc Upc Patch Cord

Product Description

SC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded Fiber Optic Patch Cord

High-performance fiber optic patch cord featuring SC UPC connectors with 12 fibers in G.652.D single mode configuration, color-coded for easy identification.

Product Specifications

Fiber Optic Cable

Fiber Type: Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
900um/0.9mm Buffer Color: Yellow for SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
900um/0.9mm Types: Bunch Typical: 12 Fibers
Aramid Yarn (2.0/3.0mm): Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket: Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color: Yellow for SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Cable Length: 1m, 2m, 3m, other lengths on request

Connector

Connector Type: SC (Subscriber Connector/Square Connector/Standard Connector)
Typical Application: Telecom, GPON, EPON, GBIC

Performance Parameters

Parameter	SC UPC SM(OS2)G.652.D
Operating Wavelength (nm)	1310-1550
Insertion Loss (dB)	≤ 0.3
Return Loss (dB)	≥ 55
Repeatability (dB)	≤ 0.1
Interchangeability (dB)	≤ 0.2
Tensile Strength (N)	≥ 1000
Operating Temperature (℃)	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85

Product Code

21F12111U-2

SC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Length Options Available
