PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: LC APC Simplex OM1
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 25 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Detail Information
Fiber Unit: G.652D Or G.657A Tight Buffer Fiber: Tight Buffer Fiber
Jacket: PVC Or LSZH Color: Orange
Package: 1 PC/Plastic Bag, PCS/Carton
Highlight:

OM1 Multimode LC APC Simplex

,

PVC Jacket LC APC Patch Cord

,

Simplex LC APC Patch Cord


Product Description



SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

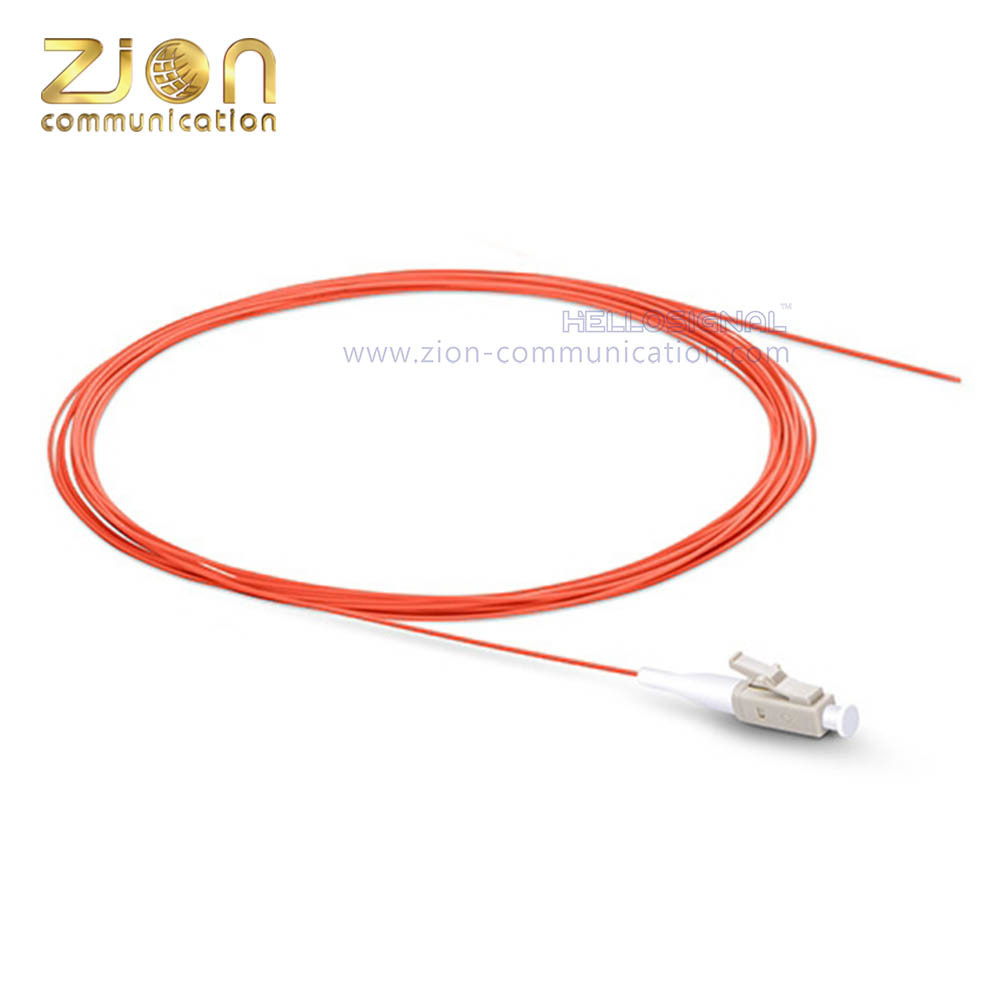

PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT 0






LC APC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT




LC APC Simplex
OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
12F1411-2
PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT 1
Product Specification
Fiber Optic Cable
Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core
to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request

Product Specification
Connector
Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000



PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT 2



LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers


PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT 3



Product Specification
Parameter LC APC
OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85


Zion Code Description
12F1411-2 LC APC Simplex
OM1 Multimode PVC 0.9mm -2m(6ft) FOPT


PVC Jacket LC APC Simplex OM1 Multimode 0.9mm 2m 6ft FOPT 4



OEM/ODM service for you
ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available
