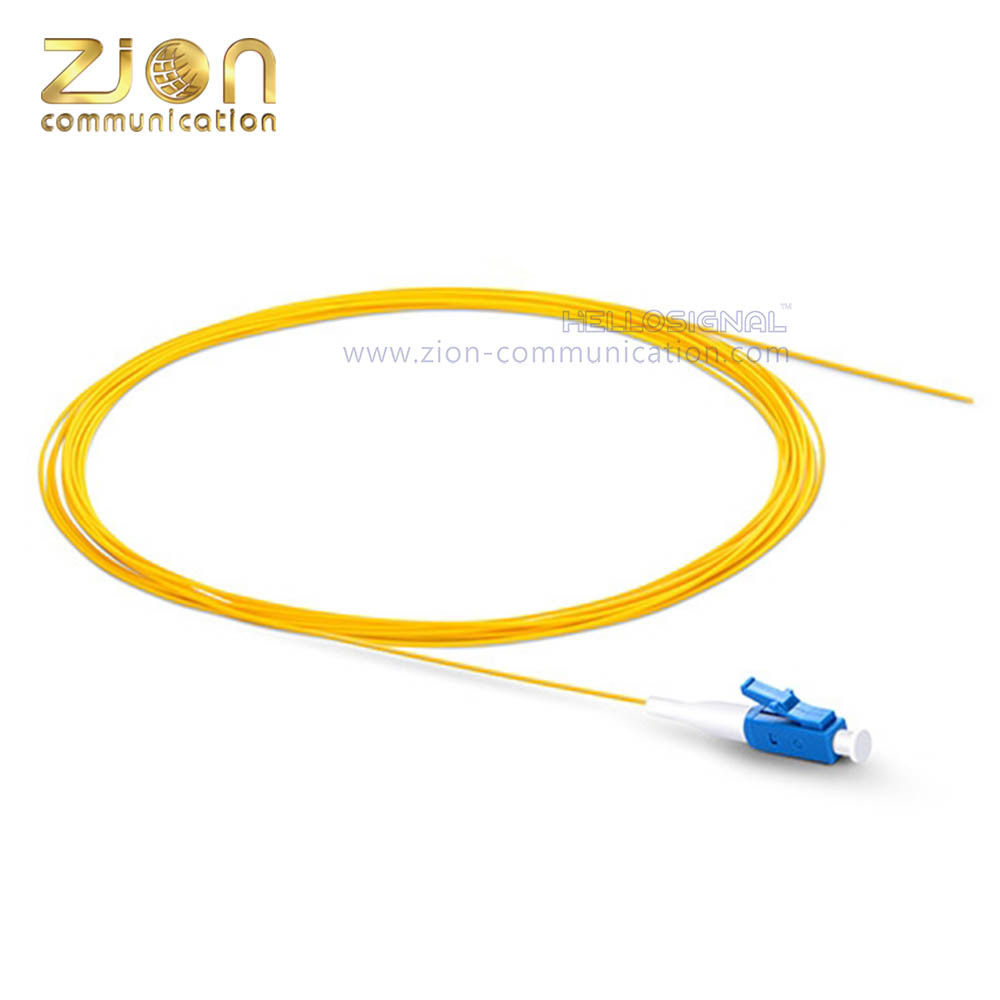

Single Mode G.652.D Fiber Optic Patch Cord with 0.9mm PVC Jacket for High-Density Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Fiber Unit:

G.652D Or G.657A

Tight Buffer Fiber:

Tight Buffer Fiber

Jacket:

PVC Or LSZH

Color:

Yellow

Package:

1 PC/Plastic Bag, PCS/Carton

Highlight:

PVC Jacket LC UPC Simplex

LC UPC Simplex Single Mode

Parameter

Specification

Fiber Type

Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)

Buffer Color

Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)

Cable Types

Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm

Cable Length

1m, 2m, 3m, other lengths on request

Parameter

Specification

Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC Connector

Lucent Connector/Little Connector/Local Connector
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

Parameter

LC UPC SM(OS2)G.652.D

Operating Wavelength (nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensile Strength (N)

≥ 1000

Operating Temperature (°C)

-20 to +85

Storage Temperature (°C)

-40 to +85
