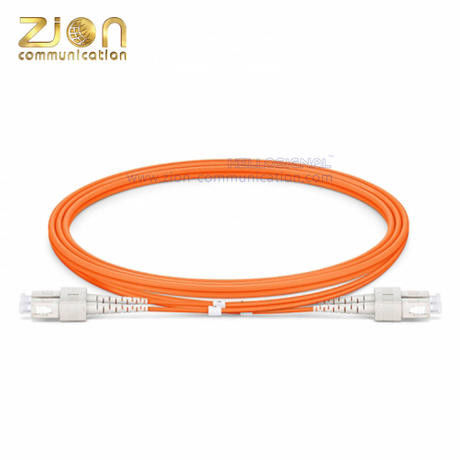

SC UPC to SC UPC Duplex OM1 Multimode PVC LSZH Jacket Fiber Optic Patch Cord for High-Speed Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC UPC to SC UPC Duplex OM1

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	SC UPC Fiber Optic Patch Cord , LSZH Jacket Sc Upc Patch Cord , Multimode Sc Upc Duplex

Product Description

SC UPC To SC UPC Patch Cord Duplex OM1 Multimode PVC LSZH Jacket

High-performance fiber optic patch cord designed for reliable data transmission in telecommunications and networking applications.

Product Code: 2121D412-2

Product Specifications

Fiber Optic Cable Details

Fiber Type	OM1 Multimode (62.5/125)
Fiber Count	Duplex
Cable Jacket	PVC / LSZH / Plenum (OFNP) OD: 2.0mm
Jacket Color	Orange (OM1 standard)
Cable Length	2m (6ft) - custom lengths available

Mechanical Specifications

Ferrule Material	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB over 1,000 mating cycles

Connector Information

Connector Type: SC UPC to SC UPC
Application: Telecom, GPON, EPON, GBIC

Performance Parameters

Parameter	SC UPC to SC UPC
Operating Wavelength	850-1300nm
Insertion Loss	≤ 0.3dB
Return Loss	≥ 35dB
Repeatability	≤ 0.1dB
Interchangeability	≤ 0.2dB
Tensile Strength	≥ 1000N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM solutions with our professional R&D team:

Customized Logo Printing
Cable Printing Services
Custom Label/PE Bag/Carton Design
Various Colors & Lengths Available

Image	Description	Category
	SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121D112-2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 2121D412-2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121S112-2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
