SC UPC Simplex Fiber Optic Patch Cord G.652.D Single Mode with PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC UPC to SC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	PVC Jacket SC UPC Simplex , Single Mode SC UPC Simplex , G.652.D Sc Upc Patch Cord

Product Description

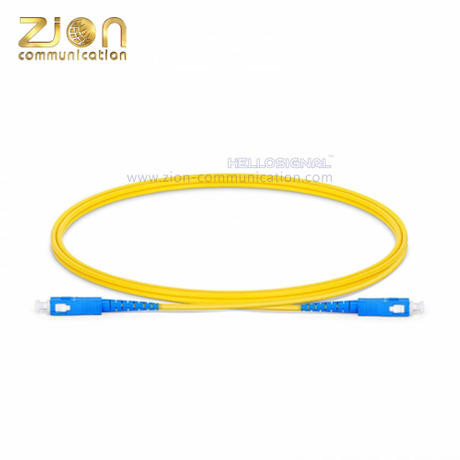

SC UPC Simplex Patch Cord G.652.D Single Mode With PVC Jacket

High-performance fiber optic patch cord designed for reliable data transmission in telecommunications and networking applications.

Product Details

SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

Product Code: 2121S112-2

Product Specifications

Fiber Optic Cable

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125), [(OM3, OM4) (50/125,Laser Optimization)]
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specification

Parameter	Specification
Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector

Connector Type: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

SC (Subscriber Connector/Square Connector/Standard Connector)
Typical Applications: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	SC UPC	SC UPC
Operating Wavelength(nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 55
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensil Strength (N)	≥ 1000	≥ 1000
Operating Temperature (℃)	-20 ~ +85	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85	-40 ~ +85

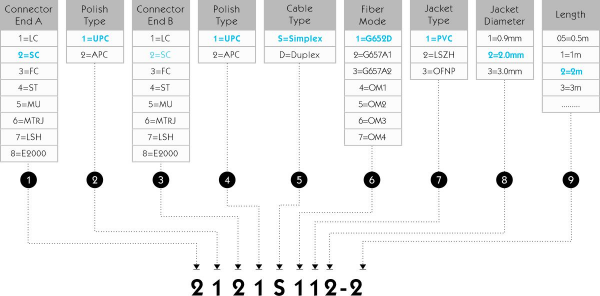

Product Identification

Zion Code	Description
2121S112-2	SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM solutions with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design

Different Colors & Custom Lengths Available
