Place of Origin: | CHINA |
---|---|
Brand Name: | Zion communication OR OEM |
Certification: | ISO, CE, RoHS, UL |
Model Number: | SC APC to SC APC Simplex G.652.D |
Minimum Order Quantity: | 1,000 PCS |
Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
Delivery Time: | Normally 25 workingdays |
Payment Terms: | T/T, L/C |
Supply Ability: | 30,000 PCS / Month |
Fiber Unit: | G.652D Or G.657A | Tight Buffer Fiber: | Tight Buffer Fiber |
---|---|---|---|
Jacket: | PVC Or LSZH | Color: | Yellow |
Package: | 1 PC/Plastic Bag, PCS/Carton | ||
Highlight: | PVC Jacket SC APC Simplex,Single Mode SC APC Patch Cord,Sc Apc To Sc Apc Patch Cords |

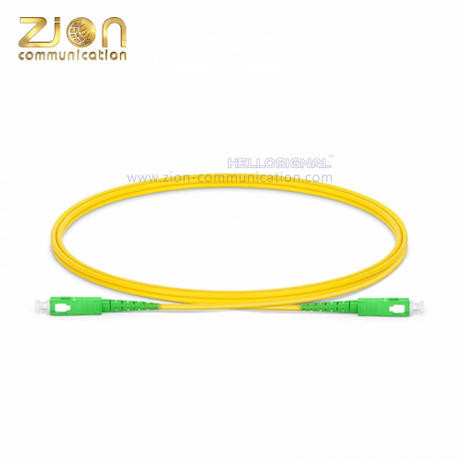

SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC
SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222S112-2 |
||||||||
Product Specification | ||||||||
Fiber Optic Cable | ||||||||
Fiber Type | Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
Multi-mode: OM1(62.5/125), OM2(50(125), [(OM3, OM4) (50/125,Laser Optimization)] |
||||||||
Fiber Count | Simplex / Duplex | |||||||
Cable Jacket | Main material: PVC / LSZH / Plenum (OFNP) | |||||||
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm | ||||||||
Jacket Color | Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2) | |||||||
Orange: OM1, OM2 | ||||||||
Aqua: OM3, OM4 | ||||||||
Cable Length | 1m, 2m, 3m. other lengths on request | |||||||
Mechanical Specification |
Ferrule | Ceramic; (MTRJ: PS-Polyphenylene Sulphide) | ||||||
Apex Offset | < 50um | |||||||
Fiber Height | ± 100nm | |||||||
Radius of Curvature | 7mm R < 25mm (Excluding MTRJ) | |||||||
Repeatability | ≤ 0.2dB 1,000 times mating cycles | |||||||
Product Specification | ||||||||
Connector | ||||||||
Connector Type | LC, SC, FC, ST, MU, MTRJ, LSH, E-2000 | |||||||
|
SC ( Subscriber Connector/Square Connector/Standard Connector) Typical Application: Telecom,GPON,EPON,GBIC |
|||||||
|
||||||||
|
||||||||
Product Specification | ||||||||
Parameter | SC UPC | SC UPC | ||||||
SM(OS2)G.652.D/G.657.A1/G.657.A2 | ||||||||
Operating Wavelength(nm) | 1310-1550 | |||||||
Insertion Loss (dB) | ≤ 0.3 | ≤ 0.3 | ||||||
Return Loss (dB) | ≥ 55 | ≥ 55 | ||||||
Repeatability (dB) | ≤ 0.1 | ≤ 0.1 | ||||||
Interchangeability (dB) | ≤ 0.2 | ≤ 0.2 | ||||||
Tensil Strength (N) | ≥ 1000 | ≥ 1000 | ||||||
Operating Temperature (℃) | -20 ~ +85 | -20 ~ +85 | ||||||
Storage Temperature (℃) | -40 ~ +85 | -40 ~ +85 | ||||||
Zion Code | Description | |||||||
2222S112-2 | SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC |
|||||||
|
||||||||
|
||||||||
OEM/ODM service for you | ||||||||
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
||||||||
• Customized Logo | ||||||||
• Printing on Cable | ||||||||
• Label/PE bag/Carton design | ||||||||
• Different Color & Different Lengths Available | ||||||||
