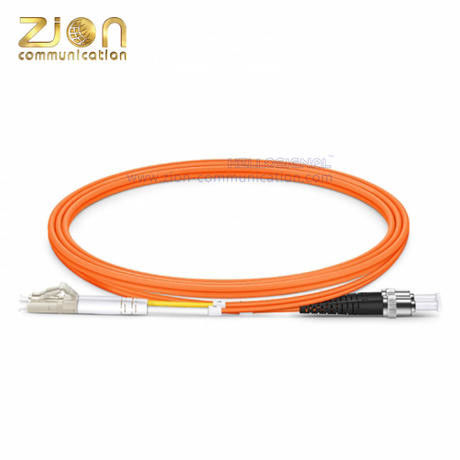

LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC APC to ST UPC Duplex OM1

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	LC APC Fiber Optic Patch Cord , ST UPC Fiber Optic Patch Cord , 6ft Fiber Optic Patch Cord

Product Description

LC APC to ST UPC Duplex OM1 Fiber Optic Patch Cord

High-performance duplex fiber optic patch cord featuring LC APC to ST UPC connectors, designed for reliable data transmission in multimode applications.

Product Details

LC APC to ST UPC Duplex

OM1 Multimode PVC 2.0mm - 2m(6ft) FOPC

Part Number: 1141D412-2

Fiber Optic Cable Specifications

Fiber Type	Multimode: OM1 (62.5/125)	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)	OM2, OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP)	OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: Single-mode	Orange: OM1, OM2	Aqua: OM3, OM4
Cable Length	1m, 2m, 3m (other lengths available on request)

Mechanical Specifications

Ferrule	Ceramic (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Specifications

LC Connector (Lucent Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

ST Connector (Straight Tip)

Typical Applications: Datacom

Performance Specifications

Parameter	LC APC	ST UPC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 50
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
