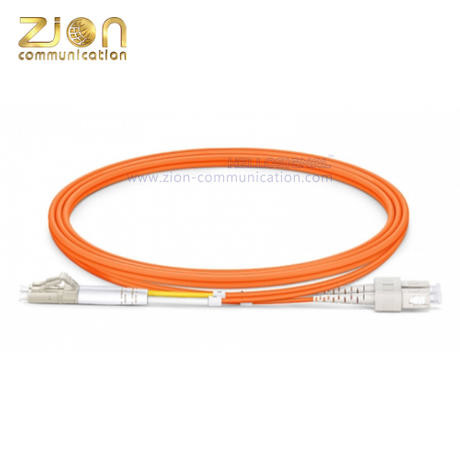

LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord for High-Density Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to SC UPC Duplex OM1

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	OM1 Orange SC UPC Duplex , Tight Buffer Fiber SC UPC Duplex , PVC Cable Jacket SC UPC Duplex

Product Description

LC UPC To SC UPC Duplex OM1 Orange Multimode With PVC Cable Jacket

High-performance fiber optic patch cord featuring SC, LC, FC, ST, APC, UPC connectors in 0.9/2.0/3.0mm diameters for single mode and multimode applications with PVC/LSZH cable jackets.

Product Overview

LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm - 2m(6ft) Fiber Optic Patch Cord

Product Code: 1121D412-2

Fiber Optic Cable Specifications

Fiber Type	OM1 Multimode (62.5/125)
Fiber Count	Duplex
Cable Jacket	PVC, 2.0mm diameter
Jacket Color	Orange (OM1 standard)
Cable Length	2m (6ft)

Mechanical Specifications

Ferrule Material	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB over 1,000 mating cycles

Connector Information

LC Connector (Lucent Connector)

Typical applications: High-density connections, SFP and SFP+ transceivers, XFP transceivers

SC Connector (Subscriber Connector)

Typical applications: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	LC UPC	SC UPC
Operating Wavelength	1310-1550nm
Insertion Loss	≤ 0.3dB	≤ 0.3dB
Return Loss	≥ 35dB	≥ 35dB
Repeatability	≤ 0.1dB	≤ 0.1dB
Interchangeability	≤ 0.2dB	≤ 0.2dB
Tensile Strength	≥ 1000N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

Product Identification

Zion Code: 1121D412-2
Description: LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm - 2m(6ft) FOPC

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team and extensive manufacturing experience.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
