LC UPC to ST UPC Fiber Optic Patch Cord G.652.D Single Mode PVC 2.0mm FOPC for High Density Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to ST UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	G.652.D LC UPC Patch Cord , Single Mode UPC Patch Cord , Yellow LC UPC Patch Cord

Product Description

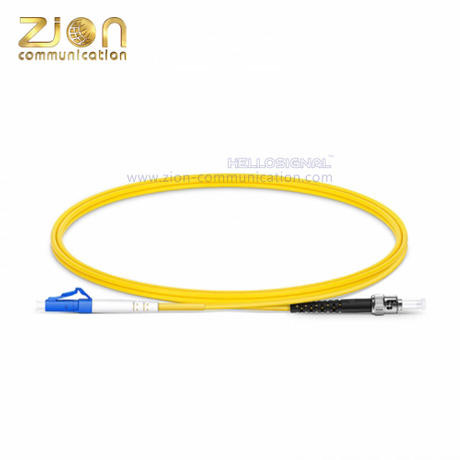

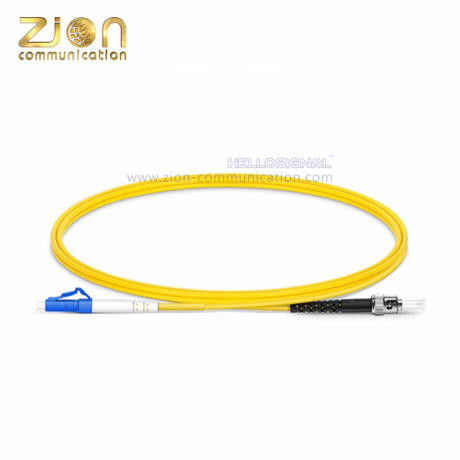

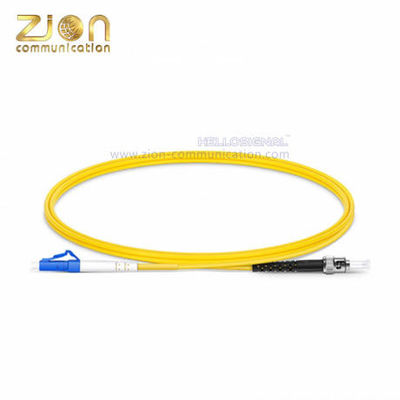

LC UPC to ST UPC Simplex Fiber Optic Patch Cord

High-performance simplex fiber optic patch cord featuring LC UPC to ST UPC connectors, designed for reliable data transmission in industrial and telecommunications applications.

Product Overview

LC UPC to ST UPC Simplex G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC

Product Code: 1141S112-2

Fiber Optic Cable Specifications

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Simplex
Cable Jacket	Main material: PVC OD: 2.0mm
Jacket Color	Yellow (Single-mode applications)
Cable Length	2m (6ft) - other lengths available on request

Mechanical Specifications

Parameter	Specification
Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB over 1,000 mating cycles

Connector Information

LC Connector (Lucent Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

ST Connector (Straight Tip)

Typical Applications: Datacom networks

Performance Specifications

Parameter	LC UPC	ST UPC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 50
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
