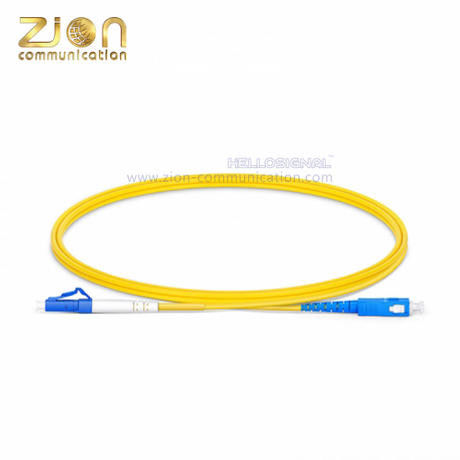

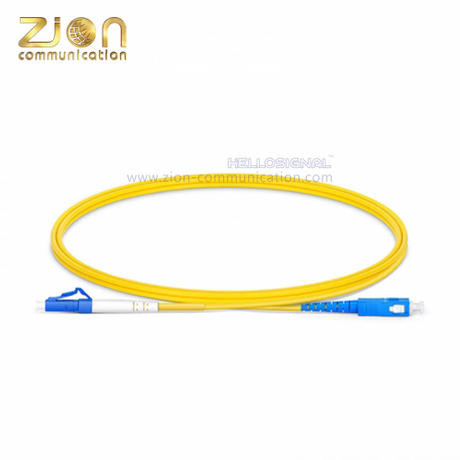

LC UPC to SC UPC Simplex G.652.D Single Mode PVC 2m Length Fiber Optic Patch Cord

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to SC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Single Mode LC UPC Simplex , 2m Length SC UPC Simplex , G.652.D LC UPC Simplex

Product Description

LC UPC to SC UPC Simplex Fiber Optic Patch Cord

High-performance single mode fiber optic patch cord with LC UPC to SC UPC connectors, designed for reliable telecommunications and data center applications.

Product Overview

LC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC

Zion Code: 1121S112-2

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Simplex
Cable Jacket	Main material: PVC OD: 2.0mm
Jacket Color	Yellow (Single-mode applications)
Cable Length	2m (other lengths available on request)

Mechanical Specifications

Ferrule: Ceramic
Apex Offset: < 50um
Fiber Height: ± 100nm
Radius of Curvature: 7mm R < 25mm
Repeatability: ≤ 0.2dB over 1,000 mating cycles

Connector Types

LC Connector (Lucent/Little/Local Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

SC Connector (Subscriber/Square/Standard Connector)

Typical Applications: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	LC UPC	SC UPC
Operating Wavelength (nm)	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 55
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000
Operating Temperature (℃)	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85

OEM/ODM Services

Zion Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available

LC UPC to SC UPC Simplex G.652.D Single Mode PVC 2m Length Fiber Optic Patch Cord

Single Mode LC UPC Simplex

2m Length SC UPC Simplex

G.652.D LC UPC Simplex
