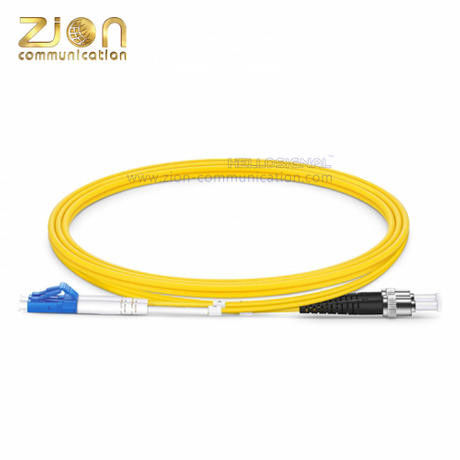

LC UPC to ST UPC Duplex Fiber Optic Patch Cord G.652.D Single Mode PVC 2m Length FOPC

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to ST UPC Duplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	2m Length Fiber Optic Patch Cord , LC UPC Fiber Optic Patch Cord , ST UPC Fiber Optic Patch Cord

Product Description

LC UPC to ST UPC Duplex Fiber Optic Patch Cord

G.652.D Single Mode PVC 2m Length

Product Overview

High-performance duplex fiber optic patch cord featuring LC UPC to ST UPC connectors, designed for reliable data transmission in demanding network environments.

Product Details

LC UPC to ST UPC Duplex

G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC

Product Code: 1141D112-2

Fiber Optic Cable Specifications

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Duplex
Cable Jacket	PVC, OD: 2.0mm
Jacket Color	Yellow (Single-mode)
Cable Length	2m (other lengths available on request)

Mechanical Specifications

Parameter	Specification
Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Information

LC Connector (Lucent Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

ST Connector (Straight Tip)

Typical Applications: Datacom

Performance Specifications

Parameter	LC UPC	ST UPC
Operating Wavelength	1310-1550nm
Insertion Loss	≤ 0.3dB	≤ 0.3dB
Return Loss	≥ 55dB	≥ 50dB
Repeatability	≤ 0.1dB	≤ 0.1dB
Interchangeability	≤ 0.2dB	≤ 0.2dB
Tensile Strength	≥ 1000N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Length Options Available
