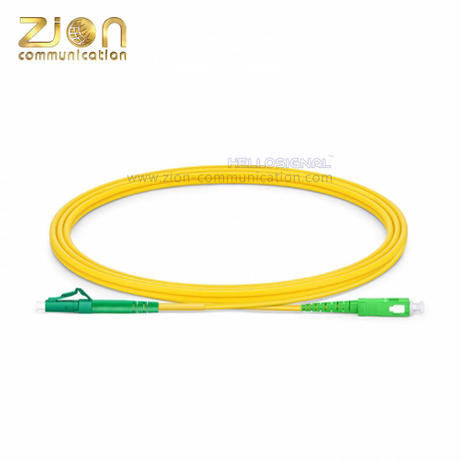

LC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC APC to SC APC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	FOPC SC APC Simplex , Single Mode SC APC Simplex , G.652.D Lc Apc Simplex

Product Description

LC APC To SC APC Simplex G.652.D Single Mode PVC 2.0mm 2m Length FOPC

Fiber Optic Patch Cord Overview

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

LC APC To SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

Product Code: 1222S112-2

Product Specifications

Fiber Optic Cable Details

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Simplex
Cable Jacket	Main material: PVC OD: Simplex: 2.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Cable Length	2m (other lengths available on request)

Mechanical Specifications

Ferrule	Ceramic
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Information

LC Connector (Lucent/Little/Local Connector)

Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

SC Connector (Subscriber/Square/Standard Connector)

Typical Application: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	LC APC	SC APC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensil Strength (N)	≥ 1000	≥ 1000
Operating Temperature (℃)	-20 ~ +85	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85	-40 ~ +85

OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our Professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
