LC UPC to FC UPC Fiber Optic Patch Cord G.652.D Single Mode with PVC Jacket for High-Density Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to FC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	FC UPC Fiber Optic Patch Cord , LC UPC Fiber Optic Patch Cord , FOPC Fiber Optic Patch Cord

Product Description

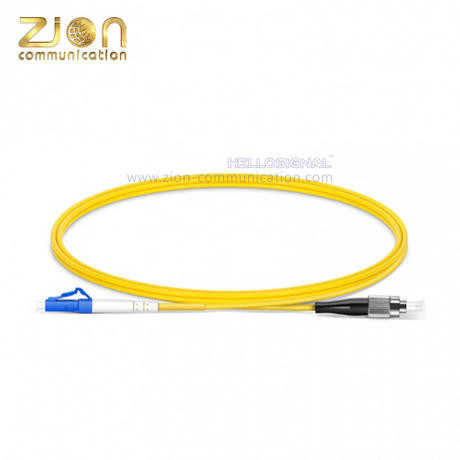

LC UPC to FC UPC Fiber Optic Patch Cord

Simplex G.652.D Single Mode FOPC with PVC 2.0mm jacket - 2m (6ft) length

Product Overview

High-performance LC UPC to FC UPC simplex fiber optic patch cord designed for reliable data transmission in telecommunications, datacom, and measurement equipment applications.

Key Specifications

Fiber Type: Single-mode OS2 (G.652.D compliant)
Cable Jacket: PVC, 2.0mm outer diameter
Jacket Color: Yellow (standard for single-mode)
Cable Length: 2m (6ft)
Connector Types: LC UPC to FC UPC
Zion Code: 1131S112-2

Mechanical Specifications

Parameter	Specification
Ferrule Material	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB over 1,000 mating cycles

Optical Performance

Parameter	LC UPC	FC UPC
Operating Wavelength	1310-1550nm
Insertion Loss	≤ 0.3dB	≤ 0.3dB
Return Loss	≥ 55dB	≥ 55dB
Repeatability	≤ 0.1dB	≤ 0.1dB
Interchangeability	≤ 0.2dB	≤ 0.2dB
Tensile Strength	≥ 1000N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

Product Code: 1131S112-2
Description: LC UPC to FC UPC Simplex G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM solutions with our professional R&D team:

Customized Logo Application
Printing on Cable
Label/PE Bag/Carton Design
Multiple Color Options Available
Custom Lengths Upon Request
