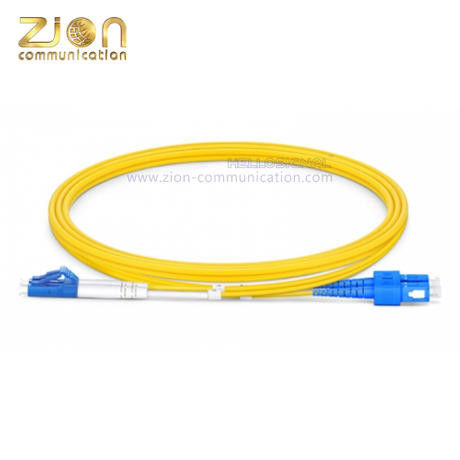

LC UPC to SC UPC Duplex G.652.D Single Mode PVC Jacket 6ft Fiber Optic Patch Cord (FOPC)

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Duplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	G.652.D Fiber Unit SC UPC Duplex , SC UPC Duplex Single Mode

Product Description

LC UPC to SC UPC Duplex Fiber Optic Patch Cord

High-performance duplex fiber optic patch cord featuring LC UPC to SC UPC connectors, designed for reliable data transmission in telecommunications and networking applications.

Product Overview

LC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm - 2m (6ft) FOPC

Product Code: 1121D112-2

Fiber Optic Cable Specifications

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Duplex
Cable Jacket	Main material: PVC OD: 2.0mm
Jacket Color	Yellow (Single-mode applications)
Cable Length	2m (6ft)

Mechanical Specifications

Component	Specification
Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Details

LC Connector (Lucent Connector)

Typical Applications: High-density connections, SFP and SFP+ transceivers, XFP transceivers

SC Connector (Subscriber Connector)

Typical Applications: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	LC UPC	SC UPC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 55
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Length Options Available
