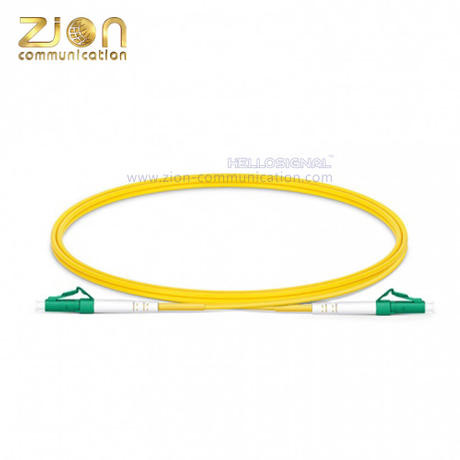

LC APC to LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC APC to LC APC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	G.652D LC APC Patch Cord , PVC Jacket LC APC Simplex , Single Mode LC APC Patch Cord

Product Description

LC APC Simplex Patch Cord G.652.D Single Mode PVC Jacket

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

LC APC to LC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

Product Code: 1212S112-2

Product Specifications

Fiber Optic Cable

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125), [(OM3, OM4) (50/125,Laser Optimization)]
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Specifications

Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC (Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Parameters

Parameter	LC APC	LC APC
Operating Wavelength(nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensil Strength (N)	≥ 1000	≥ 1000
Operating Temperature (℃)	-20 ~ +85	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85	-40 ~ +85

Product Identification

Zion Code	Description
1212S112-2	LC APC to LC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

Customized Logo
Printing on Cable

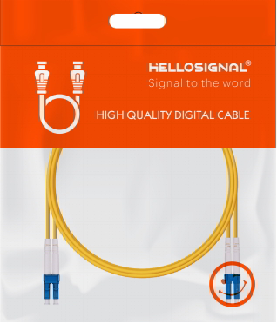

Label/PE bag/Carton design
Different Color & Different Lengths Available
