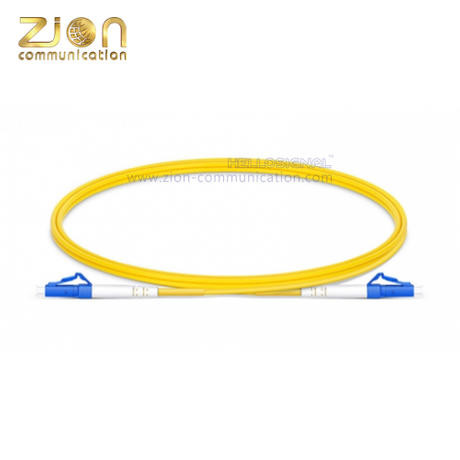

LC UPC to LC UPC Simplex G.652.D Single Mode Fiber Optic Patch Cord with 2m Length PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS

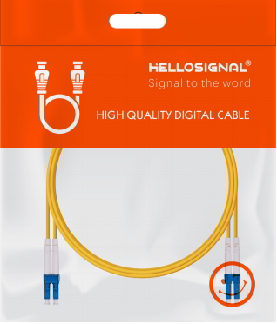

Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Simplex LC UPC To LC UPC , PVC Jacket LC UPC To LC UPC , 2m Length LC UPC Patch Cord

Product Description

LC UPC To LC UPC Simplex G.652.D Single Mode 2m Length PVC Jacket

Product Overview

High-performance fiber optic patch cord designed for reliable data transmission in telecommunications and networking applications.

Product Details

LC UPC to LC UPC Simplex G.652.D Single Mode PVC 0.9mm - 2m(6ft) FOPC

Zion Code: 1111S111-2

Fiber Optic Cable Specifications

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Fiber Count	Simplex
Cable Jacket	PVC, 0.9mm OD
Jacket Color	Yellow
Cable Length	2m (other lengths available on request)

Mechanical Specifications

Component	Specification
Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Information

LC (Lucent Connector) - Ideal for high-density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Specifications

Parameter	LC UPC	LC UPC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 55
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
