Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	LC APC Duplex Patch Cord , G.652D Fiber Unit LC APC Duplex

Product Description

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

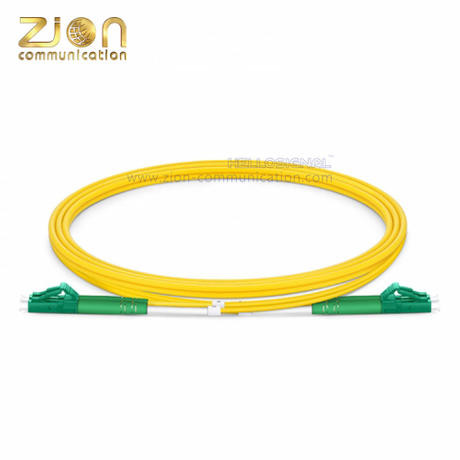

LC APC To LC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC


LC APC to LC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1212D112-2

Product Specification
Fiber Optic Cable
Fiber Type			Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
			Multi-mode: OM1(62.5/125), OM2(50(125), [(OM3, OM4) (50/125,Laser Optimization)]
Fiber Count			Simplex / Duplex
Cable Jacket			Main material: PVC / LSZH / Plenum (OFNP)
			OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color			Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
			Orange: OM1, OM2
			Aqua: OM3, OM4
Cable Length			1m, 2m, 3m. other lengths on request
Mechanical Specification	Ferrule		Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
	Apex Offset		＜ 50um
	Fiber Height		± 100nm
	Radius of Curvature		7mm R ＜ 25mm (Excluding MTRJ)
	Repeatability		≤ 0.2dB 1,000 times mating cycles

Product Specification
Connector
Connector Type			LC, SC, FC, ST, MU, MTRJ, LSH, E-2000
			LC ( Lucent Connector/Little Connector/Local Connector) Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers



Product Specification
Parameter		LC APC		LC APC
		SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm)		1310-1550
Insertion Loss (dB)		≤ 0.3		≤ 0.3
Return Loss (dB)		≥ 60		≥ 60
Repeatability (dB)		≤ 0.1		≤ 0.1
Interchangeability (dB)		≤ 0.2		≤ 0.2
Tensil Strength (N)		≥ 1000		≥ 1000
Operating Temperature (℃)		-20 ~ +85		-20 ~ +85
Storage Temperature (℃)		-40 ~ +85		-40 ~ +85


Zion Code		Description
1212D112-2		LC APC to LC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM service for you
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available

	LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC 1111D111-2 (7242101) SM(OS2)G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1111D112-2(7242102) SM(OS2)G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 1111D412-2(7242103) OM1 G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Duplex OM2 Multimode PVC 2.0mm-2m(6ft) FOPC 1111D512-2(7242104)OM2 G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC/UPC to LC/UPC Dulplex OM3 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D612-1(7242105)OM3 G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC/UPC to LC/UPC Dulplex OM4 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D712-1(7242106)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPC 1111S111-2(7242107)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1111S112-2(7242108)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC UPC Simplex OM1 Multimode PVC 2.0mm-2m(6ft) FOPC 1111S412-2(7242109)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC UPC to LC APC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1112S112-2(7242110)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC APC to LC APC Duplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1212D112-2(7242111)SM(OS2)G.652.D/G.657.A1/G.657.A2	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord
	LC APC to LC APC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC 1212S112-2(7242112)OS2 ( G.652.D/G.657.A1/G.657.A2)	LC to LC Type, Copper Cabling, Fiber Optic Patch Cord

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC APC to LC APC Duplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T, L/C
Supply Ability:	30,000 PCS / Month
