Home > Products> Optical Fiber System> LC UPC to LC UPC Simplex OM1 Multimode PVC Jacket 6ft Fiber Optic Patch Cord FOPC

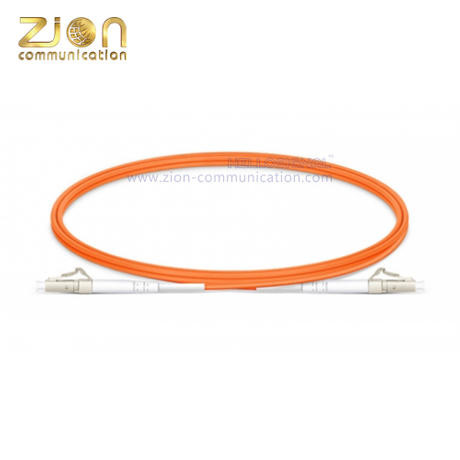

LC UPC to LC UPC Simplex OM1 Multimode PVC Jacket 6ft Fiber Optic Patch Cord FOPC

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Simplex OM1

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	6ft LC UPC Simplex , Orange OM1 LC UPC Simplex

Product Description

LC UPC to LC UPC Simplex OM1 Multimode PVC Jacket 6ft FOPC

High-performance fiber optic patch cord designed for reliable data transmission in networking applications.

Product Details

LC UPC to LC UPC Simplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC

Product Code: 1111S412-2

Fiber Optic Cable Specifications

Fiber Type	OM1 Multimode (62.5/125)
Fiber Count	Simplex
Cable Jacket	PVC, 2.0mm OD
Jacket Color	Orange
Cable Length	2m (6ft)

Mechanical Specifications

Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Specifications

LC UPC (Lucent Connector/Little Connector/Local Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Specifications

Parameter	LC UPC to LC UPC MM(OM1/2)
Operating Wavelength	850-1300nm
Insertion Loss	≤ 0.3dB
Return Loss	≥ 35dB
Repeatability	≤ 0.1dB
Interchangeability	≤ 0.2dB
Tensile Strength	≥ 1000N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

Related Products

LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC 1111D111-2

LC UPC to LC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1111D112-2

LC UPC to LC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 1111D412-2

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Length Options Available
