Home > Products> Optical Fiber System> LC UPC to LC UPC Duplex OM2 Multimode PVC Jacket Fiber Optic Patch Cord (FOPC)

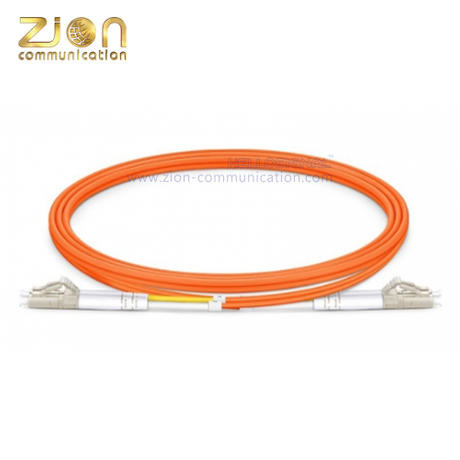

LC UPC to LC UPC Duplex OM2 Multimode PVC Jacket Fiber Optic Patch Cord (FOPC)

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Duplex OM2

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	PVC Jacket LC UPC Duplex , OM2 LC UPC Patch Cord , Multimode LC UPC To LC UPC

Product Description

LC UPC to LC UPC Duplex Orange OM2 Multimode PVC Jacket FOPC

Fiber Optic Patch Cord

High-quality fiber optic patch cords and pigtails available in SC, LC, FC, ST/APC UPC configurations with 0.9/2.0/3.0mm diameters for Single Mode and Multimode applications. Available in PVC and LSZH jacket materials.

Inquire Now LC UPC to LC UPC Duplex OM2 Multimode PVC Jacket Fiber Optic Patch Cord (FOPC) 0

Product Specifications

Fiber Optic Cable

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Types

Available connector types: LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC (Lucent Connector/Little Connector/Local Connector)
Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Specifications

Parameter	LC UPC	LC UPC OM2 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm)	850-1300	850-1300
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 35	≥ 35
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 ~ +85	-20 ~ +85
Storage Temperature (°C)	-40 ~ +85	-40 ~ +85

Product Identification

Zion Code	Description
1111D512-2	LC UPC to LC UPC Duplex OM2 Multimode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM solutions with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
