0.50mm Copper Conductor Outdoor Cat5e Network Cable with PE Jacket and Messenger

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112141

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	3050KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PE	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	FTP, Shielded Twisted Pair	Product Name:	F/UTP CAT5E PE With Messenger
Connector:	RJ45
Highlight:	PE Jacket CAT5E Network Cable , 0.50mm Copper Conductor CAT5E Network Cable , PET Foil CAT5E Network Cable

Product Description

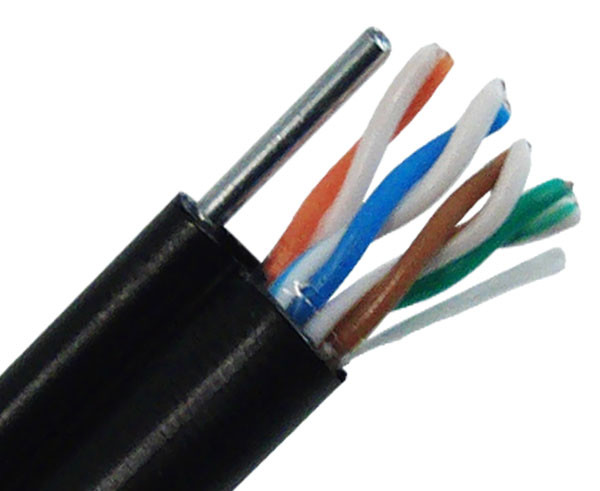

0.50mm Copper Conductor Outdoor PET Foil Cat5e Network Cable PE Jacket

F/UTP CAT 5e BC PE With Messenger, Solid 0.50mm Copper Conductor, Outdoor Cat5e Network Cable NO 7112141

F/UTP CAT 5e PE with messenger outdoor Network Cable 7112141

F/UTP CAT 5e PE with messenger-Global Market (NO. 7112141)

Cable Construction

Conductor	0.50±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.03±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange Green-White/Green, Brown-White/Brown
Shielded 1	PET Foil
Drain Wire	0.40±0.005mm TC
Overall Shield	Al/PET Foil, Foil face out
RipCord	Cotton or Fibre
Out Jacket	6.3±0.2 mm PE
Messenger	1.2mm or 7×0.4mm GSW

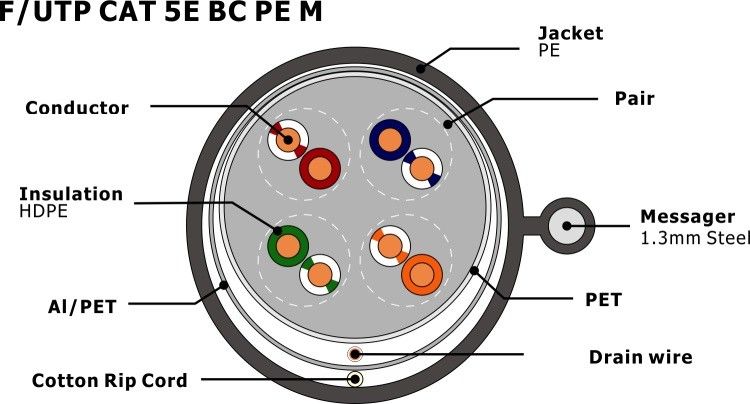

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

Note: The above transmission performance tested under 100M, 20±2℃ conditions.

Order Information

Marking	HELLOSIGNAL NO.7112141 F/UTP CAT5e 4PR 0.5mm Copper PE with messenger outdoor LAN cable ...305M
Inner Package	305m/Spool, 305m/Reel (or per customer's request)
Outer Package	Color Box, Pallet (or per customer's request)
Delivery time	Normally 25 days after received the deposit
Brand	HELLOSIGNAL® OR OEM

CAT 5e Cable Overview

CAT 5e cable (Category 5e) is used for internet and Ethernet cabling infrastructure. The cable standard provides performance up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet).

Applications

Supports 1 Gbps with frequencies up to 100 MHz

10GBASE-T/POE/VoIP

Computers and Laptops

Televisions

WiFi access points

Network enabled appliances

Telephones

Connectors

RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Manufacturing Excellence

Zion Communication is a leading manufacturer and exporter of F/UTP CAT5e with messenger cables, providing competitive signal and low voltage power transmission products.

Competitive Advantages

Quality Control: Comprehensive checks from raw materials to final products including incoming material inspection, process control, and final inspection

R&D Focus: Development of element technologies to support customer growth

Customer Service: 24/7 support with effective communication

Product Range: Over 1000 types of cables, connectors, and assemblies

Timely Delivery: Reliable shipping and fulfillment
