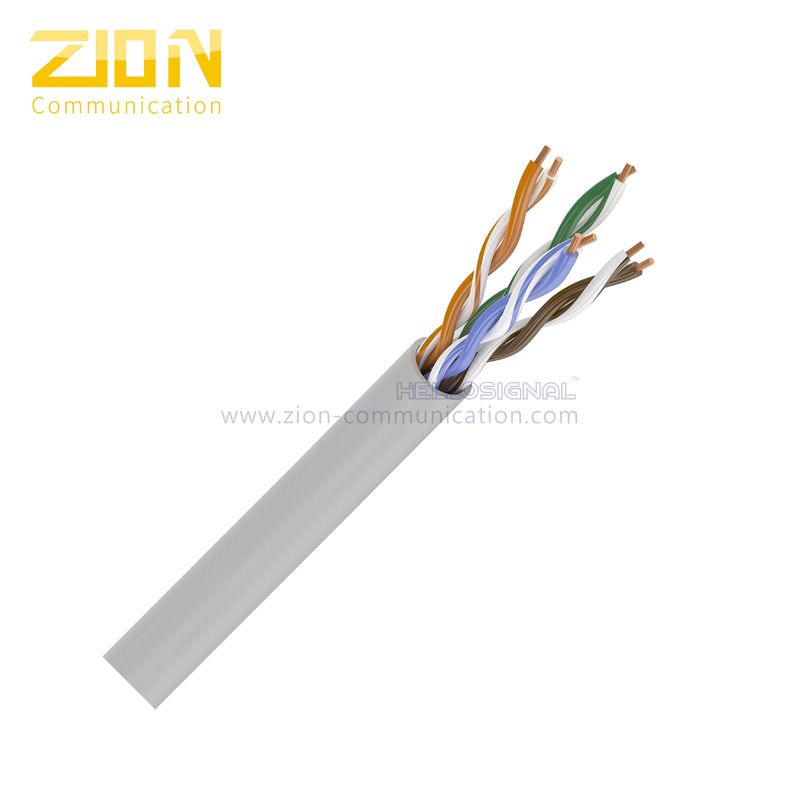

Solid 0.50mm Copper Conductor Plenum PVC Jacket CPR Certified Cat5e Network LAN Cable

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112105

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	9050KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	FEP
Jacket:	Plenum PVC	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	UTP, Unshielded Twisted Pair	Product Name:	U/UTP CAT5E
Connector:	RJ45
Highlight:	CPR Certified CAT5E Network Cable , Plenum PVC Jacket CAT5E Network Cable

Product Description

Solid 0.50mm Copper Conductor Plenum PVC Jacket Cat5e Network Cable

CPR Certified U/UTP CAT 5e BC CMP Solid 0.50mm Copper Conductor Indoor Plenum PVC Jacket Network Cable

Product Specifications

Construction Details

Conductor	0.50mm Solid Bare Copper
Pairs	4 Pairs
Insulation	0.90±0.05 mm FEP
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
RipCord	Kevlar
Out Jacket	5.1±0.2 mm PVC Plenum

※ Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

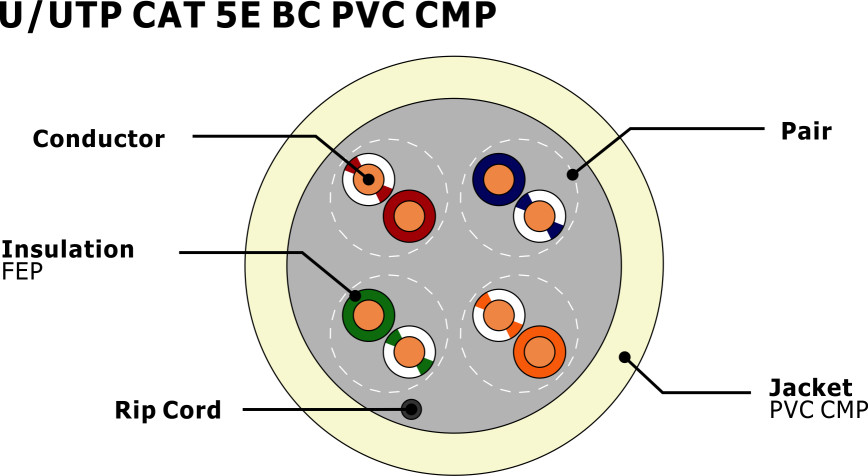

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

※ Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking	HELLOSIGNAL NO.7112105 U/UTP CAT5e 4PR 0.5mm Copper Plenum PVC ...305M
Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

Applications

● Cat5e can support 1 Gbps, the cabling can support frequencies of up to 100 MHz

● 10GBASE-T/POE/Voip

● Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones

Connectors

● RJ-45 is the standard connector used with a CAT 5e cable assembly. RJ45 is the universal connector used with 99% of network devices.

Manufacturer Information

Zion Communication - Professional U/UTP CAT 5e indoor LAN cable manufacturer from China

One of the top manufacturers and exporters of U/UTP CAT5e indoor Plenum PVC jacket cables

Extensive experience in manufacturing for export and problem-solving

Focuses on customer needs: provide competitive signal & low voltage power transmission products and services

Advanced production equipment and excellent engineering team

Committed to customer satisfaction with professional international sales teams

Competitive Advantages

Quality Control: Comprehensive checks from raw materials to final products including incoming material inspection, manufacturing process control, worker training, 5S system implementation, and final inspection procedures.

R&D Focus: Reinforcing and developing element technologies to support customer growth and success.

Customer Service: 24/7 support with skilled communication and prompt response to inquiries.

Product Range: More than 1000 kinds of cable, connectors, and assemblies available.

Delivery: Timely delivery with professional organization capabilities.
