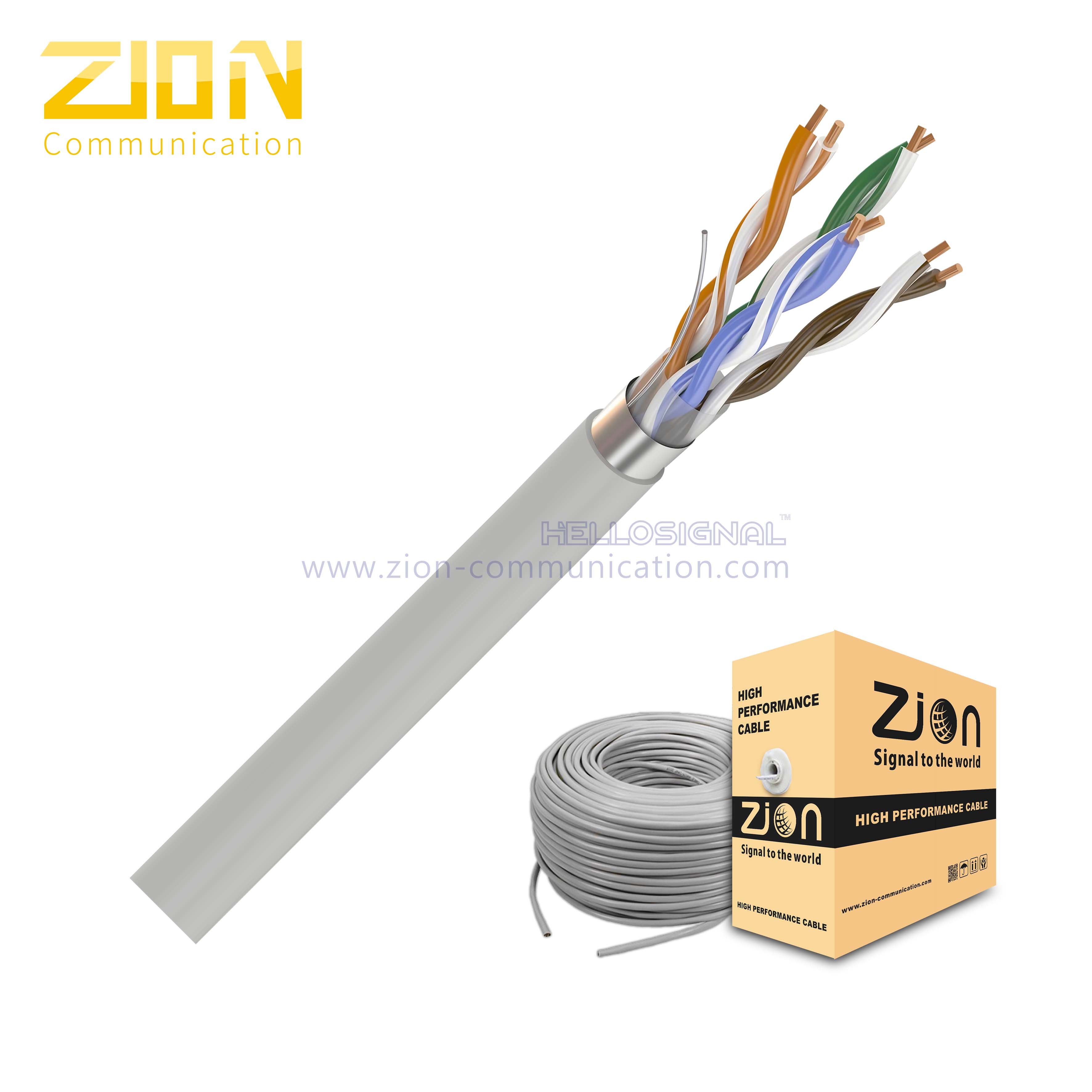

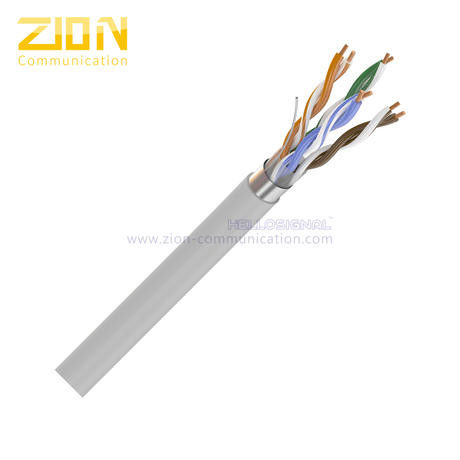

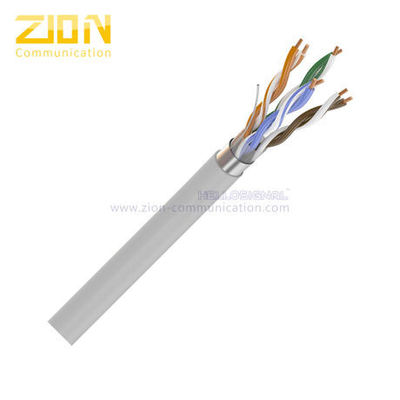

0.05 Mm FEP Insulation Indoor Cat5e Network Cable UL ETL Certified NO 7112115
F/UTP CAT 5e BC CMP Solid 0.50mm Copper Conductor Indoor Cat5e Network Cable UL/ETL Certified NO 7112115
F/UTP CAT 5e Solid 0.50mm Copper Conductor, CMP Jacket Network Cable 7112115
F/UTP CAT 5e CMP-Global Market (NO. 7112115)
Construction Specifications
| Component |
Specification |
| Conductor |
0.50±0.005mm Solid Bare Copper |
| Pairs |
4 Pairs |
| Insulation |
1.01±0.05 mm FEP |
| Insulation Colors |
Blue-White/Blue, Orange-White/Orange
Green-White/Green, Brown-White/Brown |
| Shielded 1 |
PET Foil |
| Drain Wire |
0.40±0.005mm TC/0.5mm CCS |
| Overall Shield |
Al/PET Foil, Foil face out |
| RipCord |
Kevlar |
| Out Jacket |
6.0±0.2 mm CMP |
Note: Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

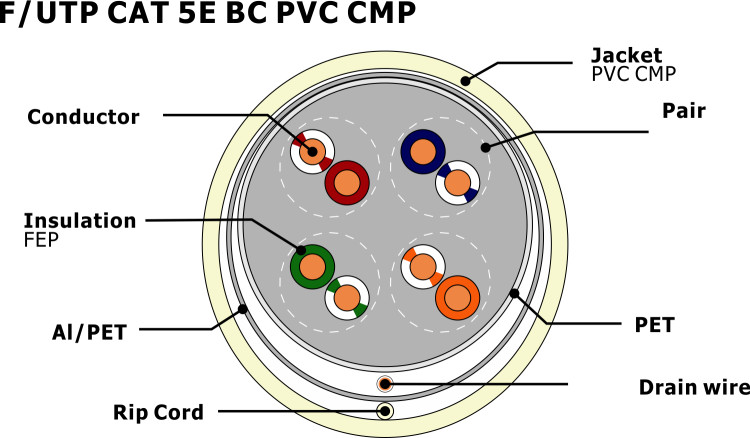

Cross Section
Compliance & Certifications
Reference Standards and Certificates
- ISO/IEC 11801-1 Ed.1.0
- ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
- UL444, UL1581, UL1666, IEC60332-1, EN50399
Electrical Characteristics
| Parameter |
Specification |
| DC Resistance |
<9.38 Ohms/100m @20℃ |
| DC Resistance Unbalance |
5% @ 20℃ |
| Mutual Capacitance |
5.6 nF/100m |
| Characteristic Impedance |
1 - 100 MHz: 100±15 Ohms
100 - 350 MHz: 100±20 Ohms |
| Max Frequency |
100MHz |
| Capacitance Unbalance |
330 pF/100m |
| NVP |
63% |
| Delay Skew |
≤ 45ns/100m |
Physical Properties
| Property |
Value |
| Pulling Tension (Max) |
≥13.5Mpa |
| Bend Radius (Min) |
8×OD of Jacket |
| Operating Temperature |
-20 to 80 ℃ (-4 to 167℉) |
Performance Characteristics
| Frequency (MHz) |
RL (Min.) (dB) |
Insertion Loss (Max.) (dB/100m) |
Propagation Delay (Max.) (ns/100m) |
Delay Skew (Max.) (ns/100m) |
NEXT (Min.) (dB) |
PSNEXT (Min.) (dB) |
ELNEXT (Min.) (dB/100m) |
PSELNEXT (Min.) (dB/100m) |
| 1 |
20.0 |
2.2 |
570.0 |
45.0 |
65.0 |
62.0 |
61.0 |
61.0 |
| 4 |
23.0 |
4.2 |
552.0 |
45.0 |
56.0 |
53.0 |
48.0 |
48.0 |
| 10 |
25.0 |
6.5 |
545.0 |
45.0 |
50.0 |
47.0 |
41.0 |
41.0 |
| 16 |
25.0 |
8.4 |
543.0 |
45.0 |
47.0 |
44.0 |
36.0 |
36.0 |
| 20 |
25.0 |
9.3 |
542.0 |
45.0 |
45.0 |
42.0 |
34.0 |
34.0 |
| 31.25 |
23.6 |
11.6 |
540.0 |
45.0 |
42.0 |
39.0 |
31.0 |
31.0 |
| 62.5 |
21.5 |
17.0 |
539.0 |
45.0 |
38.0 |
35.0 |
25.0 |
25.0 |
| 100 |
20.1 |
22.0 |
538.0 |
45.0 |
35.0 |
32.0 |
21.0 |
21.0 |
Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
Order Information
| Item |
Details |
| Marking |
HELLOSIGNAL NO.7112115 F/UTP CAT5e 4PR 0.5mm Copper CMP ...305M |
| Inner Package |
305m/Spool, 305m/Reel (or Per customer's request) |
| Outer Package |
Color Box, Pallet (or Per customer's request) |
| Delivery Time |
Normally 25 days after received the deposit |
| Brand |
HELLOSIGNAL® OR OEM |
CAT 5e Cable Overview
CAT 5e cable, named Category 5e cable, is used for the cabling infrastructure of Internet and Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet).
Applications
Supports 1 Gbps with frequencies up to 100 MHz
10GBASE-T/POE/VoIP Applications
Computers and Laptops Network Connectivity
Televisions and WiFi Access Points
Network Enabled Appliances and Telephones
Connectors
RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.
