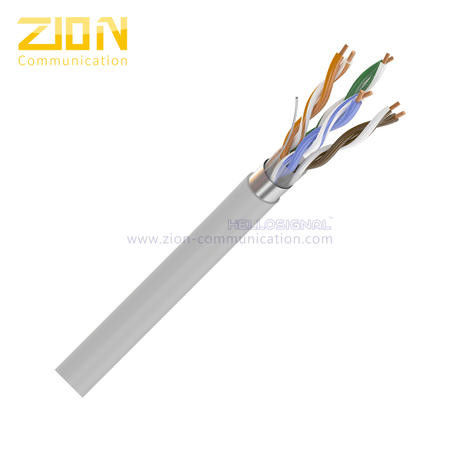

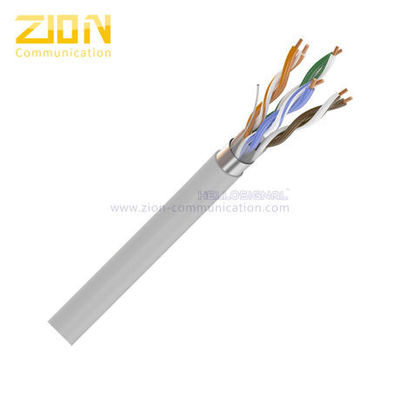

F/UTP CAT5E Ethernet Cable with Solid Bare Copper Conductor LSZH Jacket and CPR Certified

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112116

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	9050KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	LSZH	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	FTP, Shielded Twisted Pair	Product Name:	F/UTP CAT5E
Connector:	RJ45
Highlight:	PET Foil CAT5E Ethernet Cable , CPR Certified CAT5E Ethernet Cable , Indoor Cat5e Network Cable

Product Description

F/UTP CAT 5e BC LSZH PET Foil Indoor CAT5E Ethernet Cable CPR Certified

F/UTP CAT 5e BC LSZH Solid 0.50mm Copper Conductor Indoor Cat5e Network Cable CPR Certified NO 7112116

Product Specifications

Construction Details

Component	Specification
Conductor	0.50±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.03±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Shielded 1	PET Foil
Drain Wire	0.40±0.005mm TC/0.5mm CCS
Overall Shield	Al/PET Foil, Foil face out
RipCord	Cotton or Fibre
Out Jacket	6.3±0.2 mm LSZH

※ Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

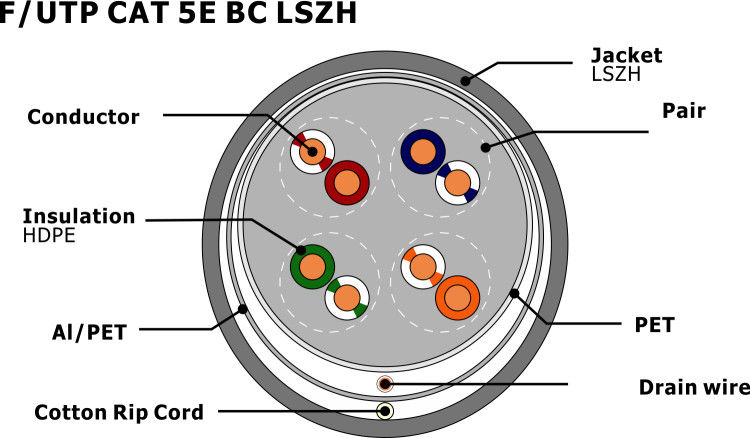

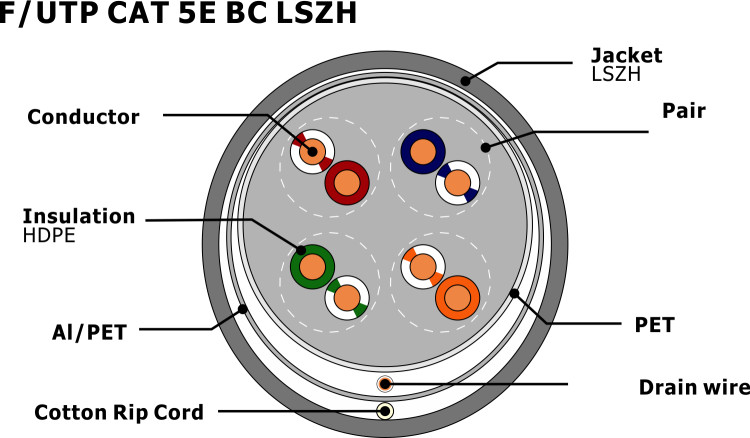

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Specification
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

※Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112116 F/UTP CAT5e 4PR 0.5mm Copper LSZH ...305M
Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

CAT 5e Cable Overview

CAT 5e cable (Category 5e cable) is used for the cabling infrastructure of Internet and Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet).

Applications

Supports 1 Gbps with frequencies up to 100 MHz

10GBASE-T/POE/VoIP

Computers and Laptops

Televisions and WiFi Access Points

Network Enabled Appliances

Telephone Systems

Connectors

RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Manufacturer Profile

Zion Communication is a leading manufacturer and exporter of F/UTP CAT5e LSZH jacket cables from China.

Competitive Advantages

Quality Control System

Incoming material inspection by QC
Manufacturing Process Control
Daily/Weekly/Monthly Worker Training
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Comprehensive Quality Control and Final Inspection

Additional Strengths

R&D focused on customer growth and success
24/7 customer support and communication
Professional and quick response to inquiries
Production capability of over 1000 cable types, connectors, and assemblies
Timely delivery commitments
