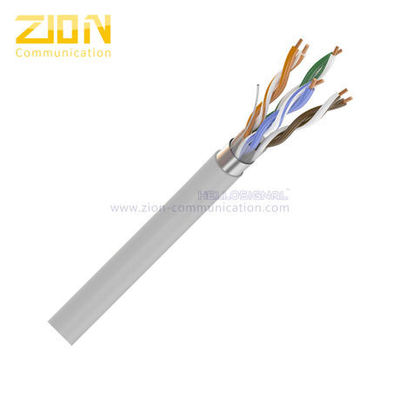

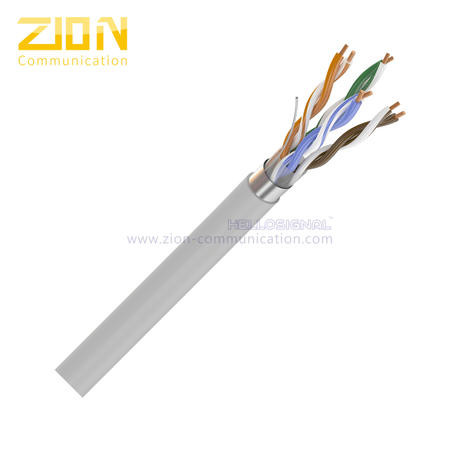

CPR Certified F/UTP CAT5e Shielded Network Cable with Solid Bare Copper Conductor and PVC Jacket

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112112

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	9050KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PVC	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	FTP, Shielded Twisted Pair	Product Name:	F/UTP CAT5E
Connector:	RJ45
Highlight:	CPR Certified Cat5e Shielded Cable , PVC Jacket CAT5E Ethernet Cable , FTP Cat5e Shielded Cable

Product Description

CPR Certified NO 7112112 Indoor FTP Cat5e Shielded Cable PVC Jacket

F/UTP CAT 5e BC PVC Solid 0.50mm Copper Conductor Indoor Cat5e Network Cable CPR Certified NO 7112112

F/UTP CAT 5e Solid 0.50mm copper Conductor, PVC Jacket Network Cable 7112112

Product Construction

Component	Specification
Conductor	0.50±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.03±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Shielded 1	PET Foil
Drain Wire	0.40±0.005mm TC/0.5mm CCS
Overall Shield	Al/PET Foil, Foil face out
RipCord	Cotton or Fibre
Out Jacket	6.3±0.2 mm PVC

※ Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

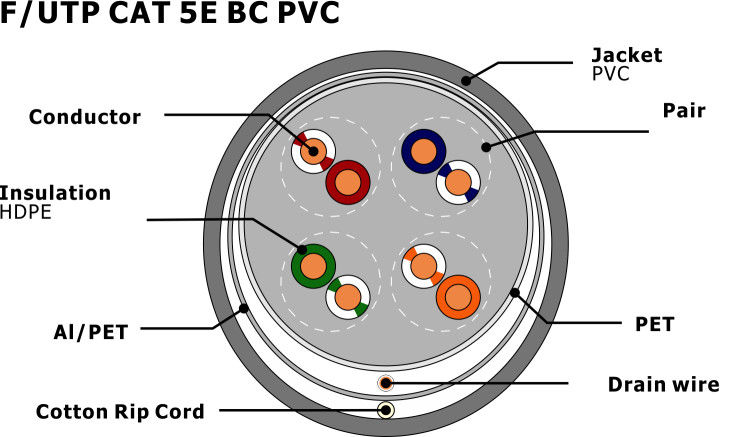

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Value
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

※ Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Detail	Specification
Marking	HELLOSIGNAL NO.7112112 F/UTP CAT5e 4PR 0.5mm Copper PVC ...305M
Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

CAT 5e Cable Overview

CAT 5e cable, named Category 5e cable, is used for the cabling infrastructure of Internet and Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet).

Applications

Supports 1 Gbps with frequencies up to 100 MHz
10GBASE-T/POE/VoIP
Computers and Laptops/Televisions/WiFi access points/Network enabled appliances/Telephones

Connectors

RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Professional F/UTP CAT 5e Manufacturer

Zion Communication is a leading manufacturer and exporter of F/UTP CAT5e PVC jacket cables from China.

Manufacturing Excellence

Extensive experience in manufacturing for export and problem-solving
Focus on customer needs: providing competitive signal & low voltage power transmission products
Advanced production equipment with excellent engineering support
Committed to customer satisfaction with professional international sales teams

Competitive Advantages

Quality Control System

Incoming material inspection by QC
Comprehensive manufacturing process control
Regular worker training programs
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Quality control and final inspection at all stages

Additional Benefits

R&D focused on supporting customer growth and success
24/7 customer support and effective communication
Quick and professional response to inquiries
Over 1000 types of cables, connectors, and assemblies available
Timely delivery commitments
