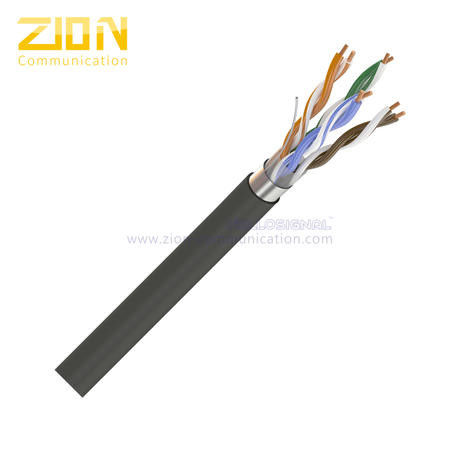

Solid 0.50mm Copper Conductor Outdoor PE Jacket CPR Certified CAT5E Ethernet F/UTP Network Cable

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112111

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	9050KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PE	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	FTP, Shielded Twisted Pair	Product Name:	F/UTP CAT5E
Connector:	RJ45
Highlight:	FTP Shield CAT5E Ethernet Cable , PE Jacket Cat5e Shielded Cable

Product Description

Solid 0.50mm Copper Conductor Outdoor PE Jacket CAT5E Ethernet Cable

F/UTP CAT 5e BC PE Solid 0.50mm Copper Conductor Outdoor Cat5e Network Cable CPR Certified NO 7112111

Product Construction

Component	Specification
Conductor	0.50±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.03±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Shielded 1	PET Foil
Drain Wire	0.40±0.005mm TC/0.5mm CCS
Overall Shield	Al/PET Foil, Foil face out
RipCord	Cotton or Fibre
Out Jacket	6.3±0.2 mm PE

※ Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

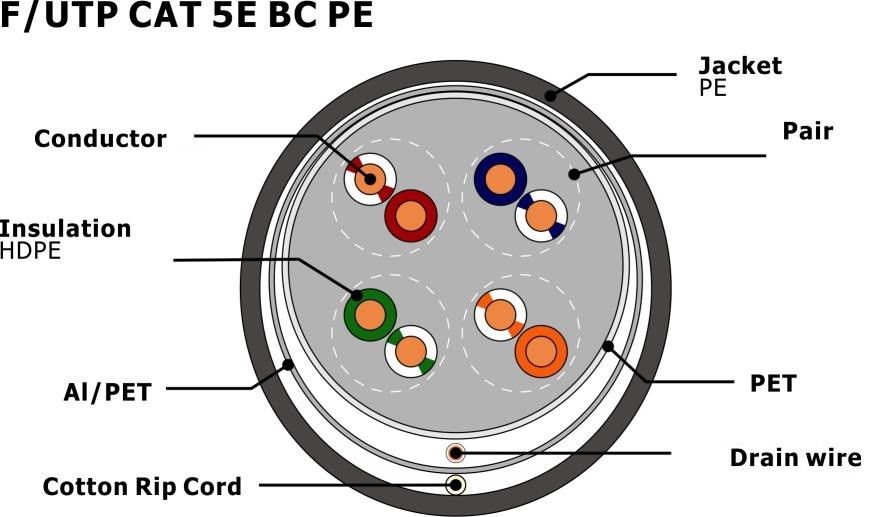

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Specification
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

※Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112111 U/UTP CAT5e 4PR 0.5mm Copper PE ...305M
Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

CAT 5e Cable Overview

CAT 5e cable (Category 5e cable) is used for the cabling infrastructure of Internet and Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet). For more about its key features and applications, please check our complete guide to Cat 5e.

Applications

Supports 1 Gbps with frequencies up to 100 MHz
10GBASE-T/POE/VoIP
Computers and Laptops/Televisions/WiFi access points/Network enabled appliances/Telephones

Connectors

RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Professional F/UTP CAT 5e Outdoor LAN Cable Manufacturer

Zion Communication is a leading manufacturer and exporter of F/UTP CAT5e PE jacket cables from China.

Competitive Advantages

Quality Control: Comprehensive quality checks from raw materials to final products:

Incoming material inspection by QC
Manufacturing Process Control
Daily/weekly/monthly worker training
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Quality Control and Final Inspection

R&D Focus: Reinforcing and developing element technologies to support future growth and customer success

Customer Service: 24/7 availability for urgent customer needs and effective communication

Product Range: Over 1000 kinds of cables, connectors, and assemblies

Timely Delivery: Professional logistics and supply chain management
