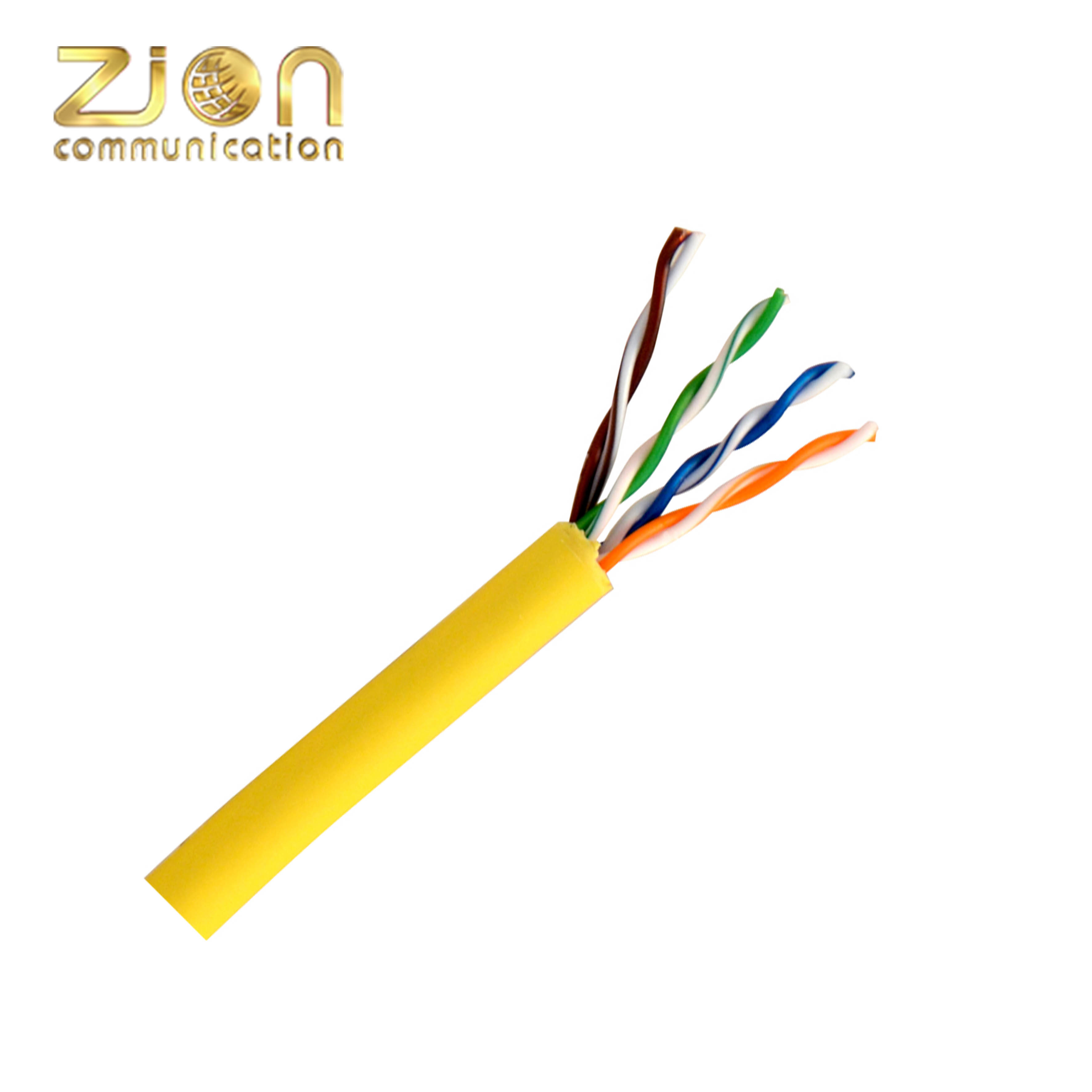

Name: U/UTP CAT5e Network Cable with LSZH Jacket Solid Bare Copper Conductor and CPR Certified for Indoor Use
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: 7112106
Availability: InStock

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	LSZH	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Shield:	UTP, Unshielded Twisted Pair	Product Name:	U/UTP CAT5E
Connector:	RJ45
Highlight:	LSZH Jacket CAT5e Network Cable , Solid Bare Copper Conductor LAN Cable , CPR Certified Ethernet Cable

Product Description

U/UTP CAT 5e BC LSZH Solid 0.50mm Copper Conductor Indoor Network Cable

CPR Certified NO 7112106

Product Overview

U/UTP CAT 5e Solid 0.50mm copper conductor, indoor LSZH jacket network cable designed for reliable Ethernet connectivity.

Cable Construction

Conductor	0.50mm Solid Bare Copper
Pairs	4 Pairs
Insulation	0.91±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
RipCord	Cotton or Fibre
Outer Jacket	5.1±0.2 mm LSZH

Conductor from 0.45mm-0.50mm all can pass Fluke test, the headroom of 0.50mm is bigger than 0.45mm

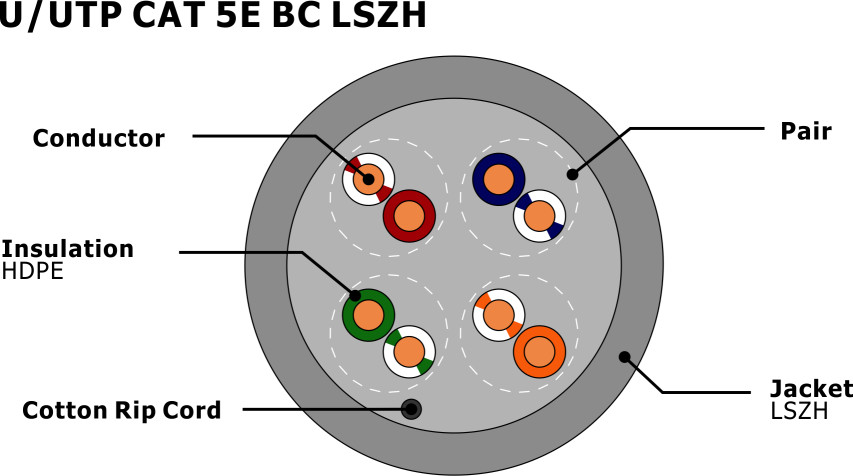

Cross Section

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 350 MHz: 100±20 Ohms
Max Frequency	100MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0

The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking	HELLOSIGNAL NO.7112106 U/UTP CAT5e 4PR 0.5mm Copper LSZH ...305M
Inner Package	305m/Spool, 305m/Reel (or per customer's request)
Outer Package	Color Box, Pallet (or per customer's request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM

CAT 5e Cable Applications

CAT 5e cable provides performance up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet).

Supports 1 Gbps with frequencies up to 100 MHz
10GBASE-T/POE/VoIP applications
Computers and laptops, televisions, WiFi access points, network-enabled appliances, telephones

Connectors

RJ-45 is the standard connector used with CAT 5e cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Manufacturing Excellence

Zion Communication is a leading manufacturer and exporter of U/UTP CAT5e LSZH jacket cables with extensive experience in manufacturing for export markets.

Quality Assurance

Incoming material inspection by QC
Manufacturing process control
Regular worker training programs
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Comprehensive quality control and final inspection

Tag:

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112106

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	9050KM / Month
