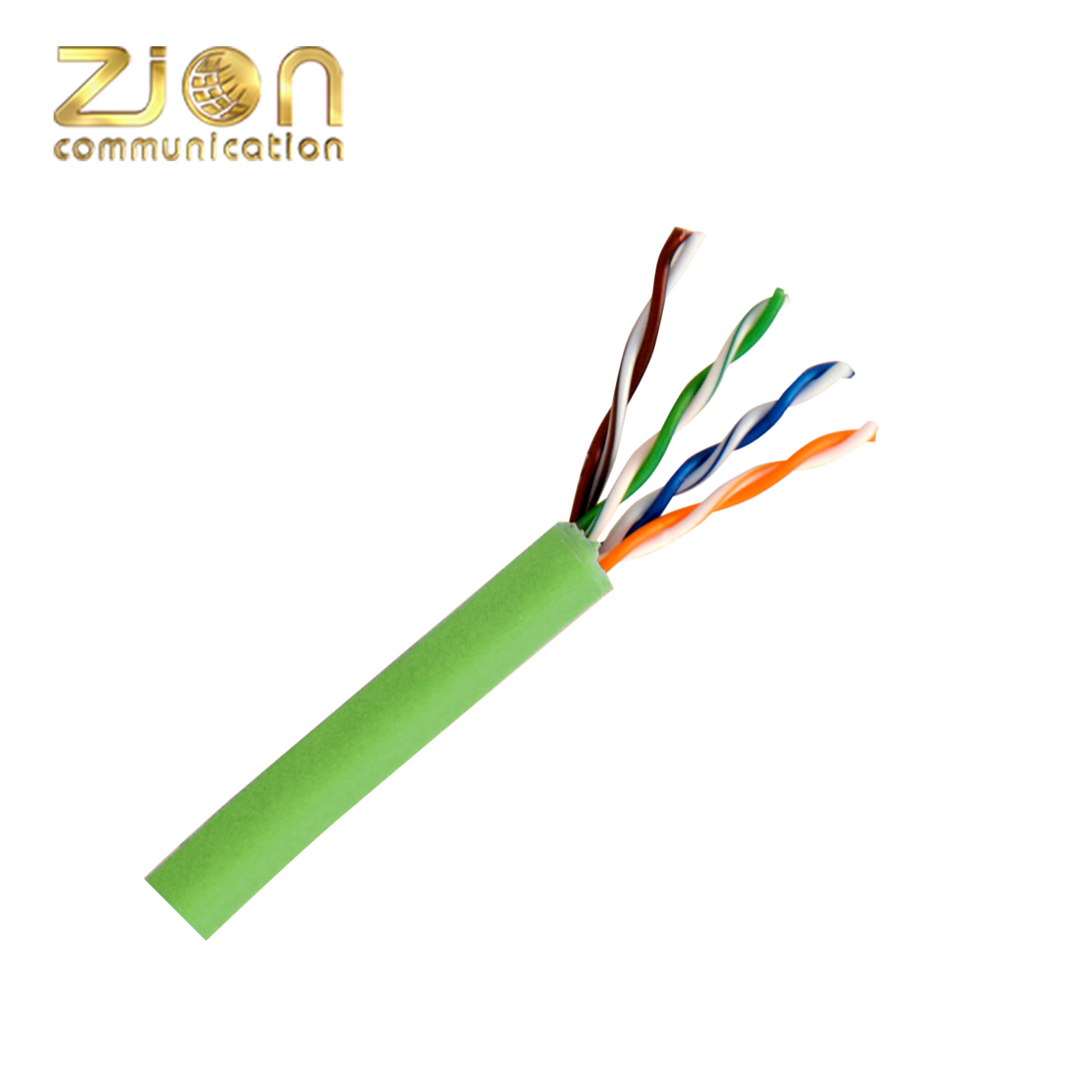

U/UTP CAT 5e BC PVC Solid 0.50mm copper Conductor Indoor PVC Jacket cat5e Network Cable CPR Certified NO 7112102

Basic Information
Place of Origin: China
Certification: CE, RoHS, CPR,ETL, UL
Model Number: 7112102
Minimum Order Quantity: 30.5 KM
Packaging Details: 305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 9050KM / Month
Detail Information
Conductor: Solid Bare Copper Insulation: HDPE
Jacket: PVC Color: Gray/Blue/Yellow/Green/more
Package: 305M/Pull Box, 500M/Wooden Drum Logo: OEM
Shield: UTP, Unshielded Twisted Pair Product Name: U/UTP CAT5E
Connector: RJ45

Product Description

U/UTP CAT 5e Solid 0.50mm copper Conductor, Indoor PVC Jacket Network Cable 7112102


U/UTP CAT 5e PVC-Global Market (NO. 7112102)




Conductor: 0.50mm Solid Bare Copper
Pairs: 4 Pairs
Insulation: 0.91±0.05 mm HDPE
Insulation Colors: Blue-White/Blue, Orange-White/Orange
Green-White/Green, Brown-White/Brown
RipCord: Cotton or Fibre
Out Jacket: 5.1±0.2 mm PVC

※ Conductor from 0.45mm-0.50mm all can pass Fluke test, the Headroom of 0.50mm is bigger than 0.45mm

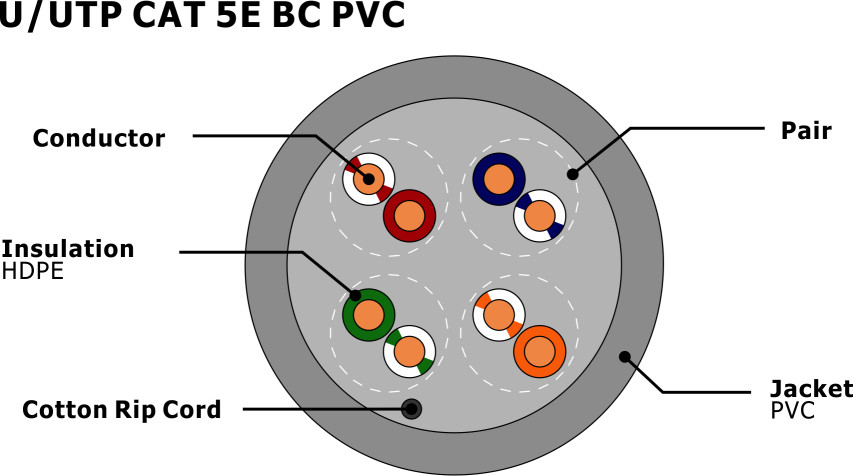

Cross Section

U/UTP CAT 5e BC PVC Solid 0.50mm copper Conductor Indoor PVC Jacket cat5e Network Cable CPR Certified NO 7112102 0


COMPLIANCE ( Reference standard and certificates)

· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399


 Electrical Characteristics

DC Resistance <9.38 Ohms/100m @20℃
DC Resistance unbalance 5% @ 20℃
Mutual Capacitance 5.6 nF/100m
Characteristic Impedance 1 - 100 MHz: 100±15 Ohms
100 - 350 MHz: 100±20 Ohms
Max Frequency 100MHz
Capacitance Unbalance 330 pF/100m
NVP(传输速率) 63%
Delay Skew ≤ 45ns/100m



Pulling Tension(Max) ≥13.5Mpa
Bend Radius(Min) 8×OD of Jacket
Operating Temperature -20 to 80 ℃ (-4 to 167℉)


Performance Characteristics


Frequency RL (Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.2 570.0 45.0 65.0 62.0 61.0 61.0
4 23.0 4.2 552.0 45.0 56.0 53.0 48.0 48.0
10 25.0 6.5 545.0 45.0 50.0 47.0 41.0 41.0
16 25.0 8.4 543.0 45.0 47.0 44.0 36.0 36.0
20 25.0 9.3 542.0 45.0 45.0 42.0 34.0 34.0
31.25 23.6 11.6 540.0 45.0 42.0 39.0 31.0 31.0
62.5 21.5 17.0 539.0 45.0 38.0 35.0 25.0 25.0
100 20.1 22.0 538.0 45.0 35.0 32.0 21.0 21.0

 ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.


Order Information

Marking HELLOSIGNAL NO.7112102 U/UTP CAT5e 4PR 0.5mm Copper PVC ...305M
Inner Package 305m/Spool,305m/Reel (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.


Information on CAT 5e Introduction


CAT 5e cable which is named Category 5e cable, used for the cabling infrastructure of Internet and Ethernet. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T( (Gigabit Ethernet). For more about its key features and applications, please check our complete guide to Cat 5e.




Cat5e can support 1 Gbps, the cabling can support frequencies of up to 100 MHz


Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones




● RJ-45 is the standard connector used with a CAT 5e cable assembly.

   RJ45 is the universal connector used with 99% of network devices.
