F/FTP CAT 6A Network Cable with 500MHz 10Gbps Speed and Bare Copper Conductor for High-Speed Networking

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	HELLOSIGNAL OR OEM
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	NO. 7112332

Minimum Order Quantity:	305M/Spool, 100 spools
Packaging Details:	wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C
Supply Ability:	10000 spools/month, 3050KM/Month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4 Pairs	Type:	F/FTP Cat6a
Jacket:	PVC	Color:	Blue/Grey/......
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Insulation:	Foam PE	Standard 1:	ISO/IEC 11801-1 Ed.1.0
Standard 2:	ANSI/TIA-568-C.2 ANSI/TIA-568.2-D	Standard 3:	UL444、UL1581、UL1666、IEC60332-1、EN50399
Support:	10Gbase-t、1000BASE-T	Shield:	F/FTP, Shielded
Highlight:	10Gbps CAT6 Network Cable , 500Mhz Cat6a Ethernet Cable , PVC Jacket CAT 6A Network Cable

Product Description

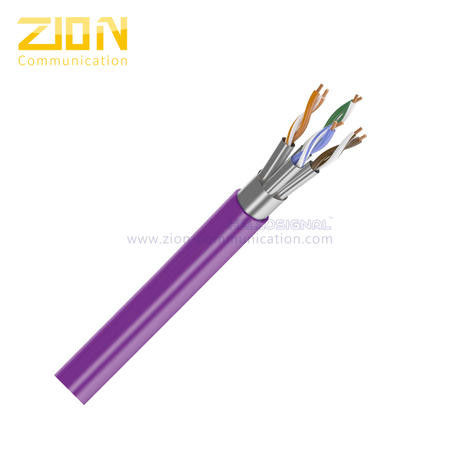

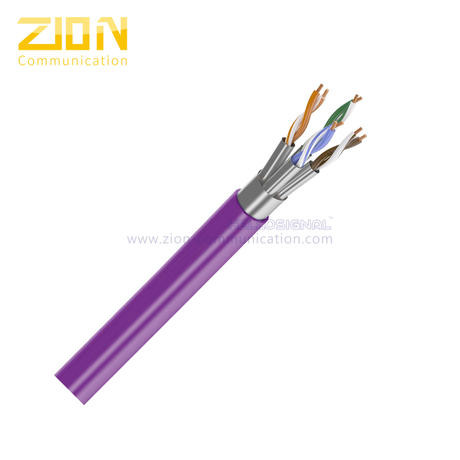

F/FTP CAT 6A PVC Network Cable

High-performance 500MHz, 10Gbps copper conductor network cable with PVC-CPR jacket. Product No. 7112332

Cable Construction

Component	Specification
Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.33±0.05 mm Foam PE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Shielded	AL/PET Foil, 100% Coverage (per pair)
Overall Shield	Aluminum Foil
Drain Wire	0.40±0.005mm TC
RipCord	Cotton or Fibre
Out Jacket	7.5±0.5 mm PVC

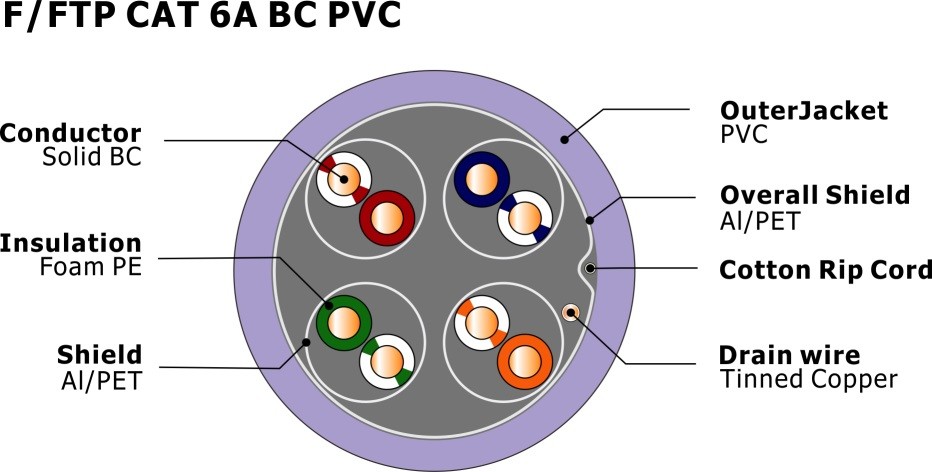

Cross Section

Application Support

10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T
VoIP, ISDN, Token, 100MTPPDM, Analog and Data Video
POE Type 1, 2, 3, 4

Electrical Characteristics

Parameter	Value
DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	4% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1-100 MHz: 100±15 Ohms 100-200 MHz: 100±22 Ohms 200-500 MHz: 100±32 Ohms
Max Frequency	500MHz
Capacitance Unbalance	330 pF/100m
NVP	67%
Delay Skew	≤ 45ns/100m

Performance Characteristics

Frequency (MHz)	RL Min. (dB)	Insertion Loss Max. (dB/100m)	Propagation Delay Max. (ns/100m)	Delay Skew Max. (ns/100m)	NEXT Min. (dB)	PS NEXT Min. (dB)	ELNEXT Min. (dB/100m)	PS ELNEXT Min. (dB/100m)
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45.0	54.8	52.8	41.8	38.8
31.25	23.6	10.7	540.4	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45.0	33.8	31.8	13.8	10.8

*Note: Performance tested under 100M, 20±2℃ conditions

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112332 F/FTP CAT6A 4PR 23AWG PVC ...305M(1000FT) (or per customer request)
Inner Package	305m/Spool, 305m/Reel (or per customer request)
Outer Package	Color Box, Pallet (or per customer request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM

About CAT 6A Cable

Category 6A cable is designed for high-performance network infrastructure supporting frequencies up to 500 MHz and 10Gbps data transmission.

Construction Options

23 AWG Solid Copper conductor
U/UTP: Unshielded twisted pairs without outer shielding
U/FTP: Individually shielded pairs
F/FTP: Individually shielded pairs with outer foil shield
Available in 100M, 305M, 300M, 500M bulk lengths
Jacket materials: PVC, PE, LSZH, CM, CMR, CMP

Applications

10GBASE-T, POE+, HDBASE T
Computers, laptops, televisions, WiFi access points
Network-enabled appliances and telephones

Standards & Certifications

Connectors

RJ-45 standard connectors compatible with 99% of network devices

Manufacturer Profile

Zion Communication is a leading manufacturer and exporter of F/FTP CAT6A PVC jacket cables. With extensive export manufacturing experience and advanced production facilities, we deliver competitive signal and low voltage power transmission products while creating maximum value for our customers.
