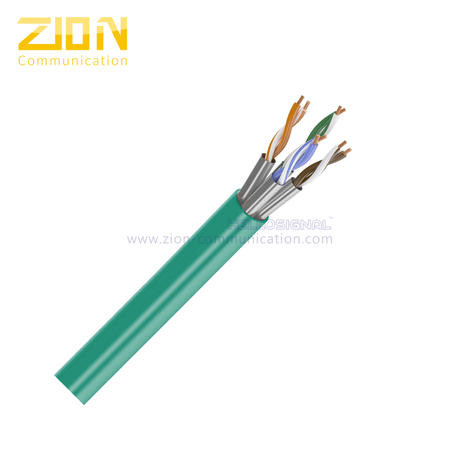

| Place of Origin: | Hangzhou, China |
|---|---|
| Brand Name: | HELLOSIGNAL OR OEM |
| Certification: | UL, ETL, CE,CPR, RoHS |
| Model Number: | NO. 7112326 |
| Minimum Order Quantity: | 305M/Spool, 100 spools |
| Packaging Details: | wooden spool, carton, pallet |
| Delivery Time: | Normally 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 spools/month, 3050KM/Month |
| Number Of Conductors: | 4 Pairs | Type: | U/ftp Cat6a |
|---|---|---|---|
| Jacket: | LSZH | Color: | Blue/Grey/...... |
| Conductor: | Bare Copper | Application: | Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer |
| Insulation: | Foam PE | Standard 1: | ISO/IEC 11801-1 Ed.1.0 |
| Standard 2: | ANSI/TIA-568-C.2 ANSI/TIA-568.2-D | Standard 3: | UL444、UL1581、UL1666、IEC60332-1、EN50399 |
| Support: | 10Gbase-t、1000BASE-T | Shield: | U/FTP, Shielded |
| Highlight: | LSZH Cat6a Ethernet Cable,CPR CAT6 Network Cable,U/FTP CAT6 Network Cable |
||
| Conductor: | 0.57±0.005mm Solid Bare Copper | |||||
| Pairs: | 4 Pairs | |||||
| Insulation: | 1.33±0.05 mm Foam PE | |||||
| Insulation Colors: | Blue-White/Blue, Orange-White/Orange | |||||
| Green-White/Green, Brown-White/Brown | ||||||
| Shielded | AL/PET Foil,100% Coverage | |||||
| Cover every pair | ||||||
| Drain Wire | 0.40±0.005mm TC | |||||
| RipCord: | Cotton or Fibre | |||||
| Out Jacket: | 7.3±0.5 mm LSZH | |||||
| DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| DC Resistance unbalance | 4% @ 20℃ | |||||||
| Mutual Capacitance | 5.6 nF/100m | |||||||
| Characteristic Impedance | 1 - 100 MHz: 100±15 Ohms | |||||||
| 100 - 200 MHz: 100±22 Ohms | ||||||||
| 200 - 500 MHz: 100±32 Ohms | ||||||||
| Max Frequency | 500MHz | |||||||
| Capacitance Unbalance | 330 pF/100m | |||||||
| NVP | 67% | |||||||
| Delay Skew | ≤ 45ns/100m | |||||||
| Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PS NEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20.0 | 2.1 | 570.0 | 45.0 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 6.0 | 545.4 | 45.0 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.5 | 542.1 | 45.0 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.7 | 540.4 | 45.0 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 538.6 | 45.0 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.8 | 537.6 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 29.0 | 536.1 | 45.0 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 36.4 | 536.1 | 45.0 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 43.0 | 535.8 | 45.0 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 535.6 | 45.0 | 33.8 | 31.8 | 13.8 | 10.8 |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
| Marking | HELLOSIGNAL NO.7112326 U/FTP CAT6A 4PR 23AWG LSZH ...305M(1000FT) (or Per customer's request) | |||||||
| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
