Place of Origin: | China |
---|---|
Brand Name: | OEM or HELLOSIGNAL |
Certification: | CE, RoHS, CPR |
Model Number: | 7112222 |
Minimum Order Quantity: | 30.5 KM |
Packaging Details: | 305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool |
Delivery Time: | 25 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000KM / Month |
Conductor: | Solid Bare Copper | Insulation: | HDPE |
---|---|---|---|
Jacket: | PVC | Color: | Black |
Package: | 305M/Pull Box, 500M/Wooden Drum | Logo: | OEM |
Application: | Telcommunication, Networking, Telecom/CATV,computer,security | Shield: | SF/UTP |
Product Name: | SF/UTP CAT6, CAT 6 250Mhz-500Mhz | Pairs: | 4 Pairs |
High Light: | SF/UTP Category 6 Network Cable,CPR Certified Category 6 Network Cable,PVC Jacket Category 6 Network Cable |

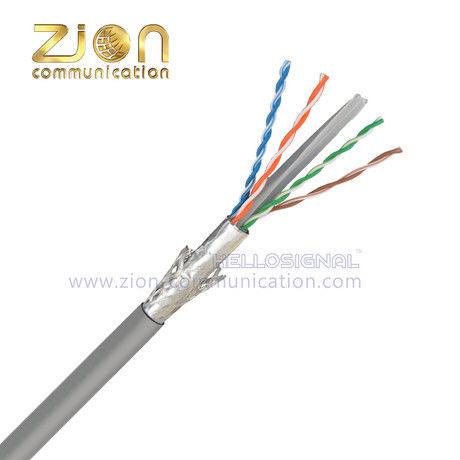

SF/UTP CAT6 0.57mm Copper Conductor PVC Jacket Category 6 Ethernet Indoor Cable CE/CPR/Delta NO.7112222
SF/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, indoor PVC Jacket Network Cable, CPR Certified,7112222
SF/UTP CAT 6 PVC-Global Market (NO. 7112222)

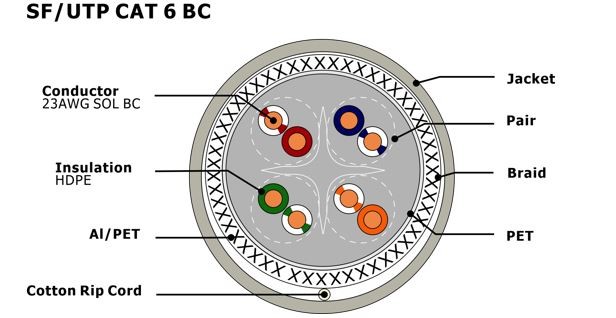

Construction
Conductor: | 0.57±0.005mm Solid Bare Copper | |||||
Pairs: | 4 Pairs | |||||
Insulation: | 1.18±0.05 mm HDPE | |||||
Insulation Colors: | Blue-White/Blue, Orange-White/Orange | |||||
Green-White/Green, Brown-White/Brown | ||||||
Cross Section | Modified Polyethylene | |||||
Shielded 1 | PET Foil | |||||
Shielded 2 | Al/PET Foil, Foil face out | |||||
Shielded 3 | Al_Mg Braiding | |||||
Out Jacket: | 7.7±0.3 mm PVC |
※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm
COMPLIANCE ( Reference standard and certificates)
· ISO/IEC 11801-1 Ed.1.0 | ||||||||
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | ||||||||
· UL444,UL1581,UL1666,IEC60332-1,EN50399 |
Electrical Characteristics
DC Resistance | <9.38 Ohms/100m @20℃ | |||||||
DC Resistance unbalance | 5% @ 20℃ | |||||||
Mutual Capacitance | 5.6 nF/100m | |||||||
Characteristic Impedance | 1 - 100 MHz: 100±15 Ohms | |||||||
100 - 250 MHz: 100±20 Ohms | ||||||||
Max Frequency | 250MHz | |||||||
Capacitance Unbalance | 330 pF/100m | |||||||
NVP | 63% | |||||||
Delay Skew | ≤ 45ns/100m |
PHYSICAL PROPERTIES
Pulling Tension(Max) | ≥13.5Mpa | |||||||
Bend Radius(Min) | 8×OD of Jacket | |||||||
Operating Temperature | -20 to 80 ℃ (-4 to 167℉) |
Performance Characteristics
Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PS NEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 20.0 | 2.0 | 570.0 | 45.0 | 74.0 | 72.0 | 67.8 | 64.8 |
4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.0 | 63.0 | 55.7 | 52.7 |
10 | 25.0 | 6.0 | 545.0 | 45.0 | 59.0 | 57.0 | 47.8 | 44.8 |
16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.0 | 54.0 | 43.7 | 40.7 |
20 | 25.0 | 8.5 | 542.0 | 45.0 | 55.0 | 53.0 | 41.7 | 38.7 |
31.25 | 23.6 | 10.7 | 540.0 | 45.0 | 52.0 | 50.0 | 37.9 | 34.9 |
62.5 | 21.5 | 15.4 | 539.0 | 45.0 | 47.0 | 45.0 | 31.8 | 28.8 |
100 | 20.1 | 19.8 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
200 | 18.0 | 29.0 | 537.0 | 45.0 | 39.7 | 37.7 | 21.7 | 18.7 |
250 | 17.3 | 32.8 | 536.0 | 45.0 | 38.0 | 36.0 | 19.8 | 16.8 |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Information
Marking | HELLOSIGNAL NO.7112222 SF/UTP CAT6 4PR 0.57mm Copper PVC Jacket ...305M(1000FT) (or Per customer's request) | |||||||
Inner Package | 305M/Wooden Drum, 500M/Wooden Spool (or Per customer's request) | |||||||
Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM |
Information on CAT6 Introduction
CAT 6 cable which is named Category 6 cable, used for the cabling infrastructure of Internet and Ethernet.
Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e.
The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.
For more about its key features and applications, please check our complete guide to Cat 6 cable.
Applications
● Cat6 can support 10 Gbps, the cabling can support frequencies of up to 250 MHz
● 10GBASE-T/POE/VOIP
● Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones
● Reference Standard and Certificates
● ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399
● UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS
Connectors
● RJ-45 is the standard connector used with a Cat6 cable assembly.
RJ45 is the universal connector used with 99% of network devices.
