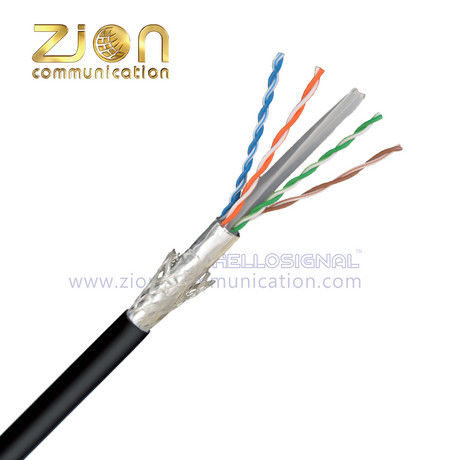

Outdoor PE Jacket SF/UTP CAT6 Ethernet Cable with Solid Bare Copper Conductor and CPR Certification

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR
Model Number:	7112221

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PE	Color:	Black
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Application:	Telcommunication, Networking, Telecom/CATV,computer,security	Shield:	SF/UTP
Product Name:	SF/UTP CAT6, CAT 6 250Mhz-500Mhz	Pairs:	4 Pairs
Highlight:	PE Jacket Category 6 Network Cable , PE Jacket Category 6 Ethernet Cable , Outdoor CAT6 Network Cable

Product Description

Outdoor SF/UTP CAT6 PE Jacket Category 6 Ethernet Cable

Product No. 7112221

SF/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, Outdoor PE Jacket Network Cable, CPR Certified

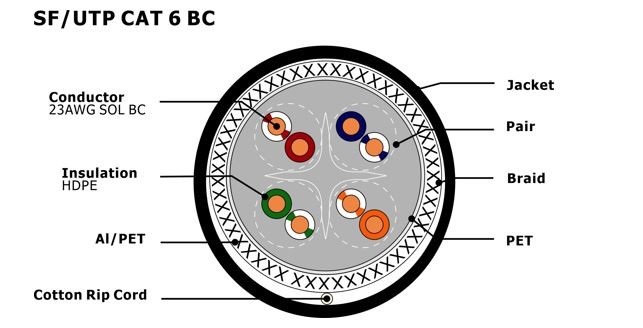

Product Construction

Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.18±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
Shielded 1	PET Foil
Shielded 2	Al/PET Foil, Foil face out
Shielded 3	Al_Mg Braiding
Outer Jacket	7.7±0.3 mm UV-PE

※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PS NEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

※ Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking	HELLOSIGNAL NO.7112221 SF/UTP CAT6 4PR 0.57mm Copper PE Jacket ...305M(1000FT) (or Per customer's request)
Inner Package	305M/Wooden Drum, 500M/Wooden Spool (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery Time	Normally 25 days after received the deposit
Brand	HELLOSIGNAL® OR OEM

CAT6 Cable Overview

CAT 6 cable, also known as Category 6 cable, is used for the cabling infrastructure of Internet and Ethernet networks. Cat 6 meets more stringent specifications for crosstalk and system noise than Cat 5e. The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

Applications

High-Speed Networking
Supports 10 Gbps with frequencies up to 250 MHz

Network Protocols
10GBASE-T/POE/VOIP

Device Connectivity
Computers, Laptops, Televisions, WiFi access points, Network-enabled appliances, Telephones

Standard Connectors

RJ-45 is the standard connector used with Cat6 cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Manufacturing Excellence

Zion Communication - Professional SF/UTP CAT6 PE LAN Cable Manufacturer from China

Industry Leadership
One of the top manufacturers and exporters of SF/UTP CAT6 PE jacket cables

Export Expertise
Extensive experience in manufacturing for export markets

Customer Focus
Providing competitive signal & low voltage power transmission products and services

Advanced Production
State-of-the-art equipment and skilled engineering teams

Competitive Advantages

Quality Control
Comprehensive quality checks from raw materials to final products

R&D Innovation
Continuous development of element technologies to support customer growth

Customer Service
24/7 support and effective communication for urgent needs

Product Range
Over 1000 kinds of cables, connectors and assemblies available

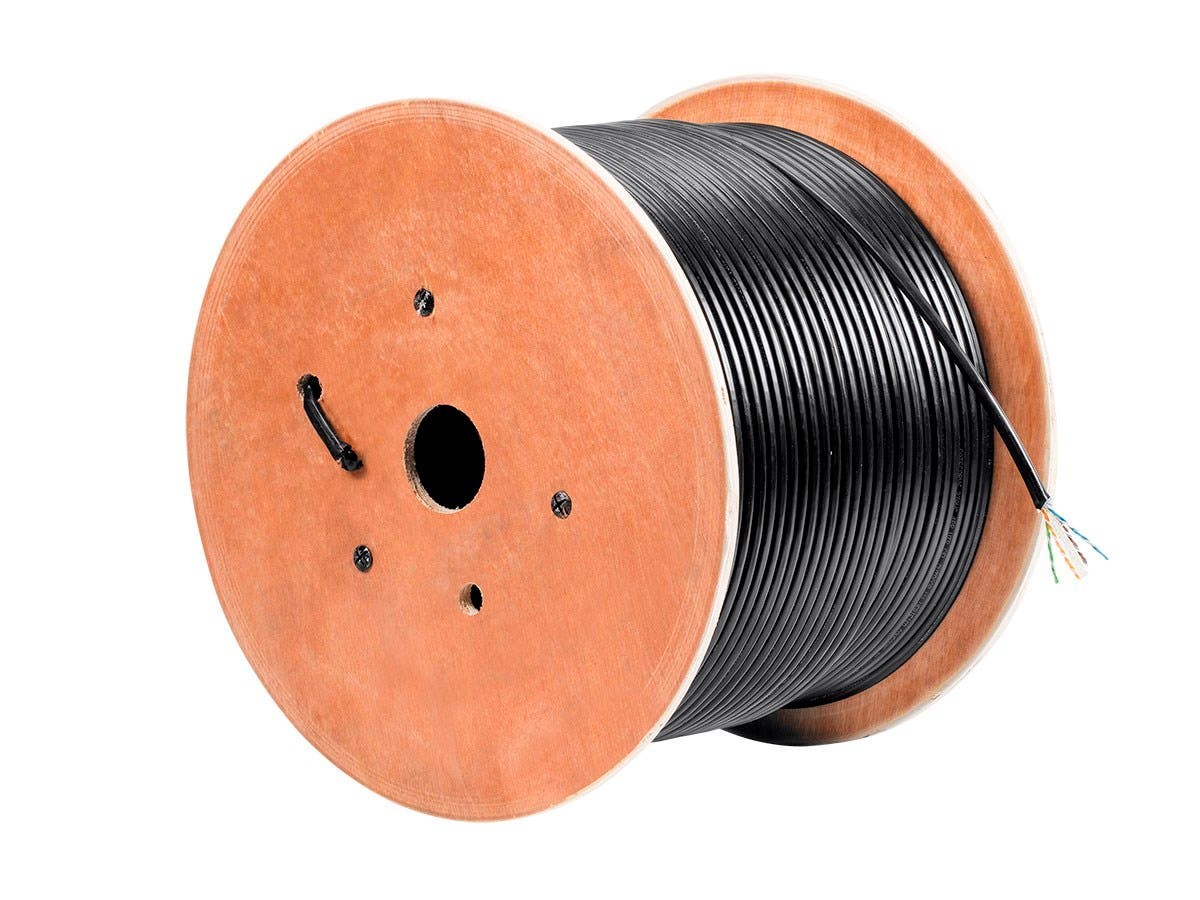

Packing Design
