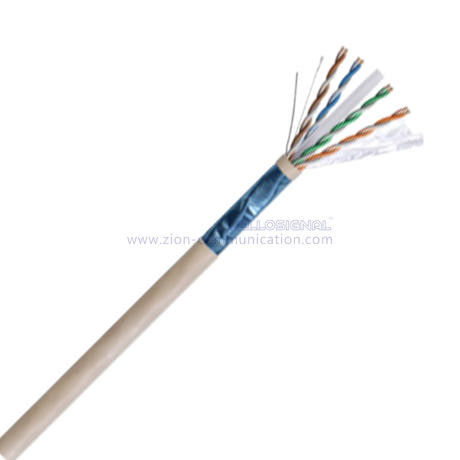

F/UTP CAT6 Network Cable with 0.57mm Copper Conductor LSZH Jacket and CPR Certification for Indoor Use

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR
Model Number:	7112216

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	LSZH	Color:	Black
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	LSZH Jacket Category 6 Network Cable , HDPE Category 6 Ethernet Cable , F/UTP Category 6 Network Cable

Product Description

F/UTP 0.57mm Copper Conductor Indoor HDPE Category 6 Ethernet Cable LSZH Jacket

F/UTP CAT6 BC LSZH 0.57mm Copper Conductor HDPE Category 6 Ethernet Indoor Cable LSZH Jacket CPR NO.7112216

Product Specifications

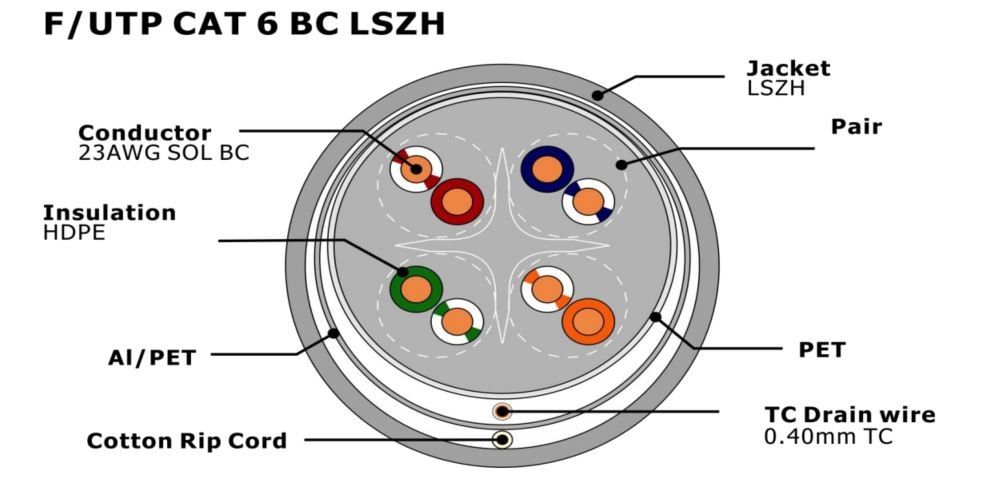

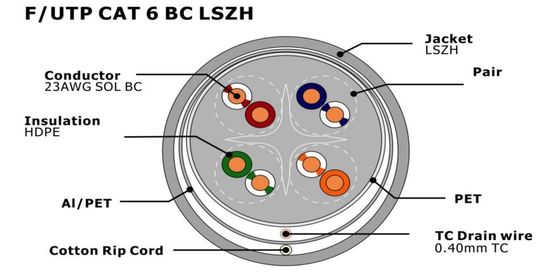

Construction

Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.14±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
Shield 1	PET Foil
Drain Wire	0.4mmTC/0.5mm CCS
Shield 2	Al/PET Foil, Foil Face Out
RipCord	Cotton or Fibre
Out Jacket	7.4±0.3 mm LSZH

Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PS NEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking	HELLOSIGNAL NO.7112216 F/UTP CAT6 4PR 0.57mm Copper LSZH Jacket ...305M(1000FT) (or Per customer's request)
Inner Package	305M/Pull Box, 500M/Wooden Spool (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

Category 6 Cable Overview

CAT 6 cable, named Category 6 cable, is used for the cabling infrastructure of Internet and Ethernet. Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e. The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

Applications

Supports 10 Gbps with frequencies up to 250 MHz
10GBASE-T/POE/VOIP
Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones

Connectors

RJ-45 is the standard connector used with a Cat6 cable assembly. RJ45 is the universal connector used with 99% of network devices.

Manufacturing Excellence

Zion Communication is a leading manufacturer and exporter of F/UTP CAT6 LSZH jacket cables with extensive experience in manufacturing for export markets.

Quality Control Process

Incoming material inspection by QC
Manufacturing Process Control
Regular worker training programs
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Comprehensive quality control and final inspection

Packing Design
