Place of Origin: | China |
---|---|
Brand Name: | OEM or HELLOSIGNAL |
Certification: | ETL,UL |
Model Number: | 7112215 |
Minimum Order Quantity: | 30.5 KM |
Packaging Details: | 305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool |
Delivery Time: | 25 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000KM / Month |
Conductor: | Solid Bare Copper | Insulation: | FEP |
---|---|---|---|
Jacket: | Plenum PVC | Color: | White |
Package: | 305M/Pull Box, 500M/Wooden Drum | Logo: | OEM |
High Light: | 0.57mm Copper Conductor CAT6 Network Cable,F/UTP CAT6 Network Cable,ETL Category 6 Ethernet Cable |

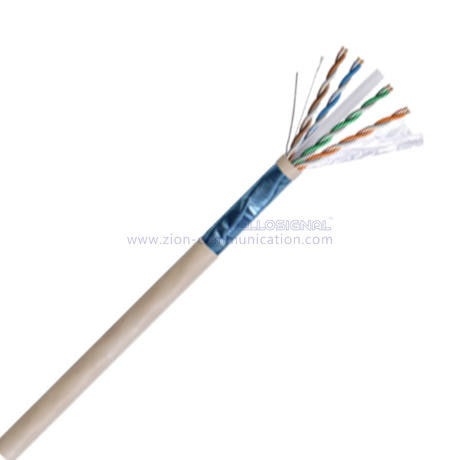

F/UTP CAT6 CMP 0.57mm Copper Conductor HDPE Category 6 Ethernet Cable CMP UL/ETL NO.7112215
F/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, Plenum PVC Jacket Network Cable, UL/ETL CMP,7112215
F/UTP CAT 6 Plenum PVC-Global Market (NO. 7112215)

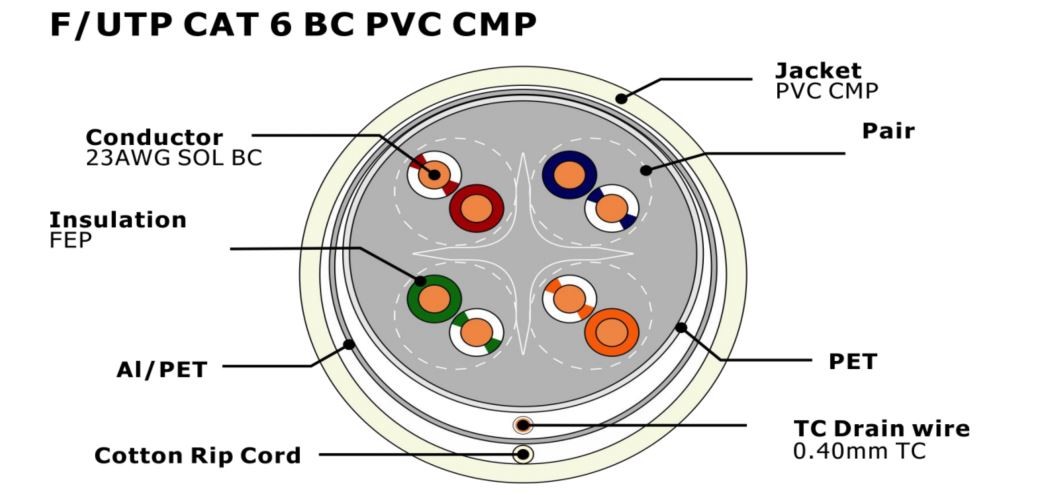

Construction
Conductor: | 0.57±0.005mm Solid Bare Copper | |||||
Pairs: | 4 Pairs | |||||
Insulation: | 1.14±0.05 mm FEP | |||||
Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||
Green-White/Green,Brown-White/Brown | ||||||
Cross Section | FEP or LSZH Cross web | |||||
Shield 1 | PET Foil | |||||
Drain Wire | 0.4mmTC | |||||
Shield 2 | Al/PET Foil, Foil Face Out | |||||
Rip Cord | Kevlar | |||||
Out Jacket: | 7.4±0.3 mm Plenum PVC |
※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm
COMPLIANCE ( Reference standard and certificates)
· ISO/IEC 11801-1 Ed.1.0 | ||||||||
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | ||||||||
· UL444,UL1581,UL1666,IEC60332-1,EN50399 |
Electrical Characteristics
DC Resistance | <9.38 Ohms/100m @20℃ | |||||||
DC Resistance unbalance | 5% @ 20℃ | |||||||
Mutual Capacitance | 5.6 nF/100m | |||||||
Characteristic Impedance | 1 - 100 MHz: 100±15 Ohms | |||||||
100 - 250 MHz: 100±20 Ohms | ||||||||
Max Frequency | 250MHz | |||||||
Capacitance Unbalance | 330 pF/100m | |||||||
NVP | 63% | |||||||
Delay Skew | ≤ 45ns/100m |
PHYSICAL PROPERTIES
Pulling Tension(Max) | ≥13.5Mpa | |||||||
Bend Radius(Min) | 8×OD of Jacket | |||||||
Operating Temperature | -20 to 80 ℃ (-4 to 167℉) |
Performance Characteristics
Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PS NEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 20.0 | 2.0 | 570.0 | 45.0 | 74.0 | 72.0 | 67.8 | 64.8 |
4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.0 | 63.0 | 55.7 | 52.7 |
10 | 25.0 | 6.0 | 545.0 | 45.0 | 59.0 | 57.0 | 47.8 | 44.8 |
16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.0 | 54.0 | 43.7 | 40.7 |
20 | 25.0 | 8.5 | 542.0 | 45.0 | 55.0 | 53.0 | 41.7 | 38.7 |
31.25 | 23.6 | 10.7 | 540.0 | 45.0 | 52.0 | 50.0 | 37.9 | 34.9 |
62.5 | 21.5 | 15.4 | 539.0 | 45.0 | 47.0 | 45.0 | 31.8 | 28.8 |
100 | 20.1 | 19.8 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
200 | 18.0 | 29.0 | 537.0 | 45.0 | 39.7 | 37.7 | 21.7 | 18.7 |
250 | 17.3 | 32.8 | 536.0 | 45.0 | 38.0 | 36.0 | 19.8 | 16.8 |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Information
Marking | HELLOSIGNAL NO.7112215 F/UTP CAT6 4PR 0.57mm Copper Plenum PVC Jacket ...305M(1000FT) (or Per customer's request) | |||||||
Inner Package | 305M/Pull Box , 500M/Wooden Spool (or Per customer's request) | |||||||
Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM |
Information on CAT6 Introduction
CAT 6 cable which is named Category 6 cable, used for the cabling infrastructure of Internet and Ethernet.
Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e.
The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.
For more about its key features and applications, please check our complete guide to Cat 6 cable.
Applications
● Cat6 can support 10 Gbps, the cabling can support frequencies of up to 250 MHz
● 10GBASE-T/POE/VOIP
● Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones
● Reference Standard and Certificates
● ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399
● UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS
Connectors
● RJ-45 is the standard connector used with a Cat6 cable assembly.
RJ45 is the universal connector used with 99% of network devices.
Professional F/UTP CAT6 Plenum PVC Lan cable manufacturer from China
● Zion Communication is one of the top manufacturers and exporters of F/utp cat6 plenum PVC jacket
● Extensive experience in manufacturing for export and problem-solving of F/utp cat6 plenum PVC jacket
● Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!
● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best F/utp cat6 plenum PVC jacket to our customers.
● Our management and international sales teams are committed to our customers' utmost satisfaction.
Competitive Advantage:
1, Quality Control: from raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each workstation
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
Packing Design
