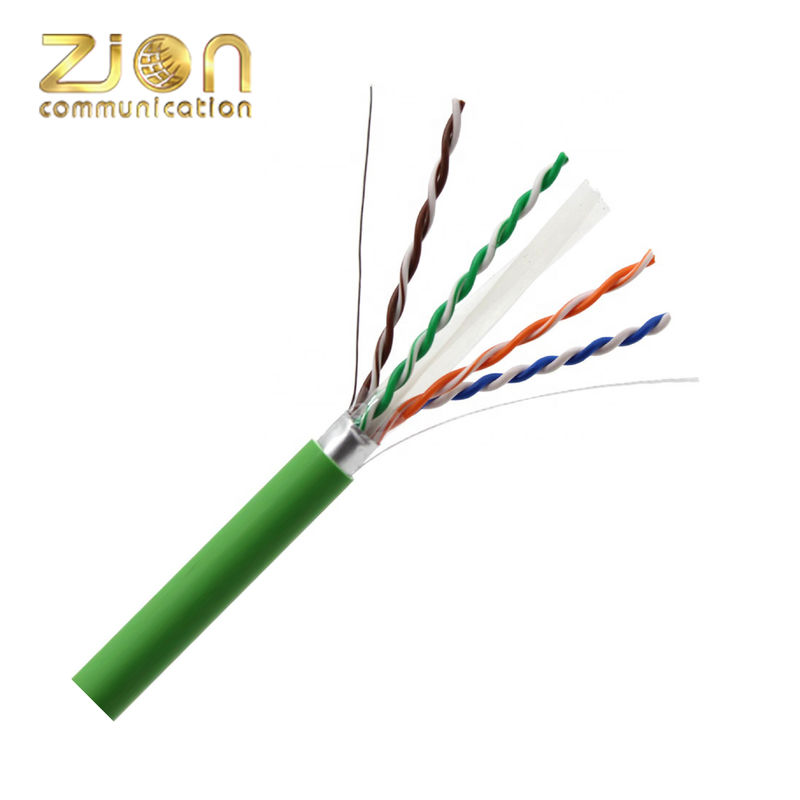

F/UTP CAT6 Ethernet Cable with 0.57mm Copper Conductor PVC Jacket and CPR Certification for Indoor LAN Networks

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112212

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PVC	Color:	Black
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	0.57mm Copper Conductor CAT6 Ethernet Cable , CPR Certified F/UTP Network Cable , PVC Jacket Indoor LAN Cable

Product Description

F/UTP CAT6 BC PVC 0.57mm Copper Conductor HDPE Category 6 Ethernet Indoor Cable

F/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, Indoor PVC Jacket Network Cable, CPR Certified (7112212)

Cable Construction

Component	Specification
Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.14±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
Shield 1	PET Foil
Drain Wire	0.4mmTC/0.5mm CCS
Shield 2	Al/PET Foil, Foil Face Out
Rip Cord	Cotton or Fibre
Out Jacket	7.4±0.3 mm PVC

Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1-100 MHz: 100±15 Ohms; 100-250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Value
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PS NEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112212 F/UTP CAT6 4PR 0.57mm Copper PVC Jacket ...305M(1000FT) (or Per customer's request)
Inner Package	305M/Pull Box, 500M/Wooden Spool (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery Time	Normally 25 days after received the deposit
Brand	HELLOSIGNAL® OR OEM

CAT6 Cable Overview

CAT 6 cable, also known as Category 6 cable, is used for the cabling infrastructure of Internet and Ethernet networks. Cat 6 must meet more stringent specifications for crosstalk and system noise than Cat 5e. The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

Applications

Supports 10 Gbps with frequencies up to 250 MHz
10GBASE-T/POE/VOIP
Computers and Laptops/Televisions/WiFi access points/Network enabled appliances/Telephones

Connectors

RJ-45 is the standard connector used with Cat6 cable assemblies. RJ45 is the universal connector used with 99% of network devices.

Manufacturing Excellence

Zion Communication is a leading manufacturer and exporter of F/UTP CAT6 indoor PVC jacket cables with extensive experience in manufacturing for export markets.

Quality Control

Incoming material inspection by QC
Manufacturing Process Control
Regular worker training programs
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Comprehensive quality control and final inspection

Packing Design
