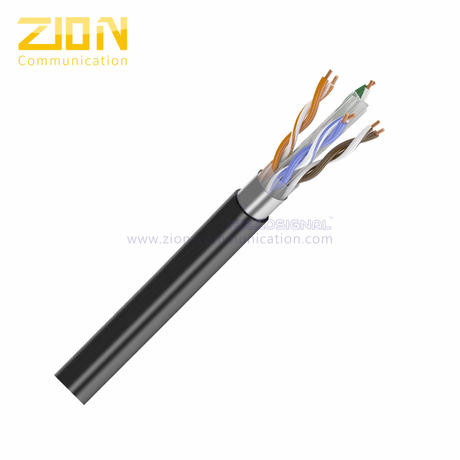

0.57mm Copper Conductor HDPE CAT6 Ethernet Cable PE Black Jacket CPR NO.7112211

Basic Information
Place of Origin: China
Certification: CE, RoHS, CPR,ETL, UL
Model Number: 7112211
Minimum Order Quantity: 30.5 KM
Packaging Details: 305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Solid Bare Copper Insulation: HDPE
Jacket: PE Color: Black
Package: 305M/Pull Box, 500M/Wooden Drum Logo: OEM
High Light:

F/UTP CAT6 Ethernet Cable


0.57mm Copper Conductor CAT6 Ethernet Cable


PE Black Jacket CAT6 Ethernet Cable

Product Description

F/UTP CAT6 BC PE 0.57mm Copper Conductor HDPE Category 6 Ethernet Outdoor Cable PE Black Jacket CPR NO.7112211

F/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, Outdoor PE Jacket Network Cable, CPR Certified,7112211



F/UTP CAT 6 PE-Global Market (NO. 7112211)



Conductor: 0.57±0.005mm Solid Bare Copper
Pairs: 4 Pairs
Insulation: 1.14±0.05 mm HDPE
Insulation Colors: Blue-White/Blue,Orange-White/Orange
Cross Section Modified Polyethylene
Shield 1 PET Foil
Drain Wire 0.4mmTC/0.5mm CCS
Shield 2 Al/PET Foil, Foil Face Out
Rip Cord: Cotton or Fibre
Out Jacket: 7.4±0.3 mm PE

※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm


COMPLIANCE ( Reference standard and certificates)

· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399


 Electrical Characteristics

DC Resistance <9.38 Ohms/100m @20℃
DC Resistance unbalance 5% @ 20℃
Mutual Capacitance 5.6 nF/100m
Characteristic Impedance 1 - 100 MHz: 100±15 Ohms
100 - 250 MHz: 100±20 Ohms
Max Frequency 250MHz
Capacitance Unbalance 330 pF/100m
NVP 63%
Delay Skew ≤ 45ns/100m



Pulling Tension(Max) ≥13.5Mpa
Bend Radius(Min) 8×OD of Jacket
Operating Temperature -20 to 80 ℃ (-4 to 167℉)


Performance Characteristics

Frequency RL (Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PS NEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.0 570.0 45.0 74.0 72.0 67.8 64.8
4 23.0 3.8 552.0 45.0 65.0 63.0 55.7 52.7
10 25.0 6.0 545.0 45.0 59.0 57.0 47.8 44.8
16 25.0 7.6 543.0 45.0 56.0 54.0 43.7 40.7
20 25.0 8.5 542.0 45.0 55.0 53.0 41.7 38.7
31.25 23.6 10.7 540.0 45.0 52.0 50.0 37.9 34.9
62.5 21.5 15.4 539.0 45.0 47.0 45.0 31.8 28.8
100 20.1 19.8 538.0 45.0 44.3 42.3 27.8 24.8
200 18.0 29.0 537.0 45.0 39.7 37.7 21.7 18.7
250 17.3 32.8 536.0 45.0 38.0 36.0 19.8 16.8

 ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.


Order Information

Marking HELLOSIGNAL NO.7112211 F/UTP CAT6 4PR 0.57mm Copper PE Jacket ...305M(1000FT) (or Per customer's request)
Inner Package 305M/Pull Box , 500M/Wooden Spool (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.


Information on CAT6 Introduction


CAT 6 cable which is named Category 6 cable, used for the cabling infrastructure of Internet and Ethernet.

Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e.

The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

For more about its key features and applications, please check our complete guide to Cat 6 cable.



● Cat6 can support 10 Gbps, the cabling can support frequencies of up to 250 MHz


● Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones

● Reference Standard and Certificates

● ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399




● RJ-45 is the standard connector used with a Cat6 cable assembly.

   RJ45 is the universal connector used with 99% of network devices.


Professional F/UTP CAT6 outdoor Lan cable manufacturer from China

● Zion Communication is one of the top manufacturers and exporters of F/utp cat6 outdoor PE jacket

● Extensive experience in manufacturing for export and problem-solving of F/utp cat6 outdoor PE jacket

● Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!

● Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best F/utp cat6 outdoor PE jacket to our customers.

● Our management and international sales teams are committed to our customers' utmost satisfaction.


Competitive Advantage:


1,  Quality Control: from raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each workstation

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery


Wooden Packing
