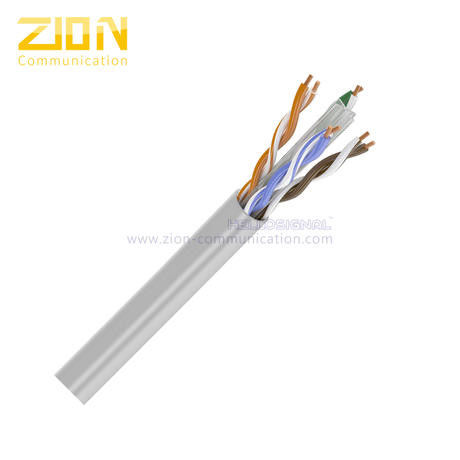

U/UTP CAT6 Network Cable with LSZH Jacket 0.57mm Copper Conductor and CPR Certified for High-Speed Data Transmission

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112206

Minimum Order Quantity:	30.5 KM

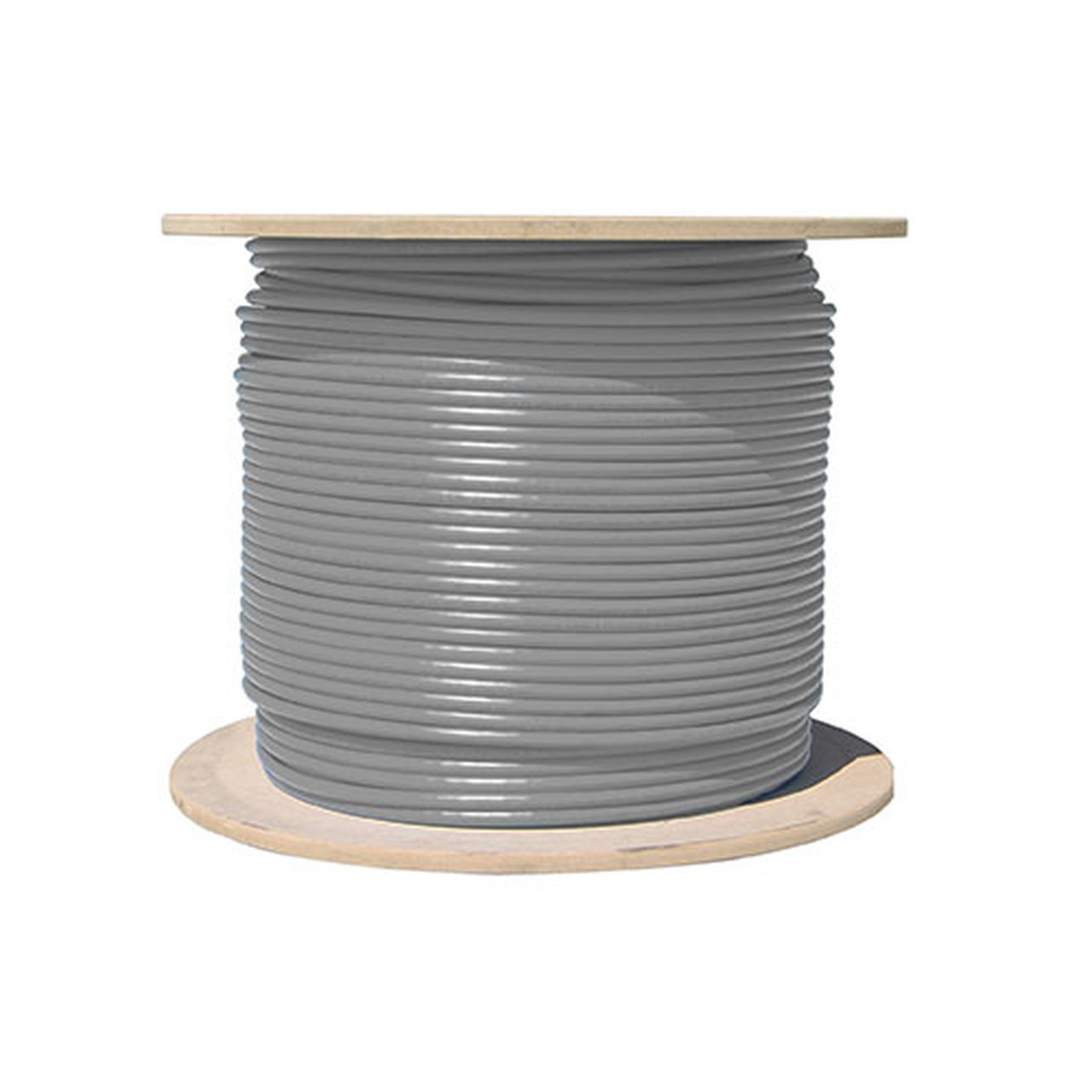

Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	LSZH	Color:	White/Purple/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	LSZH Jacket CAT6 Network Cable , 0.57mm Copper CAT6 Network Cable , HDPE CAT6 Network Cable

Product Description

U/UTP CAT6 BC LSZH 0.57mm Copper LSZH Jacket CAT6 Network Cable CPR Certified 7112206

U/UTP CAT 6 Solid 0.57mm copper Conductor, LSZH Jacket Network Cable, CPR Certified, 7112206

U/UTP CAT 6 LSZH-Global Market (NO. 7112206)

Construction

Component	Specification
Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.02±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
RipCord	Cotton or Fibre
Out Jacket	6.3±0.3 mm LSZH

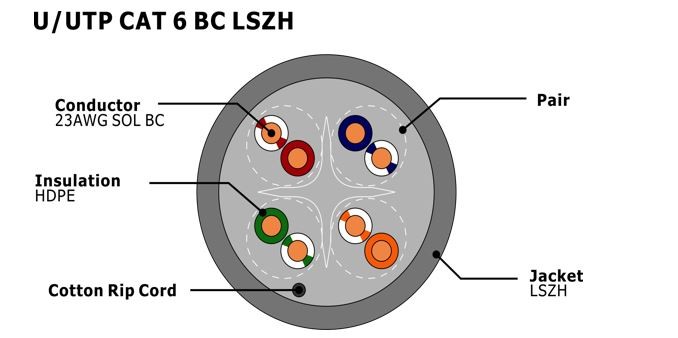

Cross Section

Compliance & Certifications

Reference standards and certificates:

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	65%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Value
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-30 to 50 ℃

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

※Note: The above transmission performance tested under 100M, 20±2℃ conditions.

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112206 U/UTP CAT6 4PR 23AWG PVC LSZH ...305M
Inner Package	1000FT/Pull Box (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

CAT6 Cable Overview

CAT 6 cable, also known as Category 6 cable, is used for the cabling infrastructure of Internet and Ethernet networks. Cat 6 has to meet more stringent specifications for crosstalk and system noise than Cat 5e. The cable standard specifies performance of up to 250 MHz, compared to 100 MHz for Cat 5e.

Applications

Supports 10 Gbps with frequencies up to 250 MHz
10GBASE-T/POE/VOIP
Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones

Reference Standards and Certificates

ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399
UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS

Connectors

RJ-45 is the standard connector used with a Cat6 cable assembly. RJ45 is the universal connector used with 99% of network devices.

Manufacturer Profile

Zion Communication is a professional U/UTP CAT6 LSZH LAN cable manufacturer from China with extensive experience in manufacturing for export and problem-solving of U/UTP CAT6 LSZH cables.

Company Focus

Focuses on customer needs: providing competitive signal & low voltage power transmission products and services
Continuously creates maximum value for customers
Advanced production equipment and excellent engineering team
Skilled workforce ensuring product quality
Management and international sales teams committed to customer satisfaction

Competitive Advantages

Quality Control: Comprehensive checks from raw materials to final products
- Incoming material inspection by QC
- Manufacturing Process Control
- Daily/weekly/monthly worker training
- Work instructions manual at each workstation
- 5S system implementation
- Machine maintenance procedures
- Quality Control and Final Inspection
R&D Capabilities: Reinforcing and developing element technologies to support customer growth
Customer Service: 24/7 support with effective communication
Product Range: Over 1000 kinds of cables, connectors, and assemblies
Timely Delivery: Professional response to inquiries and on-time delivery
