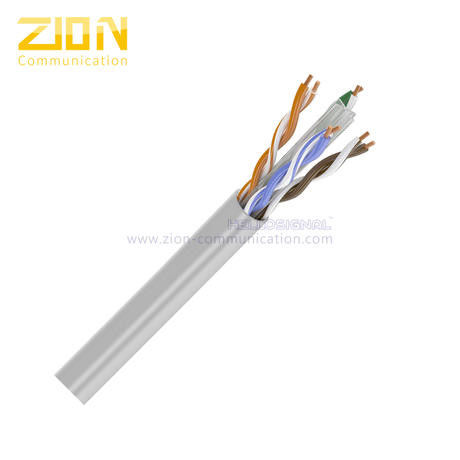

U/UTP CAT6 Network Cable with Solid Bare Copper Conductor CPR Certified for 250MHz Frequency Ethernet Applications

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112202-053

Minimum Order Quantity:	30.5 KM

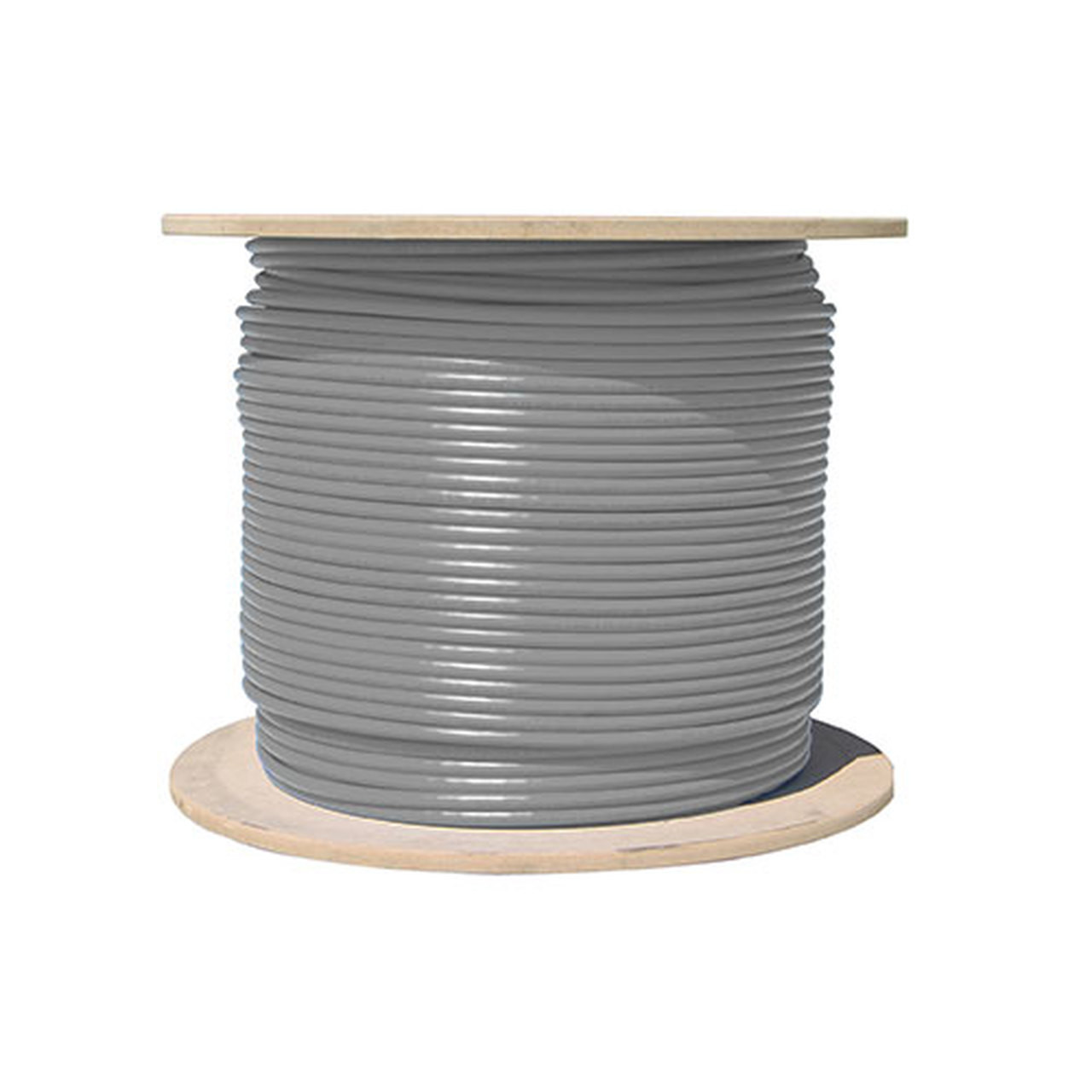

Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PVC	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	0.53mm Copper Conductor CAT6 Network Cable , PVC Jacket CAT6 Network Cable , CPR CAT6 Network Cable

Product Description

U/UTP CAT6 BC PVC Solid 0.53mm Copper Conductor Indoor PVC Jacket Network Cable

CPR Certified NO 7112202-053

Product Overview

U/UTP CAT 6 Solid 0.53mm Copper Conductor, Indoor PVC Jacket Network Cable, CPR Certified, 7112202-053

U/UTP CAT 6 PVC-Global Market (NO. 7112202-053)

Cable Construction

Component	Specification
Conductor	0.53±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.02±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
RipCord	Cotton or Fibre
Outer Jacket	6.3±0.3 mm PVC

※ Conductor from 0.53mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.53mm

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Specification
DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance Unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Specification
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Tested at 20±2℃ for 100m length:

Freq (MHz)	RL (Min.) dB	Insertion Loss (Max.) dB/100m	Propagation Delay (Max.) ns/100m	Delay Skew (Max.) ns/100m	NEXT (Min.) dB	PS NEXT (Min.) dB	ELNEXT (Min.) dB/100m	PSELNEXT (Min.) dB/100m
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112202-053 U/UTP CAT6 4PR 23AWG PVC ...305M
Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery Time	Normally 25 days after received the deposit
Brand	HELLOSIGNAL® OR OEM

CAT6 Cable Applications

Supports 10 Gbps with frequencies up to 250 MHz
10GBASE-T/POE/VOIP applications
Computers and Laptops/Televisions/WiFi access points
Network enabled appliances/Telephones

Manufacturer Information

Professional U/UTP CAT6 Indoor LAN Cable Manufacturer from China

Zion Communication is a top manufacturer and exporter of U/UTP CAT6 indoor PVC jacket cables
Extensive experience in manufacturing for export and problem-solving
Focuses on customer needs: provides competitive signal & low voltage power transmission products
Advanced production equipment and skilled workforce
Management and international sales teams committed to customer satisfaction

Competitive Advantages

Quality Control: Comprehensive checks from raw materials to final products
R&D Focus: Reinforcing and developing element technologies to support customer growth
Customer Service: 24/7 support with effective communication
Product Range: Over 1000 kinds of cables, connectors, and assemblies
Timely Delivery: Professional organization and prompt service

Packaging
