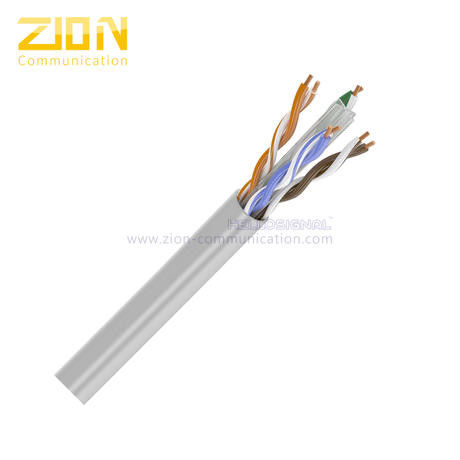

U/UTP CAT6 Ethernet Cable with 23AWG Copper Conductor CPR Certified Indoor PVC Jacket for LAN Networks

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112202

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PVC	Color:	Gray/Blue/Yellow/Green/more
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	PVC Jacket CAT6 Ethernet Cable , CPR Certified CAT6 Ethernet Cable , 23AWG CAT6 Ethernet Cable

Product Description

U/UTP CAT6 BC PVC CPR Certified Ethernet Cable

High-performance Category 6 network cable featuring 23AWG solid bare copper conductors, PVC jacket, and comprehensive international certifications including CPR compliance.

Product Specifications

Construction Details

Component	Specification
Conductor	0.57±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.02±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
RipCord	Cotton or Fibre
Outer Jacket	6.3±0.3 mm PVC

Note: Conductors from 0.53mm-0.57mm all pass Fluke test, with 0.57mm providing greater headroom.

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

Parameter	Value
DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1-100 MHz: 100±15 Ohms 100-250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Property	Value
Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Tested at 100M, 20±2℃ conditions

Freq (MHz)	RL (Min.) dB	Insertion Loss (Max.) dB/100m	Propagation Delay (Max.) ns/100m	Delay Skew (Max.) ns/100m	NEXT (Min.) dB	PS NEXT (Min.) dB	ELNEXT (Min.) dB/100m	PSELNEXT (Min.) dB/100m
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

Order Information

Item	Details
Marking	HELLOSIGNAL NO.7112202 U/UTP CAT6 4PR 23AWG PVC ...305M
Inner Package	305m/Spool, 305m/Reel (or per customer's request)
Outer Package	Color Box, Pallet (or per customer's request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM

Applications & Features

CAT6 cable meets stringent specifications for crosstalk and system noise, supporting frequencies up to 250 MHz compared to 100 MHz for Cat 5e.

Key Applications

Supports 10 Gbps Ethernet
10GBASE-T/POE/VOIP Systems
Computers, Laptops, and Network Devices
Televisions and WiFi Access Points
Network-enabled Appliances and Telephones

Standard Connectors

RJ-45 connectors are standard for CAT6 cable assemblies, compatible with 99% of network devices.

Manufacturing Excellence

Zion Communication is a leading manufacturer of U/UTP CAT6 indoor PVC jacket cables with extensive export experience and customer-focused solutions.

Quality Assurance

Comprehensive incoming material inspection
Rigorous manufacturing process control
Daily/weekly/monthly worker training
Work instructions at each workstation
5S system implementation
Structured machine maintenance procedures
Multi-stage quality control and final inspection

Competitive Advantages

Advanced R&D focusing on customer growth
24/7 customer support and communication
Professional and prompt inquiry response
Over 1000 cable, connector, and assembly products
Reliable on-time delivery

Packaging
