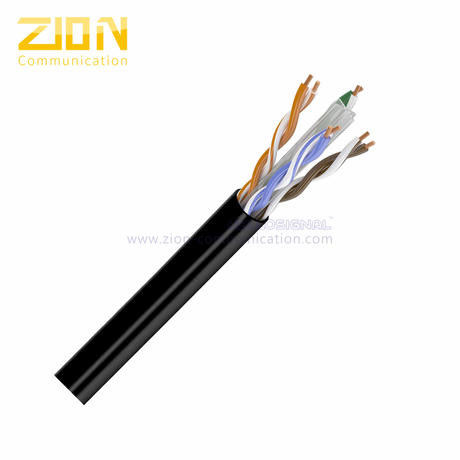

U/UTP CAT6 Ethernet Cable with 23AWG Copper Conductor PE Jacket and CPR Certification for High-Speed Networking

Basic Information

Place of Origin:	China
Brand Name:	OEM or HELLOSIGNAL
Certification:	CE, RoHS, CPR,ETL, UL
Model Number:	7112201

Minimum Order Quantity:	30.5 KM
Packaging Details:	305M/Pull Box, 305M/Wooden Spool, 500M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	Solid Bare Copper	Insulation:	HDPE
Jacket:	PE	Color:	Black
Package:	305M/Pull Box, 500M/Wooden Drum	Logo:	OEM
Highlight:	23AWG Category 6 Ethernet Cable , PE Jacket CAT6 Network Cable , HDPE Category 6 Ethernet Cable

Product Description

U/UTP CAT6 BC PE 23AWG Copper Conductor HDPE Category 6 Ethernet Cable PE Jacket CPR NO7112201

U/UTP CAT 6 Solid 0.57mm/23AWG Copper Conductor, Outdoor PE Jacket Network Cable, CPR Certified, 7112201

Construction

Conductor:	0.57±0.005mm Solid Bare Copper
Pairs:	4 Pairs
Insulation:	1.02±0.05 mm HDPE
Insulation Colors:	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section:	Modified Polyethylene
RipCord:	Cotton or Fibre
Out Jacket:	6.3±0.3 mm PE

※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm

Compliance & Certifications

ISO/IEC 11801-1 Ed.1.0
ANSI/TIA-568-C.2, ANSI/TIA-568.2-D
UL444, UL1581, UL1666, IEC60332-1, EN50399

Electrical Characteristics

DC Resistance	＜9.38 Ohms/100m @20℃
DC Resistance unbalance	5% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1 - 100 MHz: 100±15 Ohms 100 - 250 MHz: 100±20 Ohms
Max Frequency	250MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	63%
Delay Skew	≤ 45ns/100m

Physical Properties

Pulling Tension (Max)	≥13.5Mpa
Bend Radius (Min)	8×OD of Jacket
Operating Temperature	-20 to 80 ℃ (-4 to 167℉)

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PS NEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.0	570.0	45.0	74.0	72.0	67.8	64.8
4	23.0	3.8	552.0	45.0	65.0	63.0	55.7	52.7
10	25.0	6.0	545.0	45.0	59.0	57.0	47.8	44.8
16	25.0	7.6	543.0	45.0	56.0	54.0	43.7	40.7
20	25.0	8.5	542.0	45.0	55.0	53.0	41.7	38.7
31.25	23.6	10.7	540.0	45.0	52.0	50.0	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.0	45.0	31.8	28.8
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.7	37.7	21.7	18.7
250	17.3	32.8	536.0	45.0	38.0	36.0	19.8	16.8

※ Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking:	HELLOSIGNAL NO.7112201 U/UTP CAT6 4PR 23AWG PE ...305M(1000FT) (or Per customer's request)
Inner Package:	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package:	Color Box, Pallet (or Per customer's request)
Delivery time:	Normally 25 days after received the deposit.
Brand:	HELLOSIGNAL® OR OEM

CAT6 Cable Applications

Supports 10 Gbps with frequencies up to 250 MHz
10GBASE-T/POE/VOIP
Computers and Laptops/Televisions/WiFi access points/Network enabled appliances/Telephones

Manufacturing Excellence

Zion Communication is a leading manufacturer and exporter of U/UTP CAT6 outdoor PE jacket cables with extensive experience in manufacturing for export markets.

Quality Control Process

Incoming material inspection by QC
Manufacturing Process Control
Daily/weekly/monthly worker training
Work instructions manual at each workstation
5S system implementation
Machine maintenance procedures
Comprehensive quality control and final inspection
