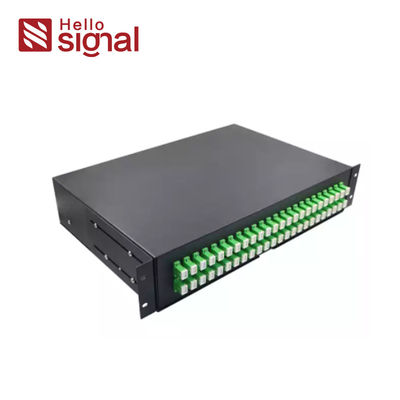

1U/2U/3U 19 Inch Rack Mountable Fiber Optic Patch Panel with CRS Cold Rolled Steel and Slide Rail Installation

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Optical System Equipment

Minimum Order Quantity:	50 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T,L/C
Supply Ability:	10,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Fiber Optic Patch Panel	Material:	CRS Cold Rolled Steel
Enclosure Type:	19″ Rack Mountable	Installation:	Standard EIA 19″ Rack
Compliant:	TIA/EIA-568-C.3	Delivery Time:	Normally 25 Days After Received The Deposit.
Highlight:	UL GPON ONU Modem Fiber Optic , 622GM GPON ONU Modem Fiber Optic , 1GE GPON ONU Modem Fiber Optic

Product Description

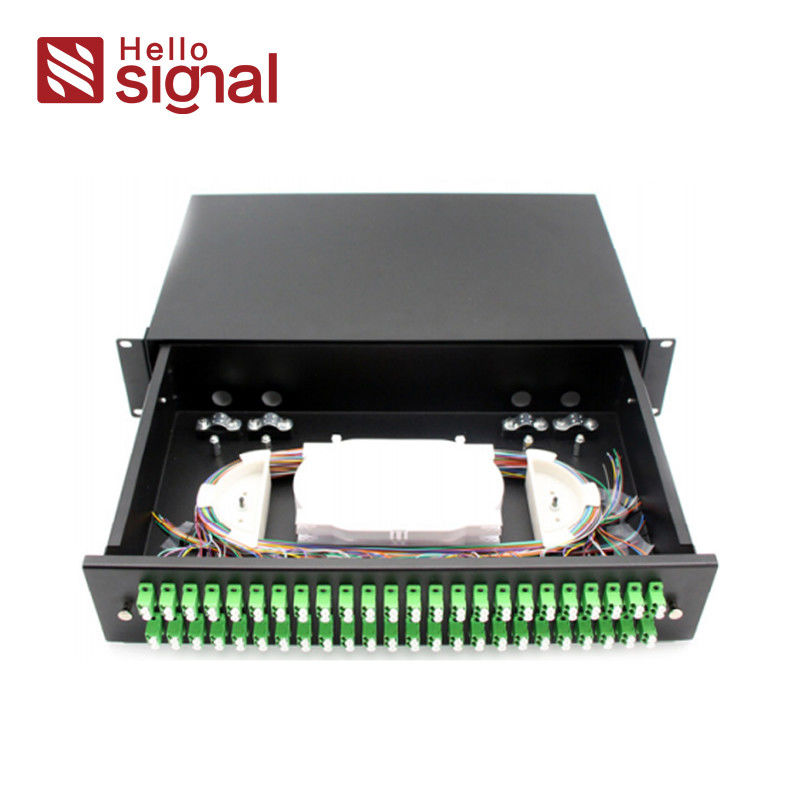

1U/2U/3U 19 Inch Empty/Full Loaded Slide Rail Fiber Optic Patch Panel

Fiber Optic Patch Panel Solutions

Comprehensive optical network frame management system designed for FTTX projects, data processing centers, cable television (CATV) networks, and various fiber optic system applications.

Key Features

Standard 19-inch rack size with lightweight, rational structure design
Constructed from cold-rolling steel with static spreading-plastic coating
Compact dimensions with exquisite craftsmanship for easy operation
Compatible with both ribbon and single fiber configurations
Integrated pothook for convenient installation and dismantling
Multiple panel plates available to accommodate different adapter interfaces
Space-saving compact design optimized for high-density installations
Streamlined management and operation capabilities
Unique structural design with rational layout and ample operational space
Excellent seal performance on indoor models for effective water protection

Product Specifications

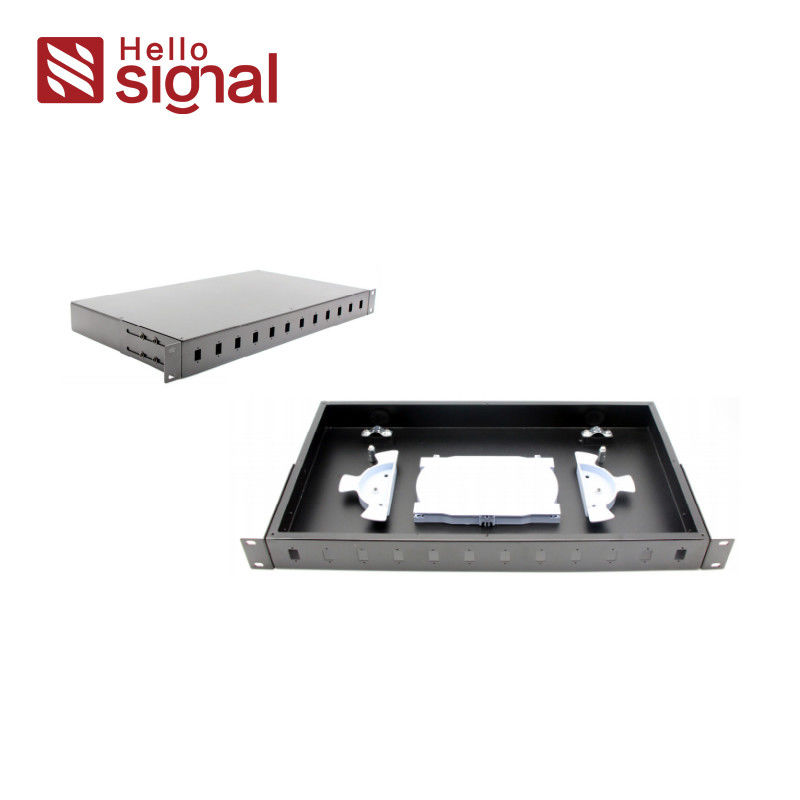

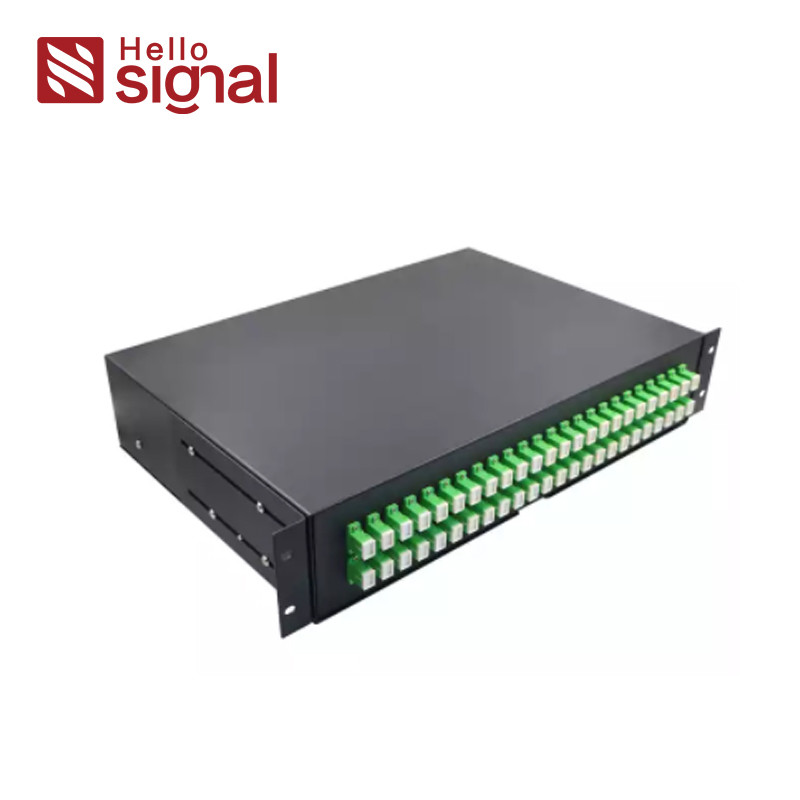

	1U 19 Inch Empty Fixed Rack Mount Fiber Patch Panel (7244201)		2U 19 Inch Slide Rail Rack Mount Patch Panel (7244206)

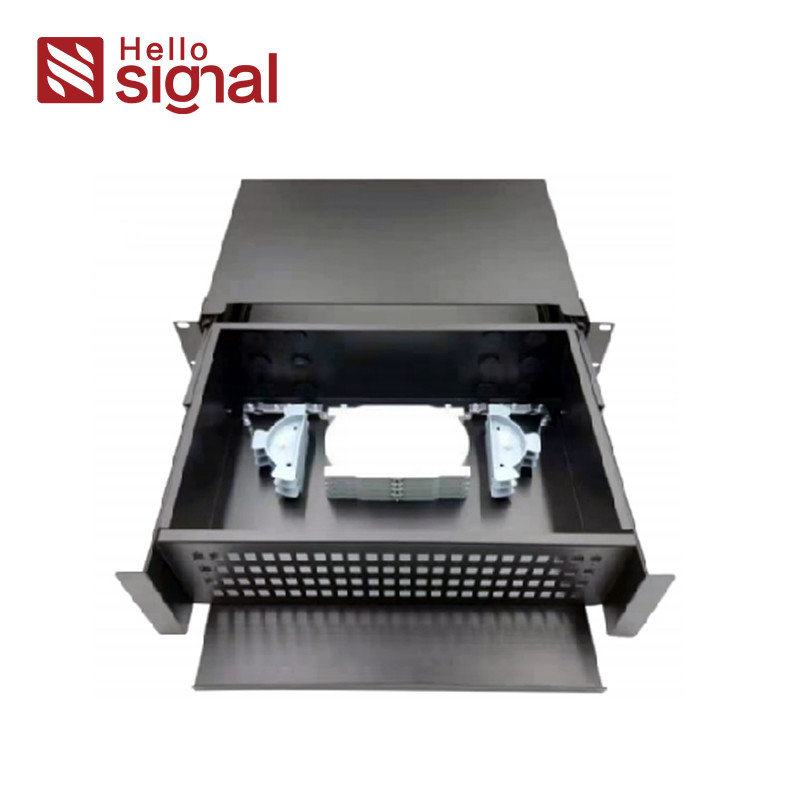

	2U 19 Inch Empty Fixed Rack mount Fiber Patch Panel (7244202)		3U 19 Inch Empty Slide Rail Rack Mount Patch Panel (7244207)

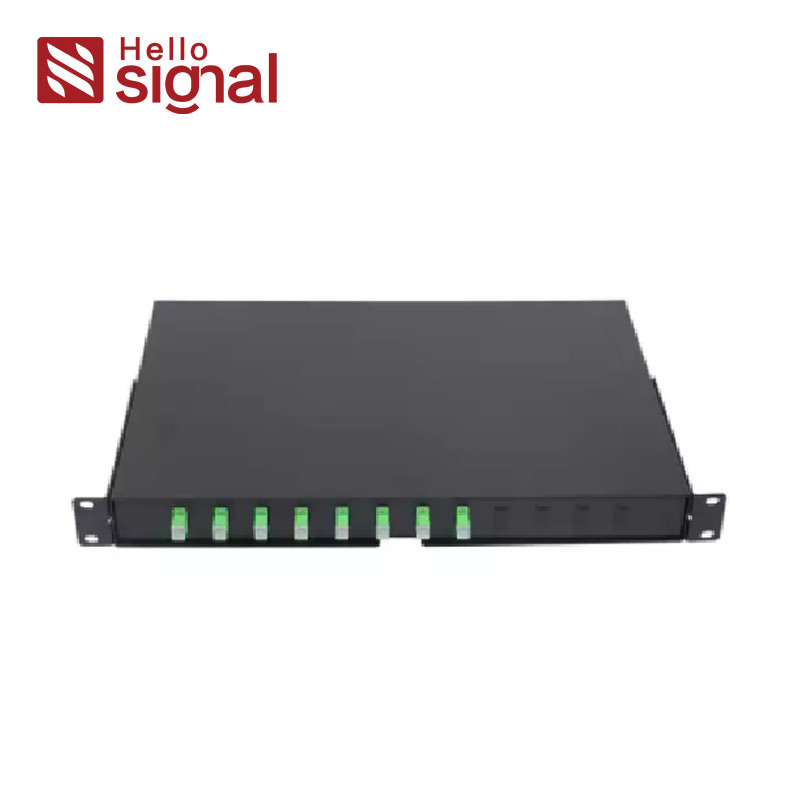

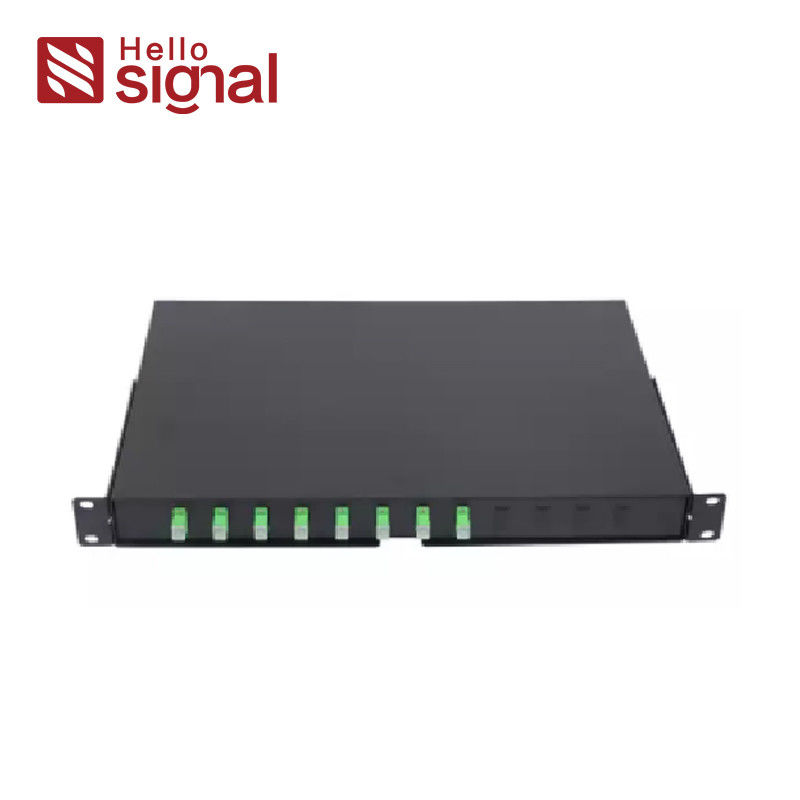

	1U 19 Inch Fixed Rack Mount Fiber Patch Panel (7244203)		1U 19 Inch Full Loaded Slide Rail Rack Mount Patch Panel (7244208)

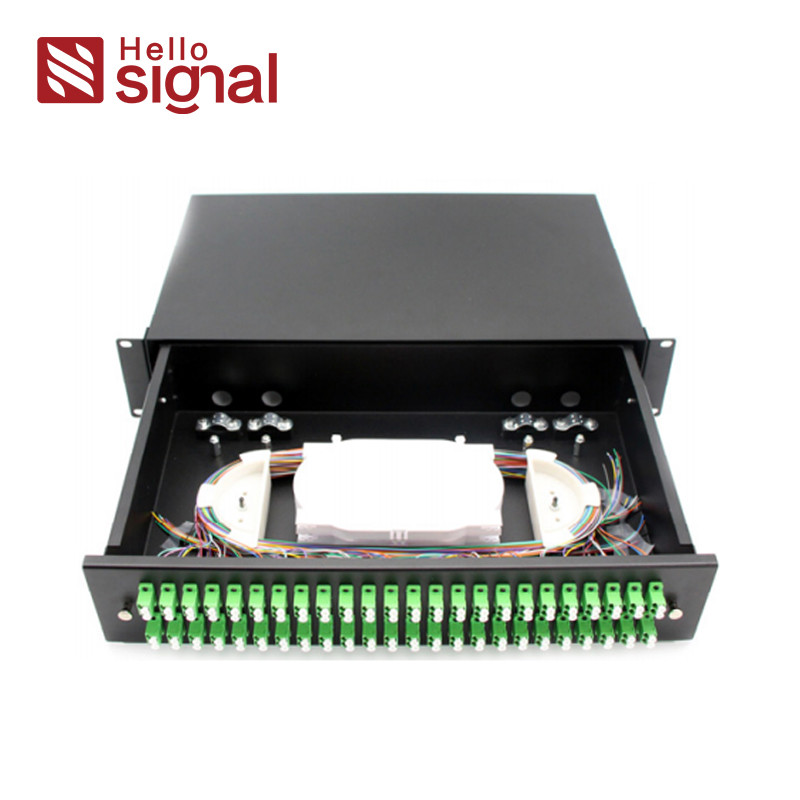

	2U 19 Inch Full Loaded Fixed Rack Mount Fiber Patch Panel (7244204)		2U 19 Inch Full Loaded Slide Rail Rack Mount Patch Panel (7244209)
	1U 19 Inch Empty Slide Rail Rack Mount Patch Panel (7244205)		3U 19 Inch Full Loaded Slide Rail Rack Mount Patch Panel (7244210)
