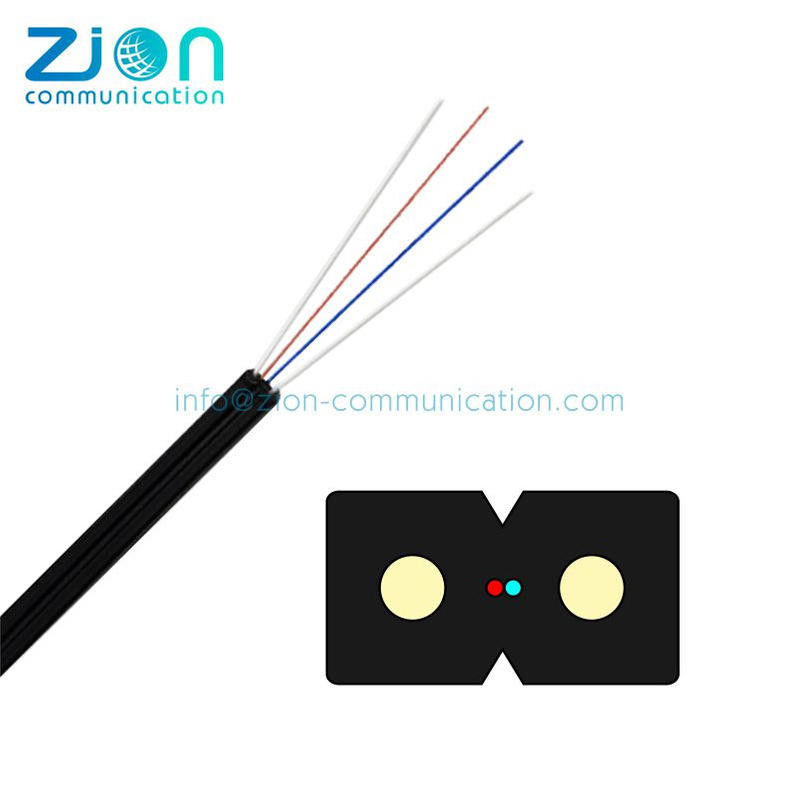

FTTH Drop Cable with FRP or Steel Wire Strength Member and LSZH Sheath for High Crush Resistance

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	FTTH Drop Cable

Minimum Order Quantity:	10km
Packaging Details:	1000M or 2000M / Wooden Drum
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C
Supply Ability:	600KM / Month

Get Best Price Contact Now

Detail Information

Model:	FTTH Drop Cable	GJXFH:	FRP Strength Member+2.0*3.0LSZH
GJXH:	Steel Wire Strength Member+2.0*3.0 LSZH	GJX(F)DH:	Ribbon Fibers+2.0*4.0LSZH
GJYX(F)CH:	Self-Supporting Wires+2.0*5.2LSZH	GYFJU:	Aramid Yarn Strength Round Sheath LSZH
Highlight:	Wireless Router ONU And OLT , 100Mbps Fiber Optic ONU , FTTH GPON Optical Network Unit

Product Description

FTTH Drop Cable Products

Image	Product Name	Inquiry
	GJXFH FRP Strength Member 2.0*3.0 LSZH Flat-Type Drop Cable	Inquire
	GJXH Steel Wire Strength Member 2.0*3.0 LSZH Bow-type Drop Cable	Inquire
	GJXH Small Size Steel Wire Strength Member 1.6*2.0 LSZH Bow-type Drop Cable	Inquire
	GJXFDH / GJXDH Ribbon Fibers 2.0*4.0 LSZH Drop Cable	Inquire
	GJYXFCH / GJYXCH Self-Supporting Wires 2.0*5.2 LSZH Drop Cable	Inquire
	GJYXFCH(GJYXCH)-Small Self-Supporting Wires 1.7*3.8 LSZH Drop cable	Inquire
	GJYXFDCH / GJYXDCH Self-supporting Ribbon Fibers Drop cable	Inquire
	GYFJU Aramid Yarn Strength Round Sheath LSZH Drop cable	Inquire
	GYGXY Uni-tube Non-metallic Glass Yarns Tapes Armored HDPE Sheath Drop cable	Inquire
	FDC Central Tube 3.0*6.0 LSZH Flat Drop Cable	Inquire
	ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable	Inquire
	GYXY-8S Figure-8 Self-supporting Aramid Yarns Tubes Drop Cable	Inquire
	GYFXBY Flat-shape & Self-supporting Uni-tube Fiber Optic Cable	Inquire

Flat Type Drop Cable

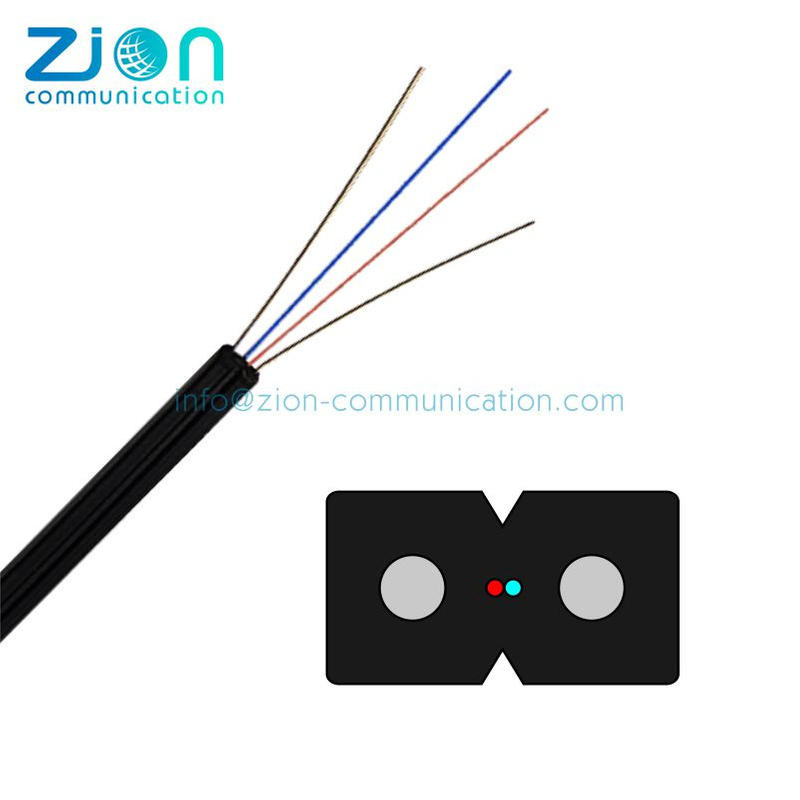

Flat drop cable features a flat exterior design and typically consists of a polyethylene jacket, multiple fibers, and two dielectric strength members that provide high crush resistance. While fiber drop cables commonly contain one or two fibers, options with up to 12 or more fibers are now available. The diagram above illustrates the cross-section of a flat drop cable with two fibers.

Figure-8 Aerial Drop Cable

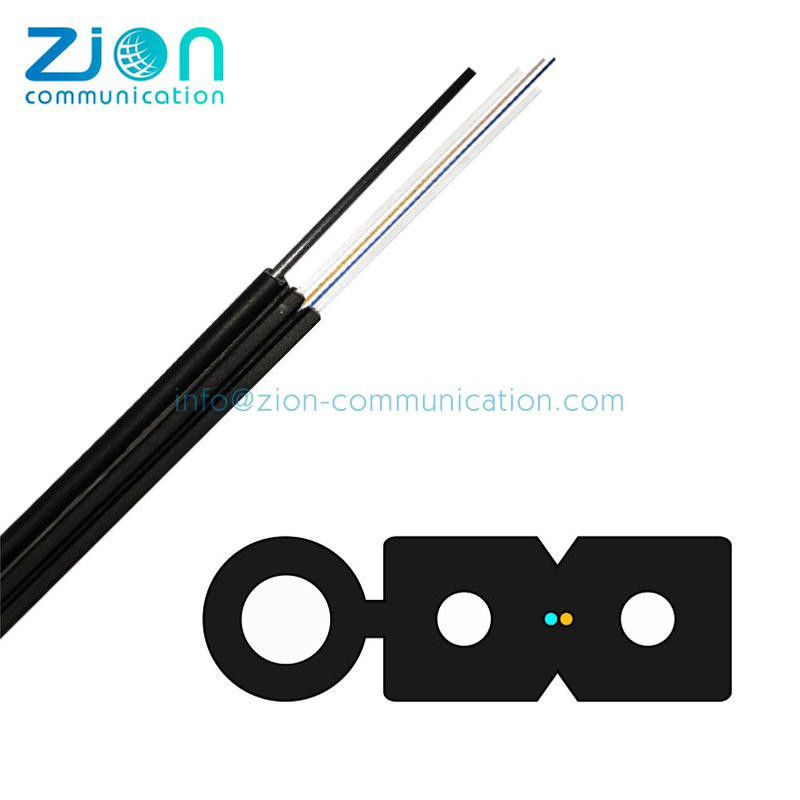

Figure-8 aerial drop cable is a self-supporting design with the cable attached to a steel wire, engineered for simple and cost-effective aerial installation in outdoor applications. This fiber drop cable is secured to a steel wire as shown in the diagram. Typical fiber counts range from 2 to 48, with a tensile load capacity of typically 6000 Newtons.
