Home > Products> Optical Fiber System> IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing

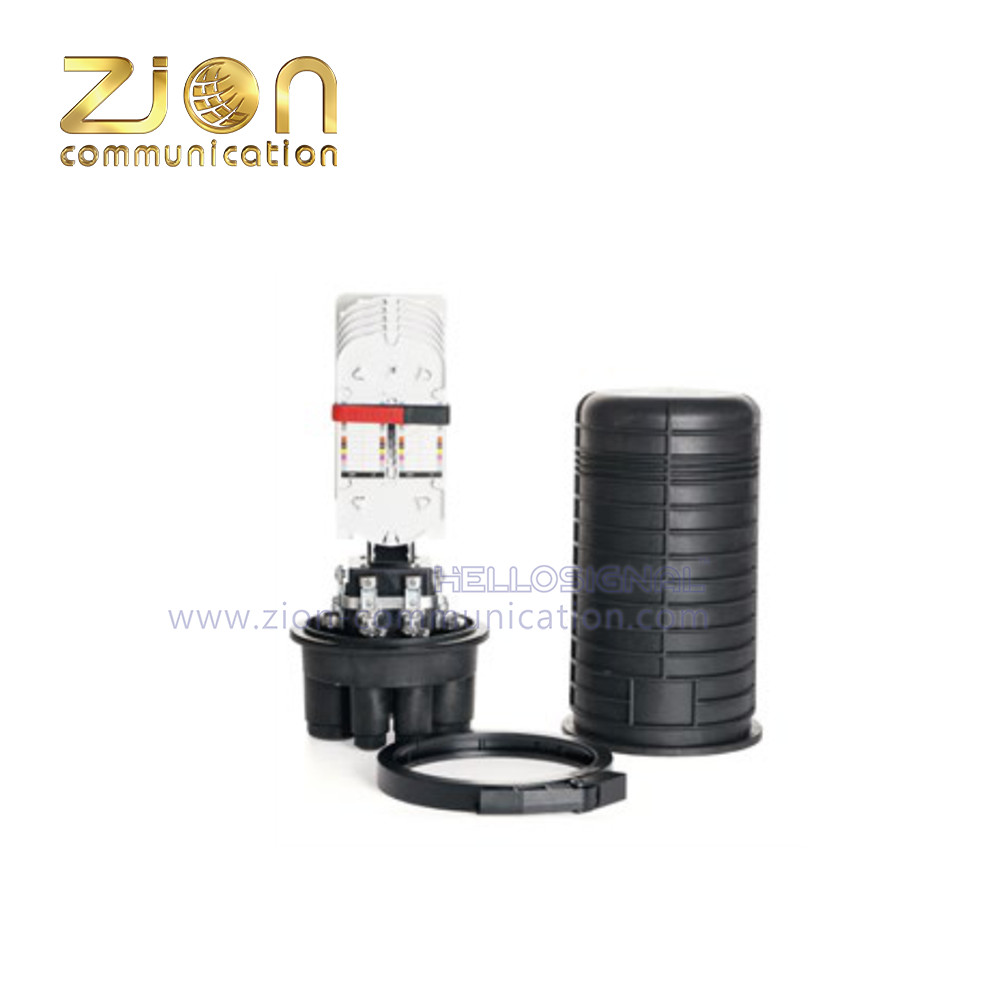

IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing

IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Optical System Equipment
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T,L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Model: Fibre Splice Enclosures Bnad: HELLOSIGNAL
Cord: ZCSC-S048/96/120
Highlight:

IP68 Fiber Optic Splice Closure

,

48/96/120 Cores Fiber Splice Enclosure

,

Heat-shrink Seal Optical Splice Closure

Product Description

Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Inquire Now
OPTIC SPLICE CLOSURE -- ZCSC-S048/096/120
ZCSC-S048-1
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 0 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 1 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 2
Technical SpecificationValue
Max Capacity48F
Inlets/Outlets2/2
MaterialPP/PC
Accessible Cable DiameterRound:Φ16mm
Max Splice Trays4*12F
Protection RateIP68
Dimension (mm)300*Φ118
Cable Port SealingScrew Mechanical
ZCSC-S048-2
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 3 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 4
Technical SpecificationValue
Max Capacity48F
Inlets/Outlets2/4
MaterialPP
Type of PLC1:16 Micro PLC
Max Splice Trays4*12F
Protection RateIP68
Dimension (mm)400*Φ260
Cable Port SealingScrew Mechanical/Heat Shrinkable
ZCSC-S096-01
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 5 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 6 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 7
Technical SpecificationValue
Max Capacity96F
Inlets/Outlets1/3
MaterialPP/PC
Accessible Cable DiameterOval:Φ26mm;Round:Φ21mm
Max Splice Trays4*24F
Protection RateIP68
Dimension (mm)410*Φ135
Cable Port SealingHeat Shrinkable
ZCSC-S120-01
IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 8 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 9 IP68 Protected Fiber Optic Splice Closure with 48/96/120 Cores and Heat-shrink Seal for Secure Fiber Splicing 10
Technical SpecificationValue
Max Capacity120F
Inlets/Outlets1/4
MaterialPP
Type of PLC1*1:32/2*1:16 Micro PLC
Max Splice Trays5*24F
Protection RateIP68
Dimension (mm)480*Φ260
Cable Port SealingScrew Mechanical/Heat Shrinkable
