| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Optical System Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Fiber Optica Terminal Box | Bnad: | HELLOSIGNAL |
|---|---|---|---|
| Cord: | ZCOTB-08A | Capacity: | 8 Cores |
| Material: | PC+ABS/ABS | Dimension, W*H*D(mm): | 210*126*50 |
| Inlets/Outlets: | 1/8 |
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

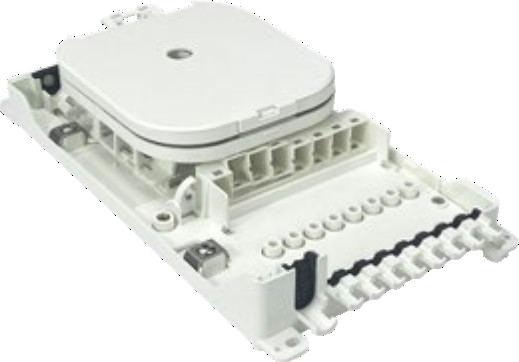

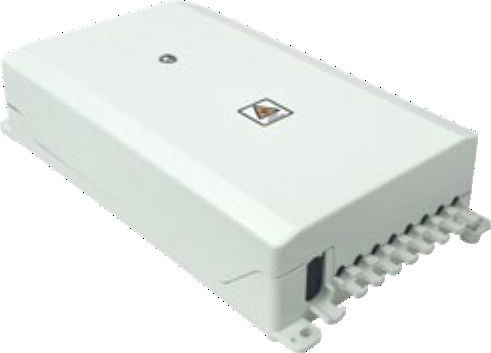

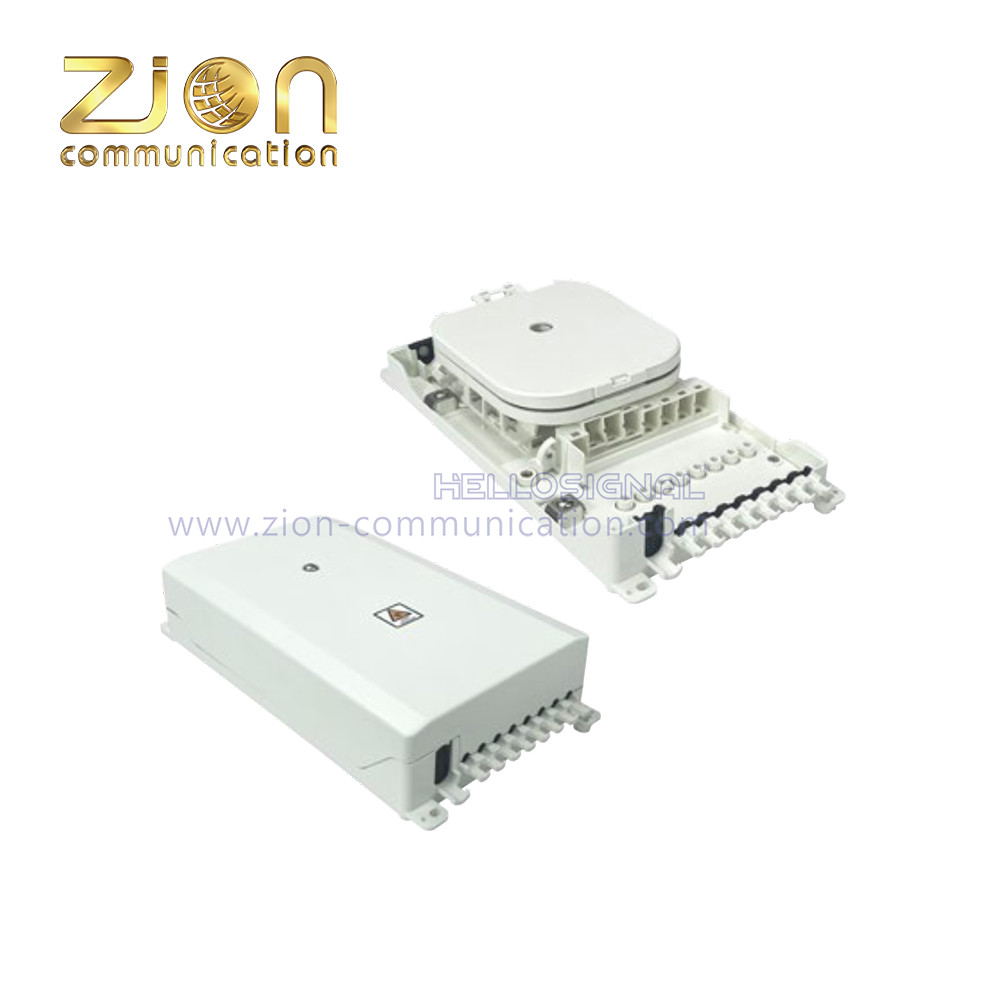

| Fiber Terminal Box — ZCOTB-08A | |||
| ZCOTB-08A | |||
|
|
|
|
|
| Technical Specifcation | |||
| Capacity | 8 cores | Accessible Cable Diameter | Φ7-Φ10mm |
| Material | PC+ABS/ABS | Protection Level | IP5X |
| Dimension, W*H*D(mm) | 210*126*50 | Input Cable Method | Cutting |
| Inlets/Outlets | 1/8 | ||
| Fiber Optic Rosette | ||
|
|
|
| ZCOTB-01A | ZCOTB-01B | ZCOTB-01C |
|
|
|
|
| ZCOTB-01D | ZCOTB-01E | ZCOTB-02B |
|
|
|
| ZCOTB-04A | ZCOTB-04A-1 | ZCOTB-06A-1 |
