| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Optical System Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Fiber Optica Terminal Box | Bnad: | HELLOSIGNAL |
|---|---|---|---|
| Cord: | ZCFTB-08/12 | Capacity: | 8/12 Cores |
| Material: | ABS/PC+ABS | PLC Splitter: | Tube & Module Type |
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

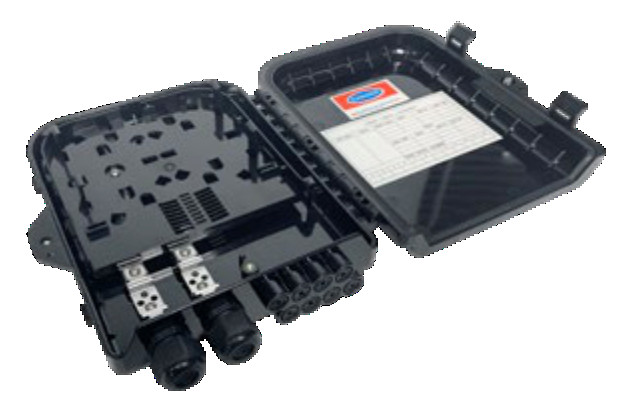

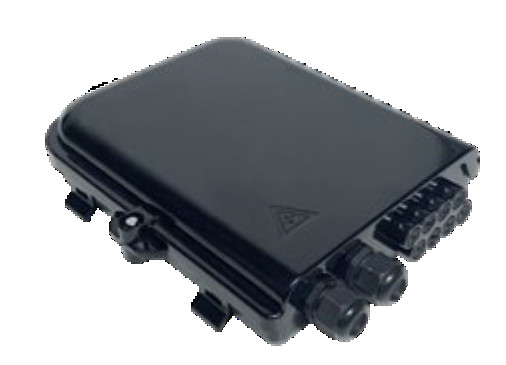

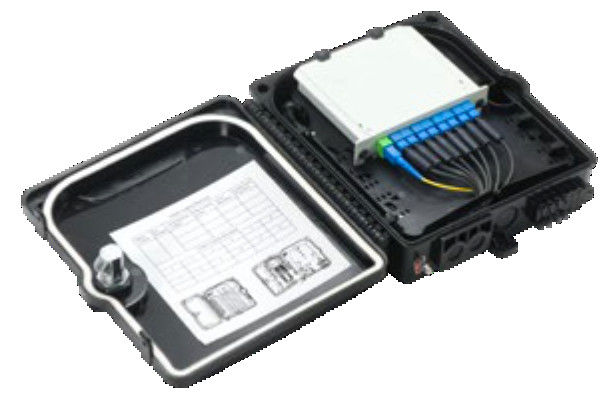

| Fiber Terminal Box — ZCFTB-08/12 | |||
| ZCFTB-08H | |||
|
|||
| Technical Specifcation | |||
| Capacity | 8 cores | Accessible Cable Diameter | Φ8-Φ12mm |
| Material | ABS/PC+ABS | Protection Level | IP55 |
| Dimension, W*H*D(mm) | 249*203*53 | Input Cable Method | Cutting |
| Inlets/Outlets | 2/8 | PLC Splitter | Tube & module type |
| ZCFTB-12B-1/08B-1 | |||
|
|||
| Technical Specifcation | |||
| Capacity | 12 cores | Accessible Cable Diameter | Φ7-Φ15mm |
| Material | ABS/PC+ABS | Protection Level | IP55 |
| Dimension, W*H*D(mm) | 230*215*65 | Input Cable Method | Uncutting |
| Inlets/Outlets | 2/12 | PLC Splitter | Tube & module type |
