FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier

FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier
FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Optical Splitter
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Model: FBT Splitter Bnad: HELLOSIGNAL
Cord: Mini Tube Connector: SC/FC/LC/ST, APC/UPC

Product Description





Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier 0

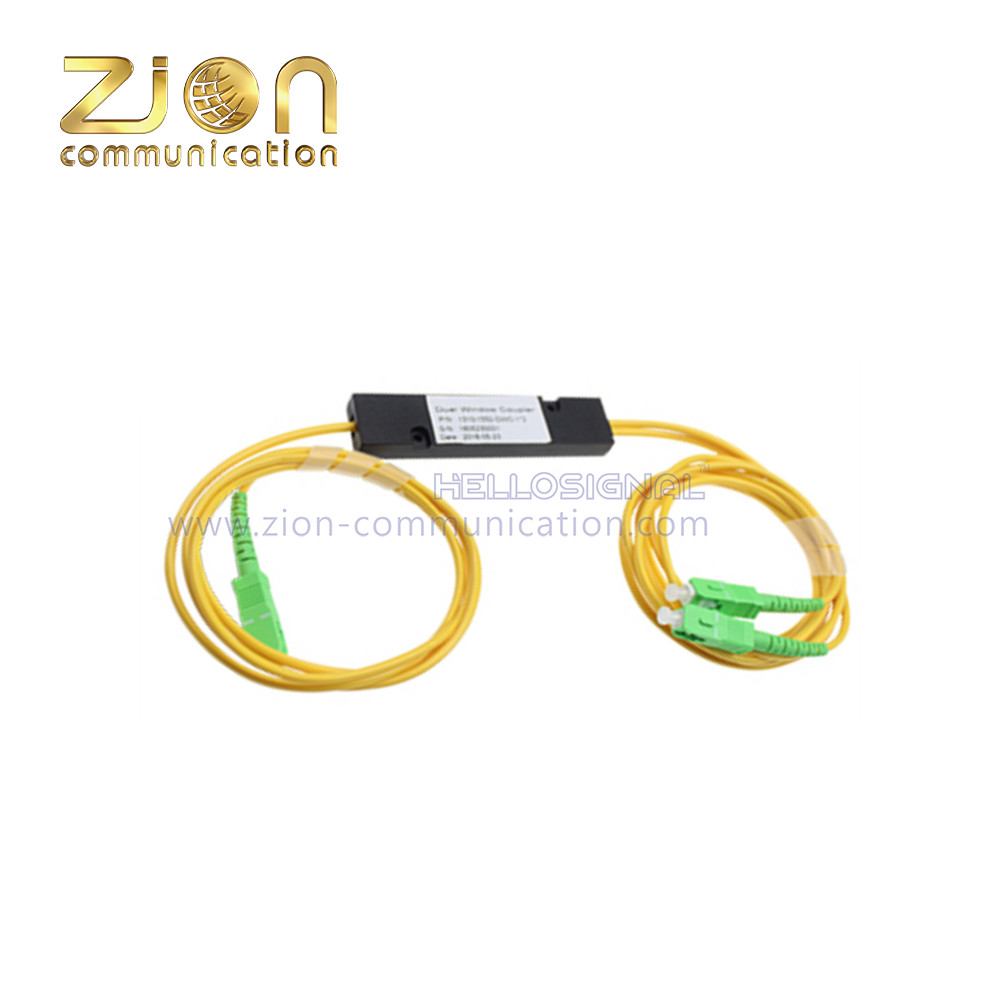

Optical Fiber Splitter — FBT Splitter









FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier 1













FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier 2

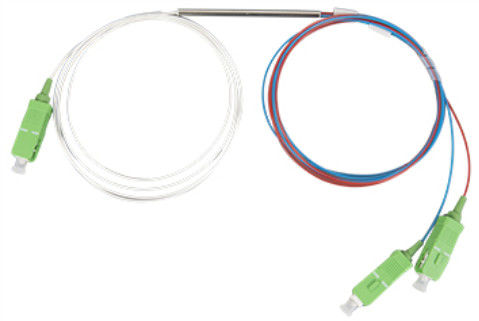

SC/APC Mini Tube FBT Splitter SC/APC Mini Tube FBT Splitter



FBT Fiber Splitter, SC/APC Mini Tube FBT Splitter , with SC/FC/LC/ST Connection from China Supplier 3

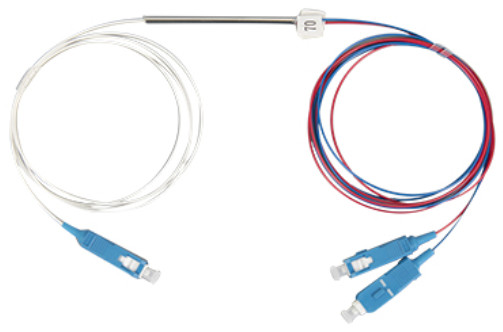

SC/APC Mini Tube FBT Splitter

Structure information
Parameter 1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Operation Wavelength 1260nm~1650nm
L max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2 ≤4.4 ≤11.0 ≤14.3 ≤17.5 ≤21.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8 ≤0.8 ≤1.0 ≤1.5 ≤1.8 ≤3.0
PDL(dB) . ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Return Loss[dB) ≥55
Directivit(dB) ≥55
Storage
Temperature(℃)		 -40~85
Operation
Temperature(℃)		 -40~85


Technical Specifcation


Code Splitter
Configuration 0102 0104 0108 0116 0132 0164 0204 0208 0216 0232 0264
1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Connector Type SC LC FC ST
Ferrule Type UPC APC
Fiber Type SM OM1 OM2 OM3 OM4
Splitter Type T C M
TubeType Cassette Type Module Type
Jacket Material PVC LSZH
Color Yellow Blue Black Orange Aqua Purple Customized
Diameter (mm) 0.9 2.0 3.0 ····
Cable
Length(cm)		 Input 50 70 100 150 ····
Output 50 70 100 150 ····
